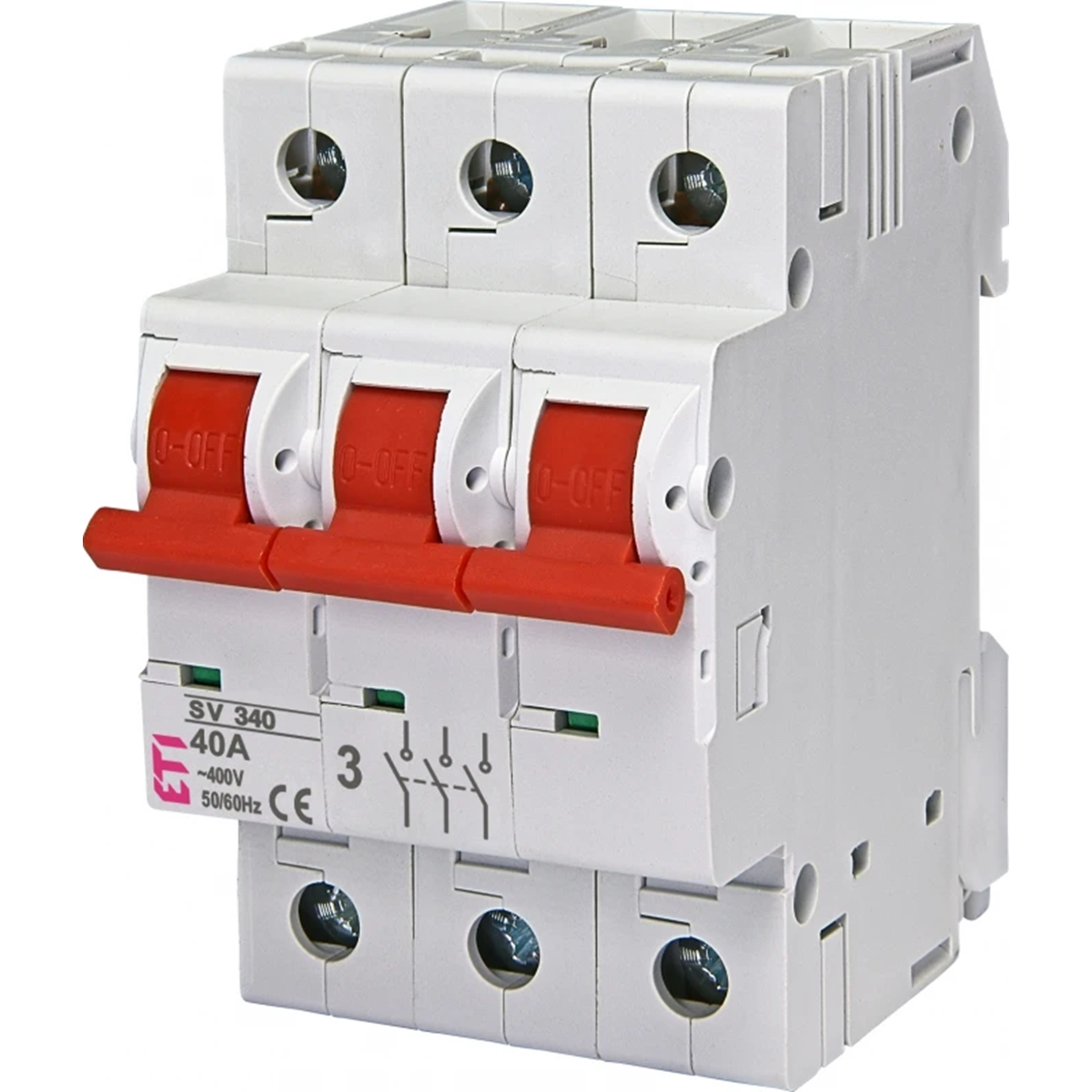

40A SV 340 switch disconnector 002423323

Indeks lokalny:
ALI015ETIP
Nr katalogowy:
002423323
Kod EAN:
3838895321415
Producent: ETI POLAM
Work category: AC-23B
Number of poles: 3
Rated voltage [V]: 400
Cena:
80,01 zł
gross / szt.
(w tym VAT 23%)
285,75 zł gross/kg.
do 2 tygodni
Na zamówienie
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj

Opis produktu

Application - SV switch disconnectors are used as main switches in residential and industrial switchboards, and as individual switches in power installations. They have no built-in overcurrent devices. SV switch-disconnectors can be sealed both in the ON and OFF positions.

Advantages:
→ SV switch disconnectors have a robust and simple design and therefore operate reliably,
→ are equipped with a double disconnection mechanism and a place for attaching a label with the number of the circuit in which they work.

Dane techniczne

  • Work category
    AC-23B
  • Rated voltage [V]
    400
  • Type
    SW 340
  • PKWIU
    27.12.23.0
  • Number of poles
    3
  • Rated current [A]
    40
  • Weight [g]
    280

Pozostałe dane techniczne

  • Version as main switch
    Yes
  • Version as safety switch
    Yes
  • Max. rated operation voltage Ue AC
    400 V
  • Conditioned rated short-circuit current Iq
    2 kA
  • Motor drive optional
    No
  • Voltage release optional
    Yes
  • Suitable for distribution board installation
    Yes
  • Interlockable
    No
  • Degree of protection (IP), front side
    IP20
  • Version as maintenance-/service switch
    Yes
  • Version as emergency stop installation
    Yes
  • Rated permanent current Iu
    40 A
  • Number of poles
    3
  • Motor drive integrated
    No
  • Device construction
    Built-in device fixed built-in technique
  • Type of control element
    Rocker lever
  • Type of electrical connection of main circuit
    Frame clamp

Dane producenta

Opakowania zbiorcze

Rodzaj opakowania Pudełko Pudełko
Ilość 4 szt. 36 szt.
Waga (kg) 1,000 -
Objętość (m3) 0,002 -
Szerokość (m) 0,092 -
Długość (m) 0,220 -
Głębokość (m) 0,078 -
