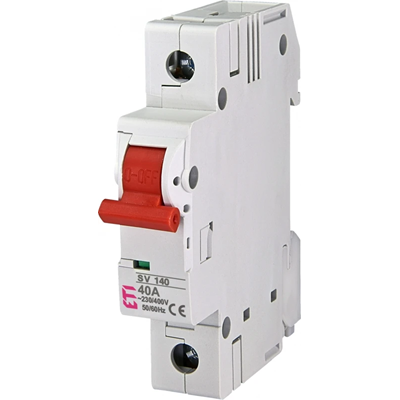

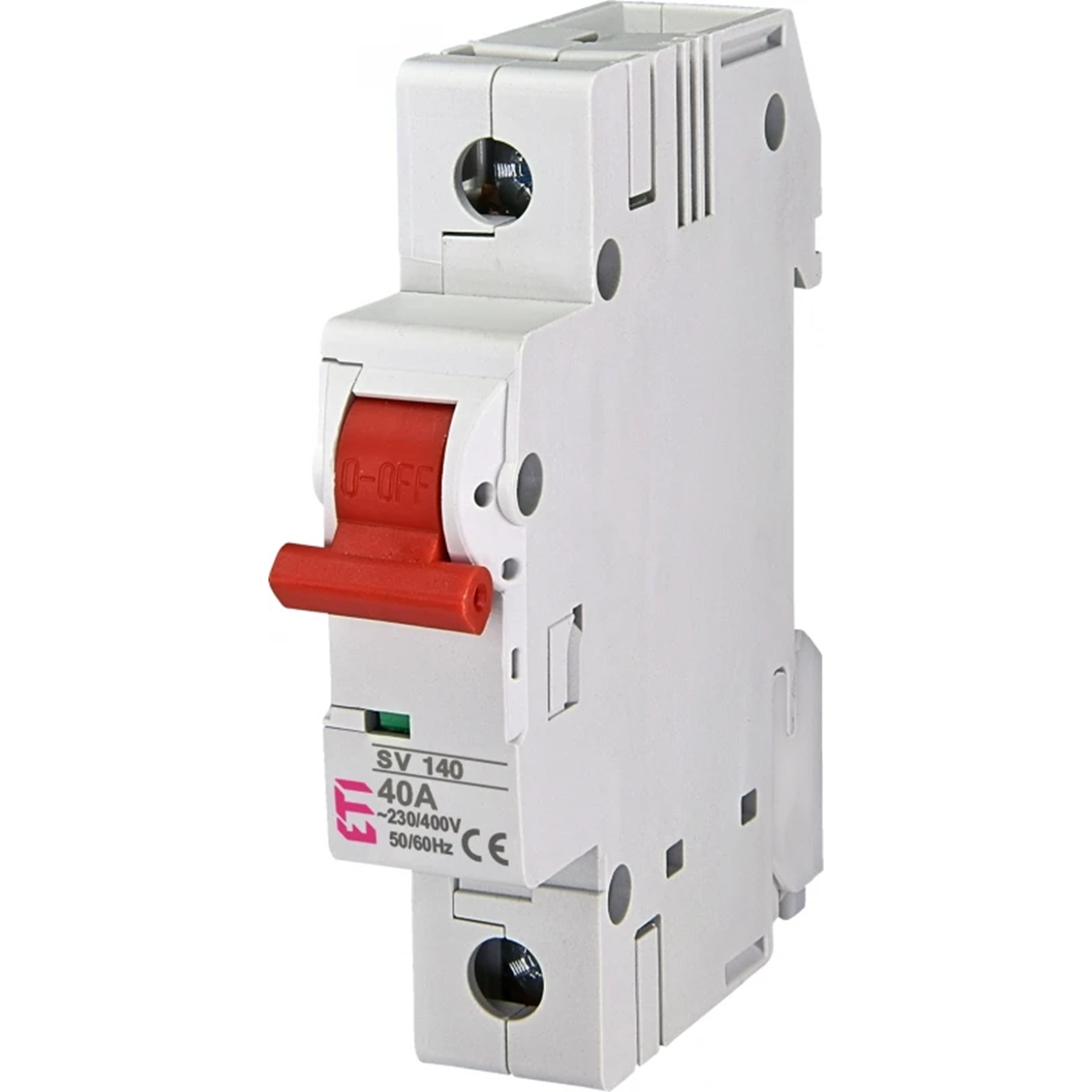

40A SV 140 switch disconnector 002423123

Index local:
ALI003ETIP
Numéro de catalogue:
002423123
Code EAN:
3838895321255
Producteur: ETI POLAM
Work category: AC-23B
Number of poles: 1
Rated voltage [V]: 230
Prix:
38,43 zł
gross / pcs.
(y compris la TVA 23%)
417,72 zł gross/kg.
jusqu'à 2 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

 Application - SV switch disconnectors are used as main switches in residential and industrial switchboards, and as individual switches in power installations. They have no built-in overcurrent devices. SV switch-disconnectors can be sealed both in the ON and OFF positions.

Advantages:
→ SV switch disconnectors have a robust and simple design and therefore operate reliably,
→ are equipped with a double disconnection mechanism and a place for attaching a label with the number of the circuit in which they work.

Données techniques

  • Work category
    AC-23B
  • Rated voltage [V]
    230
  • Type
    SW 140
  • PKWIU
    27.12.23.0
  • Number of poles
    1
  • Rated current [A]
    40
  • Weight [g]
    92

Autres données techniques

  • Version as main switch
    Yes
  • Version as safety switch
    Yes
  • Max. rated operation voltage Ue AC
    230 V
  • Conditioned rated short-circuit current Iq
    2 kA
  • Motor drive optional
    No
  • Voltage release optional
    Yes
  • Suitable for distribution board installation
    Yes
  • Interlockable
    No
  • Degree of protection (IP), front side
    IP20
  • Version as maintenance-/service switch
    Yes
  • Version as emergency stop installation
    Yes
  • Rated permanent current Iu
    40 A
  • Number of poles
    1
  • Motor drive integrated
    No
  • Device construction
    Built-in device fixed built-in technique
  • Type of control element
    Rocker lever
  • Type of electrical connection of main circuit
    Frame clamp

Détails du fabricant

Emballage en vrac

Une sorte de paquet Pudełko Pudełko
Quantité 12 pcs. 108 pcs.
poids (kg) 1,000 -
Volume (m3) 0,002 -
Largeur (m) 0,092 -
Longueur (m) 0,220 -
Profondeur (m) 0,078 -
