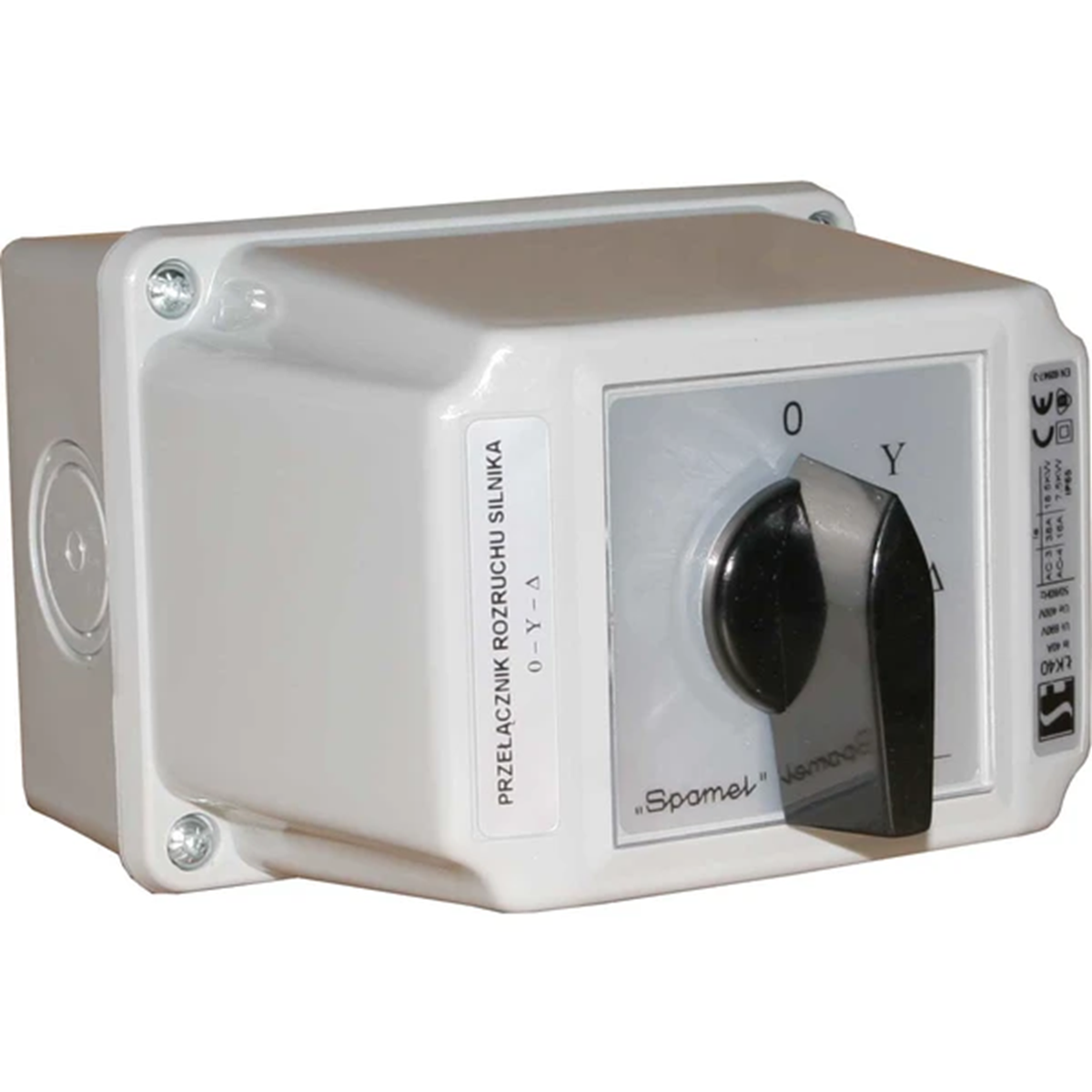

40A star-delta 3-position cam switch, in housing ŁK40-4.831\OB3

Místní index:
ALK024SPAM
Katalogové číslo.:
ŁK40-4.831\OB3
EAN kód:
5907723000711
Výrobce: SPAMEL
Color: Black
Continuous current [A]: 40
Level of security: IP65
Cena:
58,77 €
gross / kusů.
(včetně DPH 23%)
Dodání do 3 hodin
do 2 týdnů (pracovní dny)
Vyzvednutí za 1h
Množství kusů.
(vícenásobné:
1
)
Přidat do schránky
Vytisknout

Popis produktu

Cam switches are electric rotary multi-circuit switches adapted to switch on and off currents. Cam switches are used in the circuits of low voltage electrical installations, especially as circuit breakers, disconnectors, switches and control switches. Cam switches can be installed indoors (pollution degree 3 - industrial use) at -40...+70°C.

Technické údaje

  • Color
    Black
  • Level of security
    IP65
  • Accurate color
    Black
  • Continuous current [A]
    40
  • Rated operational power at AC-3, 400 V [kW]
    12

Další technické údaje

  • Model
    Reverser
  • With zero (off) position
    Yes
  • Rated permanent current Iu
    40 A
  • Degree of protection (IP), front side
    IP65
  • Number of auxiliary contacts as normally open contact
    0
  • Suitable for floor mounting
    Yes
  • Suitable for distribution board installation
    No
  • Complete device in housing
    Yes
  • Type of control element
    Turn button
  • Number of poles
    3
  • With retraction in 0-position
    No
  • Rated operation power at AC-3, 400 V
    20 kW
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Suitable for front mounting
    No
  • Suitable for intermediate mounting
    No
  • Housing material
    Plastic
  • Type of electrical connection of main circuit
    Screw connection
