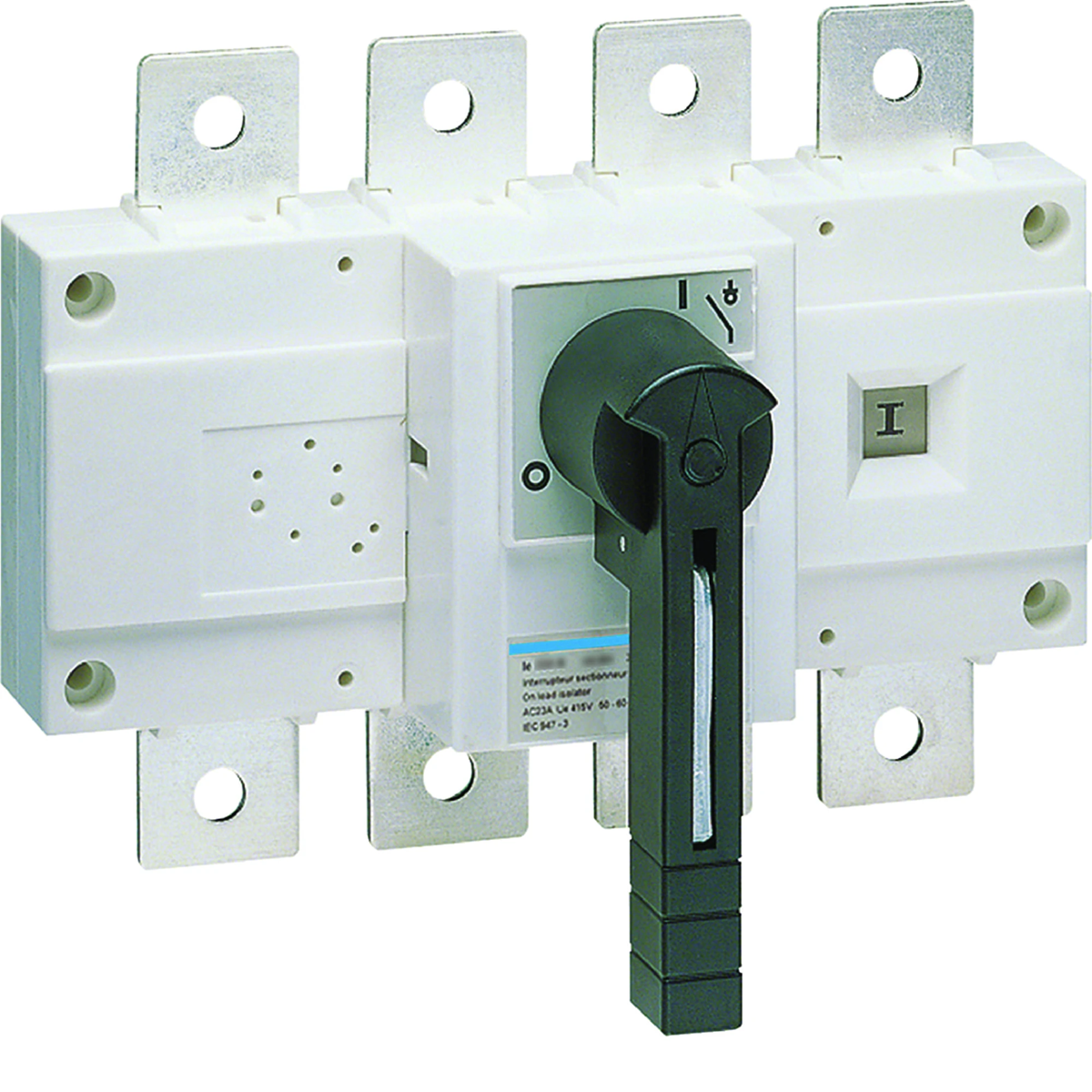

400A four-pole load switch HA457

local index:
ALM057HAGE
Catalog No:
HA457
EAN code:
3250613114572
Manufacturer: HAGER
Number of poles: 4
Rated insulation voltage [V]: 1000
Rated current [A]: 400
Price:
607,39 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Isolating Load Switch. It is perfectly adapted to meet current requirements resulting from everyday electrical installation practice.

Current:

  • Current carrying capacity of AC21 in category A: 400 A
  • Rated operational current (AC23), category A: 400 A
  • Current carrying capacity AC21 category B: 400 A
  • Allowable current load AC22 category A : 400 A
  • Allowable current load AC22 category B: 400 A
  • Rated operational current (AC23), category B: 400 A
  • Conventional short-circuit current: 30 kA
  • Short-circuit current with gI-gG fuses: 50 kA
  • Rated short-time withstand current Icw: 9 kA
  • Rated short-time withstand current 1s: 9 kA

Power:

  • Power supply below 440/500V 50Hz: 140 kW
  • Power rating below 660V, 50 Hz.: 90 kW
  • Active power below 380/415 V, 50 Hz: 132 kW
  • Rated switching power for rated voltage 400V for AC1: 263 kW
  • < li> Total power loss at rated current: 57.6 W
  • Power loss per pole at rated current: 14.4 W

Technical data

  • Number of poles
    4
  • Rated current [A]
    400
  • power loss [W]
    57.6
  • Connection type
    Vice
  • Conventional short-circuit current [kA]
    thirty
  • Rated operational current [A]
    400
  • PKWIU
    27.12.22.0
  • Rated insulation voltage [V]
    1000
  • Level of security
    IP00
  • Power loss per pole [W]
    14.4
  • Rated switching voltage [V]
    380/415
  • Rated surge voltage [V]
    8000
  • Conductor cross-section (wire) [mm²]
    1 x 240

Other technical data

  • Version as main switch
    Yes
  • Version as safety switch
    Yes
  • Version as reversing switch
    No
  • Max. rated operation voltage Ue AC
    415 V
  • Rated permanent current Iu
    400 A
  • Rated permanent current at AC-21, 400 V
    400 A
  • Rated operation power at AC-23, 400 V
    112 kW
  • Conditioned rated short-circuit current Iq
    50 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    No
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    No
  • Suitable for distribution board installation
    Yes
  • Colour control element
    Black
  • Interlockable
    Yes
  • Degree of protection (IP), front side
    IP00
  • Version as maintenance-/service switch
    Yes
  • Version as emergency stop installation
    No
  • Number of switches
    1
  • Rated operating voltage
    380 ... 415 V
  • Rated permanent current at AC-23, 400 V
    400 A
  • Rated short-time withstand current lcw
    9 kA
  • Switching power at 400 V
    263 kW
  • Number of poles
    4
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    No
  • Voltage release optional
    No
  • Suitable for floor mounting
    Yes
  • Suitable for front mounting centre
    No
  • Suitable for intermediate mounting
    No
  • Type of control element
    Long turning handle
  • Type of electrical connection of main circuit
    Cable clamp
  • Degree of protection (NEMA)
    Other

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 3 pcs. 72 pcs.
Weight (kg) 2,000 2,360 7,500 205,000
Width (m) 0,230 0,230 0,315 0,800
Length (m) 0,160 0,160 0,215 1,010
Depth (m) 0,130 0,130 0,360 1,200
