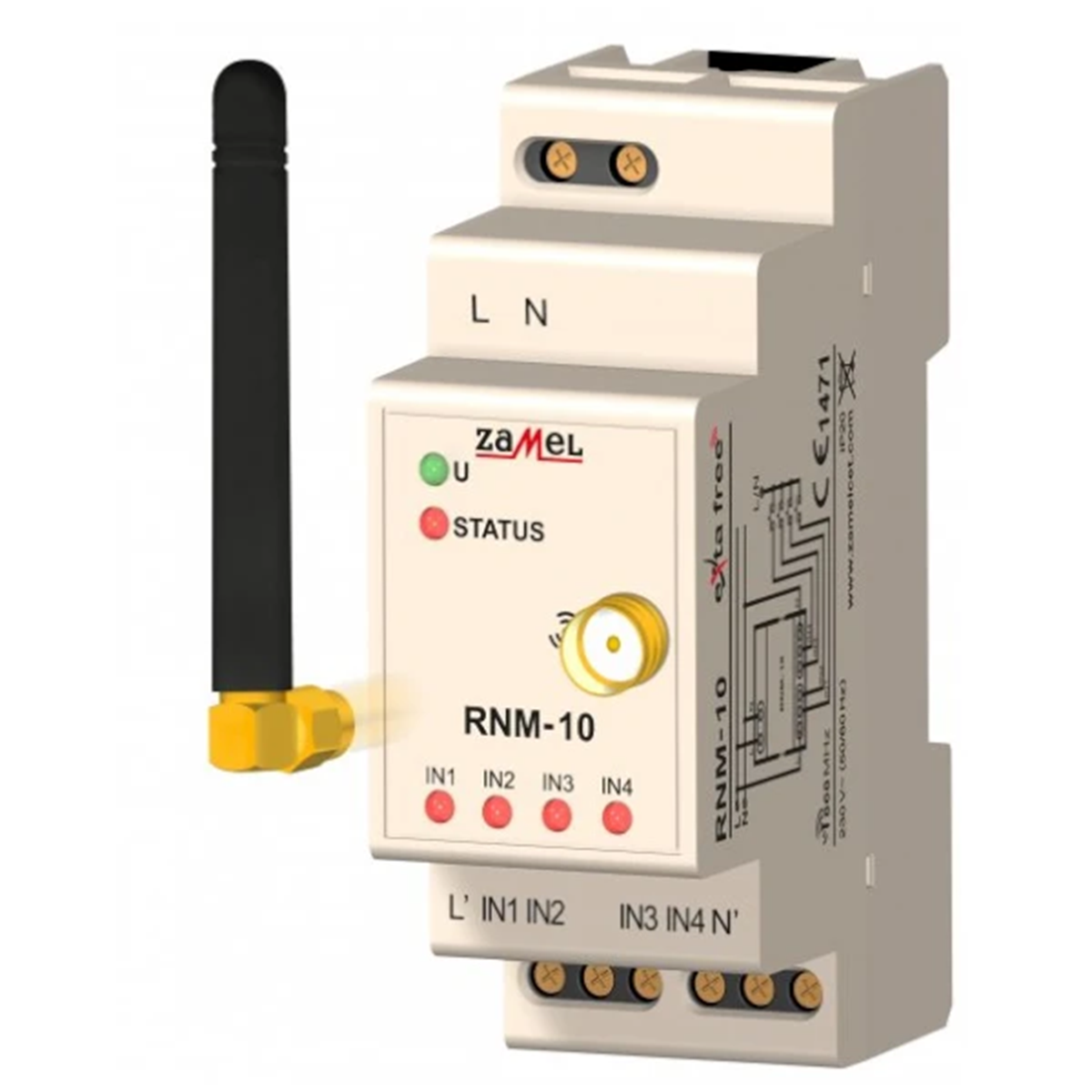

4-channel modular radio transmitter TYPE: RNM-10 EXF10000031

local index:
API018ZAME
Catalog No:
EXF10000031
EAN code:
5903669041726
Manufacturer: ZAMEL
Number of channels: 4
Coding: Addressed transmission
Rated voltage [V]: 230
Price:
54,60 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

EXTA FREE system radio transmitters, enabling the control signal to be sent from the main switchgear of the building or other location where building automation devices are installed on the TH 35 rail. The devices naturally extend the possibilities of traditional, wired EXTA building automation devices, they can also cooperate with any , another relay automation system. In addition, the RS485/EXTA FREE RXM-01 translator allows you to connect intelligent building systems or programmable controllers/relays with the EXTA FREE system via the standard RS485 protocol.

Technical data

  • Number of channels
    4
  • Rated voltage [V]
    230
  • Level of security
    IP20
  • Range [mm]
    300
  • Frequency [MHz]
    868
  • Coding
    Addressed transmission
  • Family
    EXTAFREE
  • Type
    Transmitter
  • Frequency [MHz]
    868
  • PKWIU
    26.30.12.0
