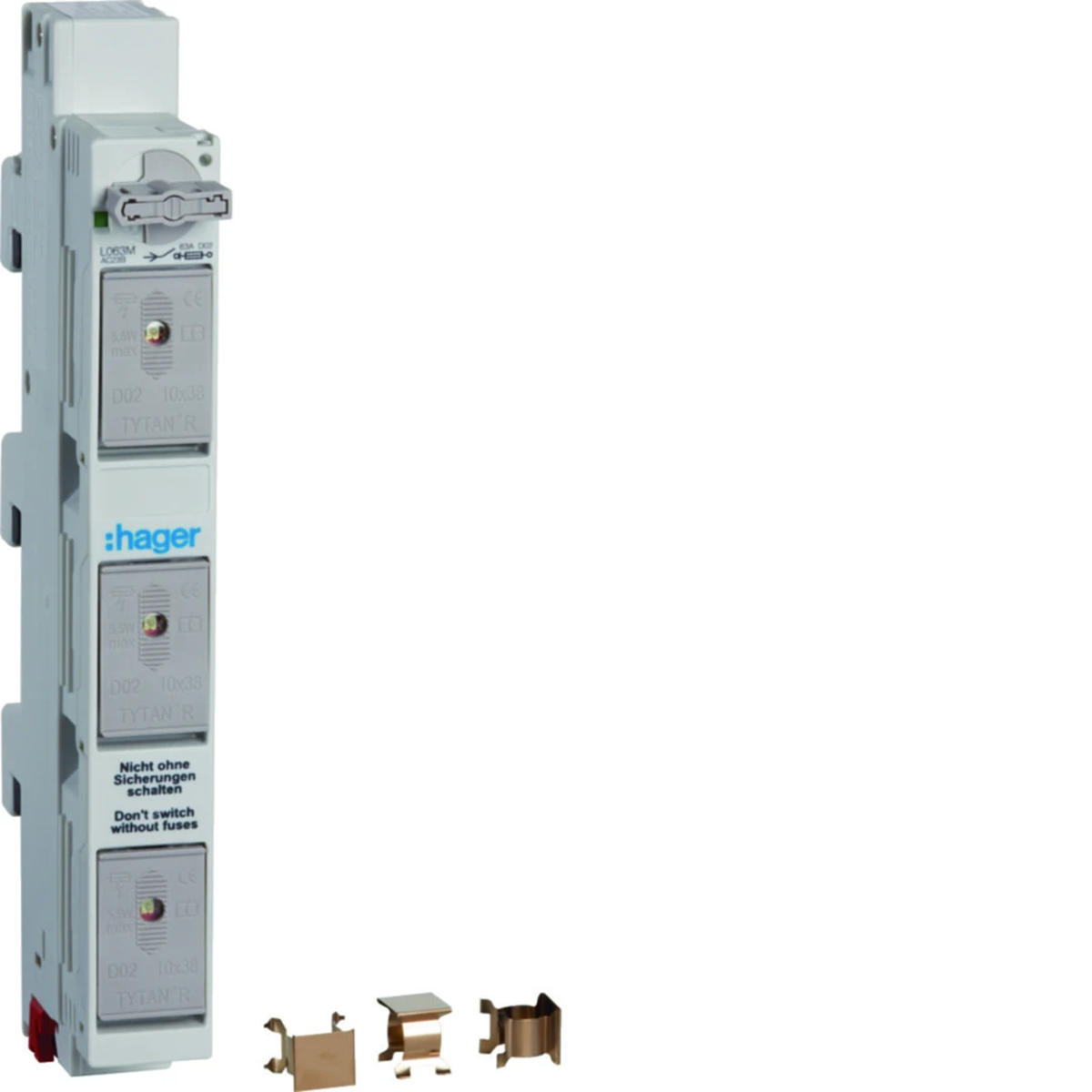

3P D01/D02 fuse switch disconnector, CH10 10x39 mm L063M
local index:
ALB173HAGE
Catalog No:
L063M
EAN code:
3250610740613
Price:
143,86 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
3P D01/D02 fuse switch disconnector, CH10 10x39 mm
Technical data
-
Rated frequency [Hz]50
-
Depth [mm]77
-
Fixingrail system
-
Rated insulation voltage [V]800
-
power loss [W]4.5
-
Fuse link sizeD02
-
Operating temperature range [°C]from -25 to 55
-
Fuse link rated current [A]2/4/6/10/13/16/20/25/35/50/63
-
Connection typeClamp / Rail
-
Rated surge voltage [V]6000
-
PKWIU27.12.23.0
-
Length [mm]89
-
Number of poles3
-
Tightening torque [Nm]2.5
-
Rated current [A]63
-
Width [mm]27
-
Height [mm]80
-
Rated switching voltage [V]400
-
Conventional short-circuit current [kA]50
-
storage temperature [°C]from -25 to 55
-
Wire cross-section (cord) [mm²]1.5 - 35
Other technical data
-
Number of poles3
-
Rated voltage400 V
-
Construction sizeD02
-
Rated current63 A
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 3 pcs. | 15 pcs. | 360 pcs. |
| Weight (kg) | 0,341 | 1,005 | 5,415 | 154,960 |
| Width (m) | 0,027 | 0,090 | 0,310 | 0,800 |
| Length (m) | 0,226 | 0,140 | 0,210 | 1,050 |
| Depth (m) | 0,089 | 0,250 | 0,360 | 1,200 |
