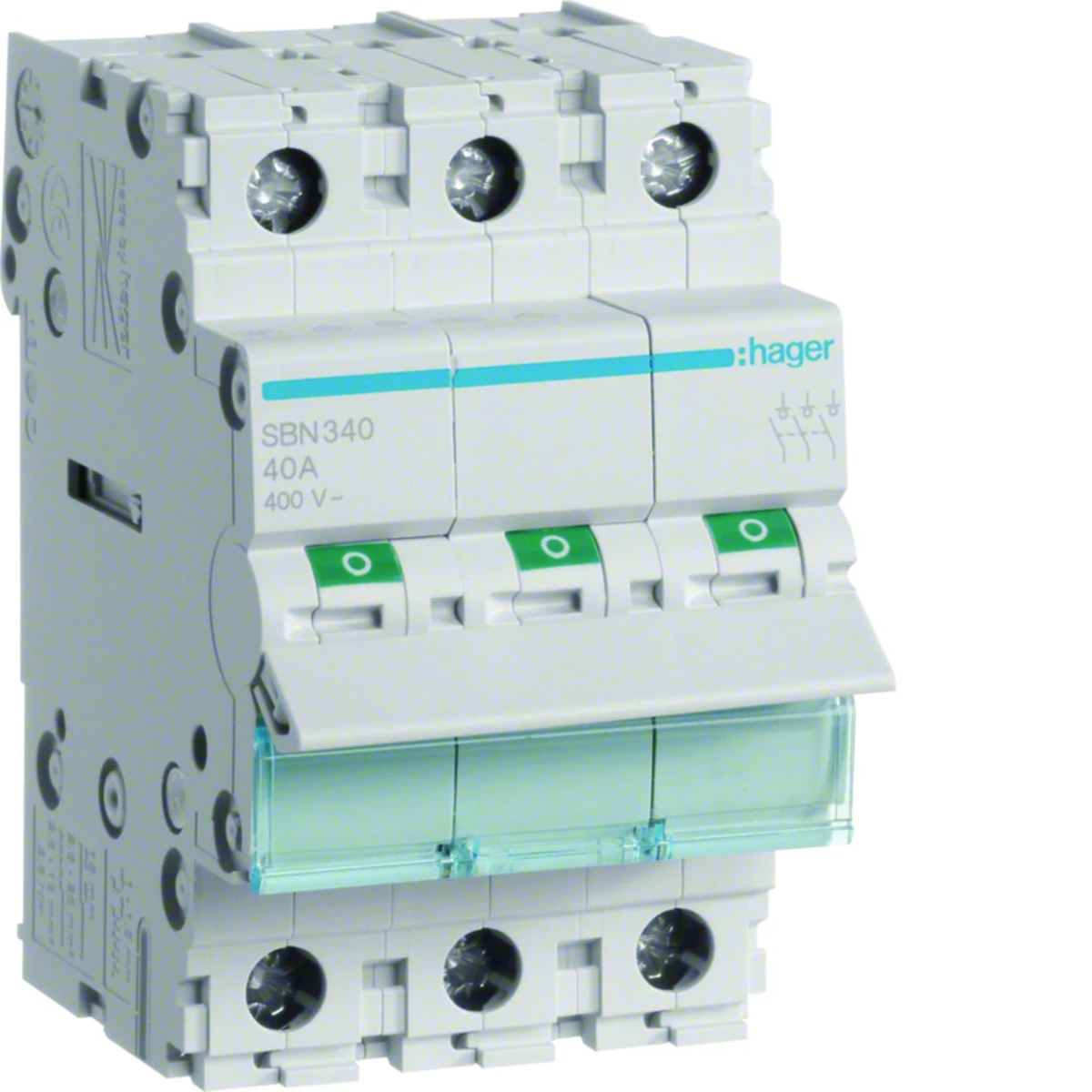

3P 40A modular switch disconnector SBN340

Name: 3P 40A modular switch disconnector
Brand: HAGER
SKU: ALI008HAGE
Price: 24.87 PLN
Availability: InStock

local index:

ALI008HAGE

Catalog No:

SBN340

EAN code:

3250615510181

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 68

Number of modules: 3

Number of poles: 3

See full description

Price:

24,87 €

gross / pcs.

(including VAT 23%)

Accessible 6 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Modular switch disconnectors For disconnecting all types of current circuits.
Compliance with:
EN 60943-3 for the entire range and EN 60669-1 for the range from 16 A to 63 A.
Characteristics:
All disconnectors have green/red fields on the drive lever for clear visualization of the disconnector position.
Technical data:
Usage category AC22A 230V/400V
Ie : 16A to 32A size 1.
Connection terminals:
16mm² - wire
10 mm² - stranded
Ie: 32 A to 63 A size 2.
Connection terminals:
25 mm² - wire
16 mm² - stranded

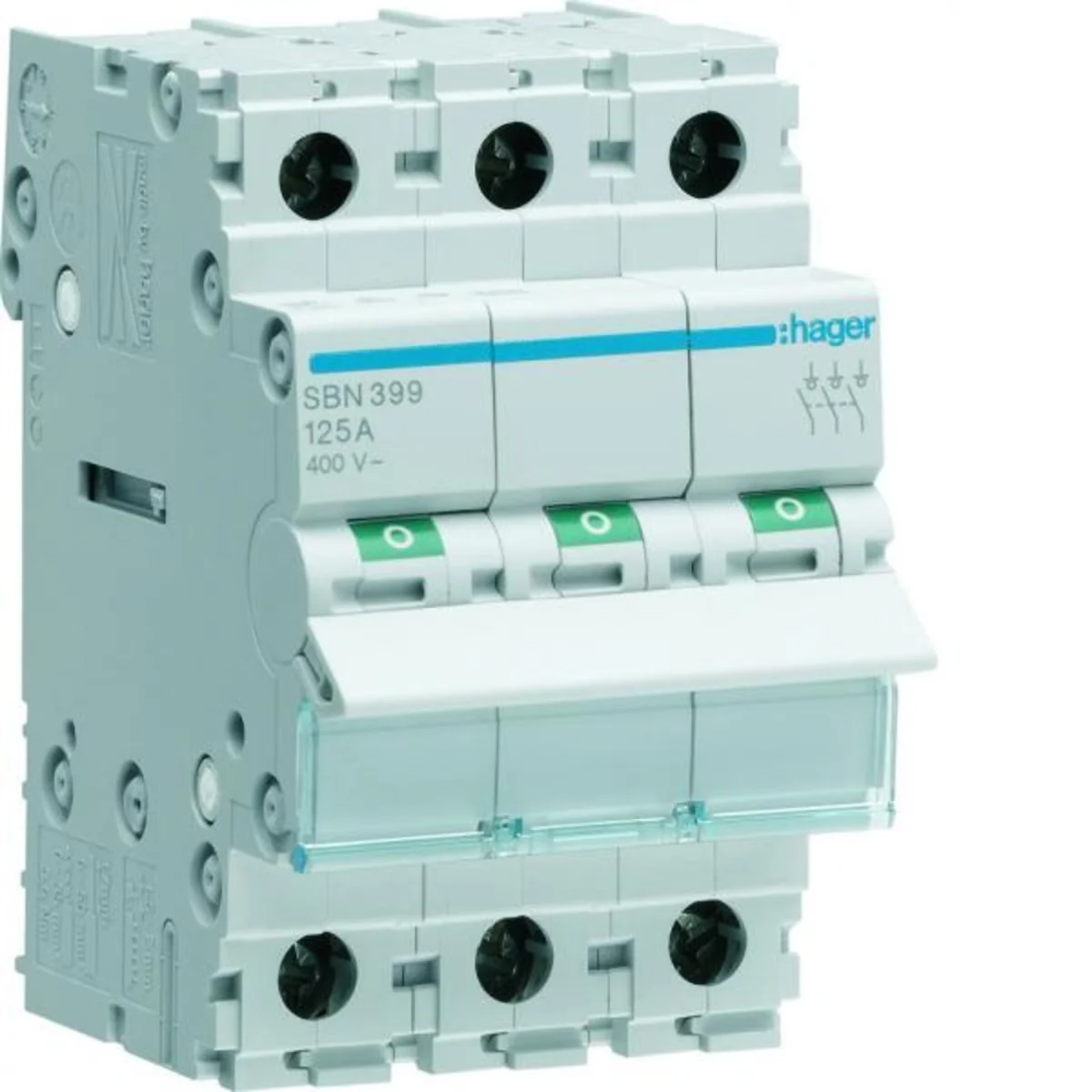

Ie: 63 A to 125 A size 3.
Connection terminals:
50 mm² - wire
35 mm² - cord
MZ2xx series shunt, undervoltage and overvoltage releases cannot be used.

Technical data

Depth [mm]

68
Number of poles

3
Rated current [A]

40
Width [mm]

52.5
Number of modules

3

Number of modules

3
Rated insulation voltage [V]

440
Power dissipation [W]

3
Height [mm]

83
PKWIU

27.33.11.0

Other technical data

Switching function

Off switch
Number of contacts as normally closed contact

0
Number of poles

3
Rated voltage

400 V
Rated switching capacity

0.846 kA
Voltage type

AC
Max. lamp power

0 W
Built-in depth

68 mm

Number of contacts as normally open contact

3
Number of contacts as change-over contact

0
Rated current

40 A
Min. rated voltage

400 V
Short-circuit breaking capacity (Icw)

0.6 kA
With signal lamp

No
Width in number of modular spacings

3
Degree of protection (IP)

IP20

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	4 pcs.	48 pcs.	1152 pcs.
Weight (kg)	0,210	0,890	11,140	290,360
Width (m)	0,052	0,100	0,315	0,800
Length (m)	0,083	0,080	0,235	1,090
Depth (m)	0,073	0,225	0,360	1,200
