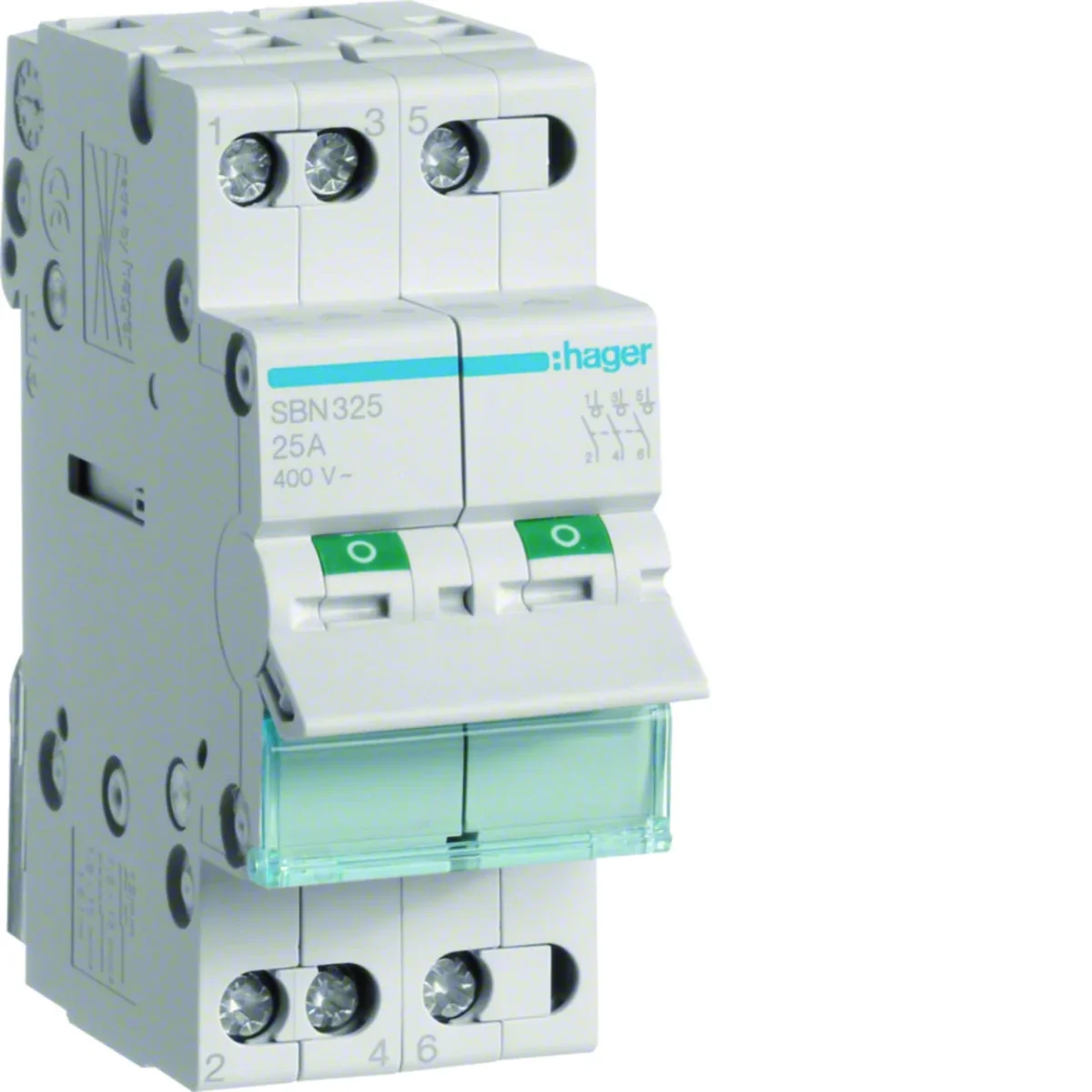

3P 25A modular switch disconnector SBN325

Name: 3P 25A modular switch disconnector
Brand: HAGER
SKU: ALI005HAGE
Price: 21.24 PLN

local index:

ALI005HAGE

Catalog No:

SBN325

EAN code:

3250615510105

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 68

Number of modules: 2

Number of poles: 3

See full description

Price:

21,24 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Modular switch disconnectors For disconnecting all types of current circuits.
Compliance with:
EN 60943-3 for the entire range and EN 60669-1 for the range from 16 A to 63 A.
Characteristics:
All disconnectors have green/red fields on the drive lever for clear visualization of the disconnector position.
Technical data:
Usage category AC22A 230V/400V Ie: 16A to 32A size 1.
Connection terminals:
16mm² - wire
10 mm² - stranded
Ie: 32 A to 63 A size 2.
Connection terminals:
25 mm² - wire
16 mm² - stranded

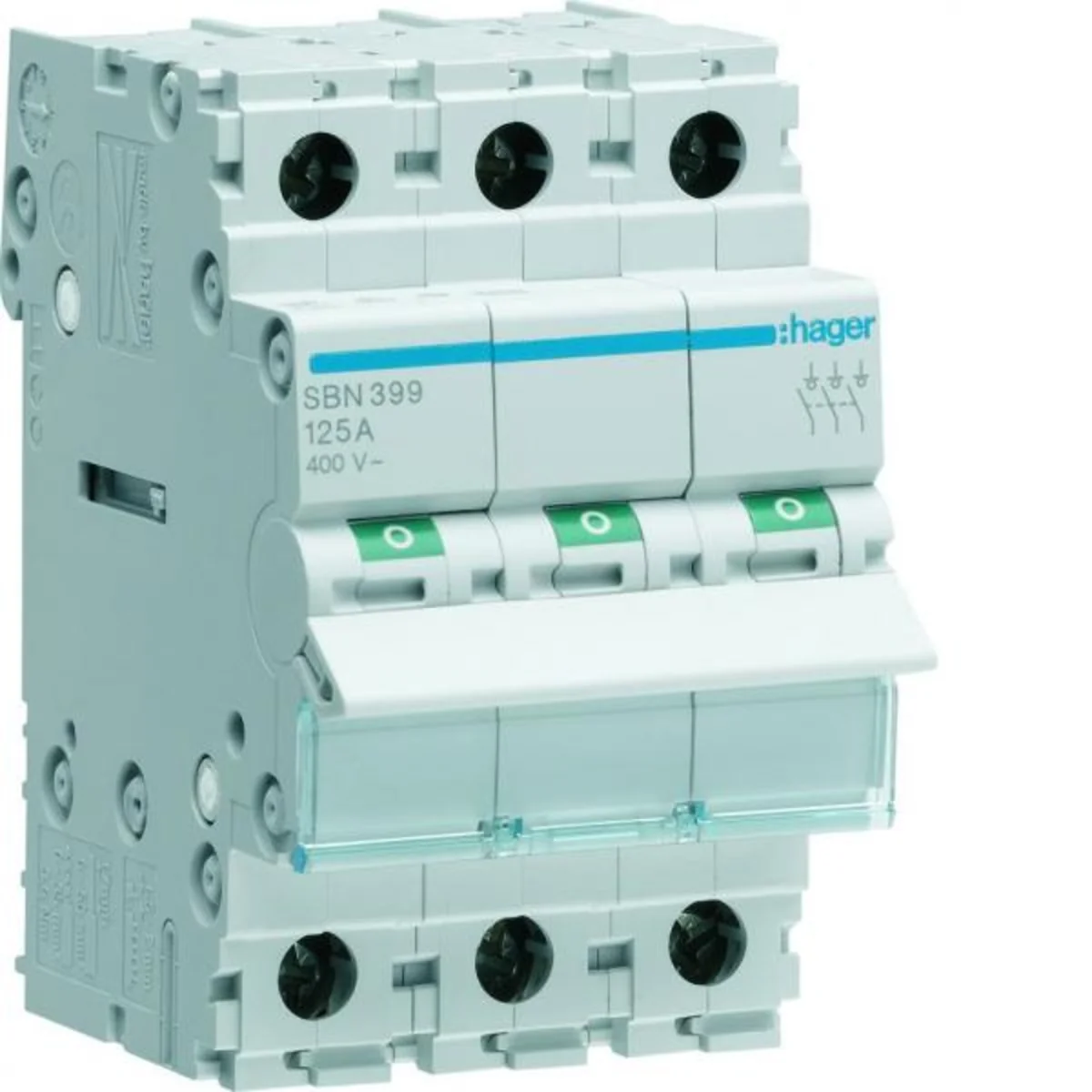

Ie: 63 A to 125 A size 3.
Connection terminals:
50 mm² - wire
35 mm² - cord
MZ2xx series shunt, undervoltage and overvoltage releases cannot be used.

Technical data

Depth [mm]

68
Number of poles

3
Rated voltage [V]

230
Rated current [A]

25
Width [mm]

35
Number of modules

2

Number of modules

2
Surge voltage [kV]

4000
Rated insulation voltage [V]

440
Power dissipation [W]

3
Height [mm]

83
PKWIU

27.33.11.0

Other technical data

Switching function

Off switch
Number of contacts as normally closed contact

0
Number of poles

3
Rated voltage

400 V
Rated switching capacity

0.529 kA
Voltage type

AC
Max. lamp power

0 W
Built-in depth

68 mm

Number of contacts as normally open contact

3
Number of contacts as change-over contact

0
Rated current

25 A
Min. rated voltage

400 V
Short-circuit breaking capacity (Icw)

0.375 kA
With signal lamp

No
Width in number of modular spacings

2
Degree of protection (IP)

IP20
