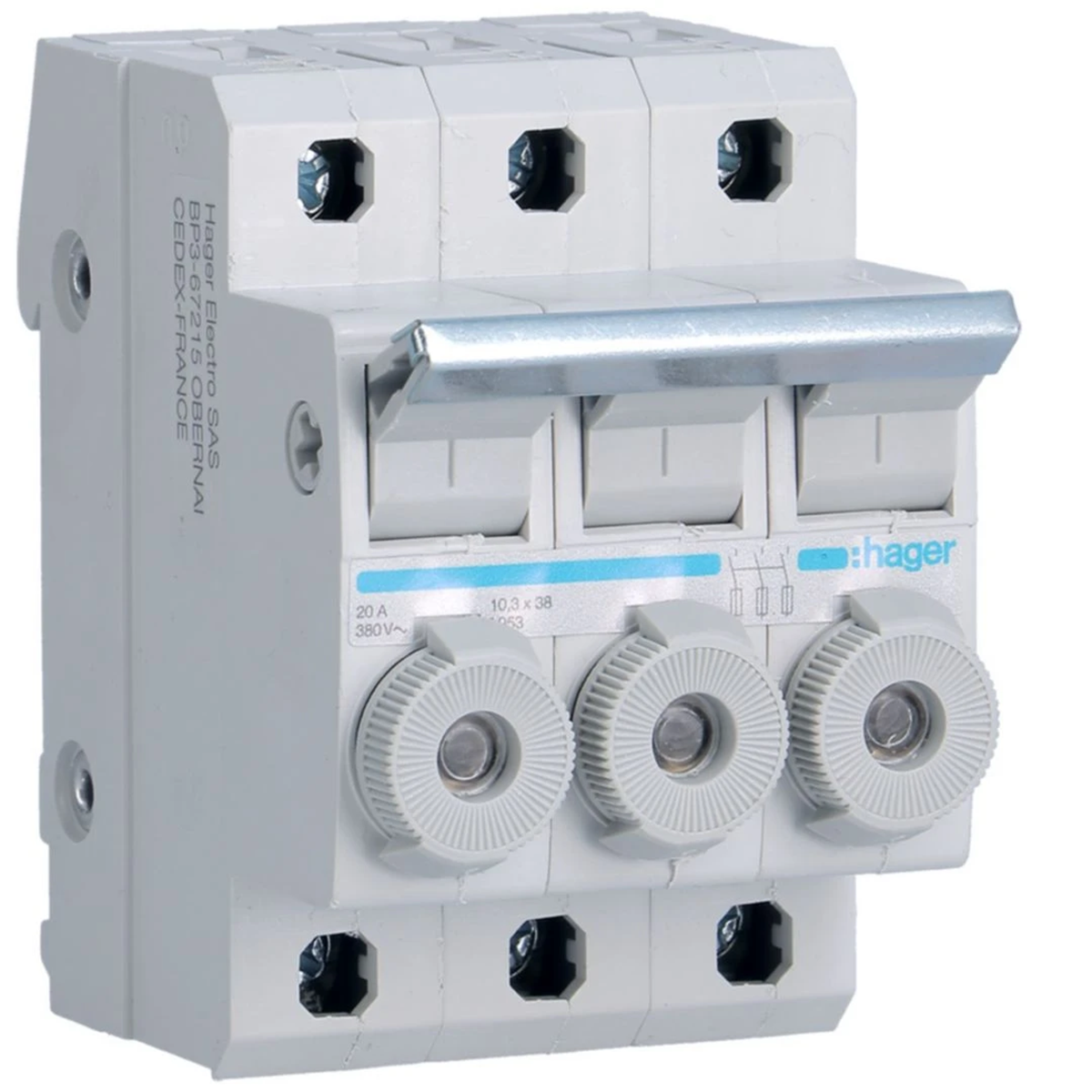

3P 20A 10x38 fuse switch disconnector L95300

local index:
ALB025HAGE
Catalog No:
L95300
EAN code:
3250610100370
Manufacturer: HAGER
Width [mm]: 38
Height [mm]: 10
Price:
36,27 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

L 38 series
• for cylindrical fuses with dimensions: 10 x 38 mm type gG
• max. I know the current. 20A, 400VAC
• rail mounting? TS35
• cage clamps:
- wire up to 25 mm2
- strand up to 16 mm2

Technical data

  • Width [mm]
    38
  • PKWIU
    27.12.21.0
  • Height [mm]
    10

Other technical data

  • Version as main switch
    Yes
  • Number of poles
    3
  • Type of electrical connection of main circuit
    Screw connection
  • Suitable for front mounting
    No
  • Type of control element
    Other
  • Version as emergency stop installation
    No
  • Version as safety switch
    No
  • With error protection
    No
  • Suitable for floor mounting
    Yes
  • Suitable for busbar mounting
    No
  • Motor drive optional
    No
  • Degree of protection (IP), front side
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 4 pcs. 48 pcs. 1152 pcs.
Weight (kg) 0,239 1,031 12,745 328,880
Width (m) 0,050 0,097 0,323 0,800
Length (m) 0,066 0,082 0,237 1,098
Depth (m) 0,073 0,228 0,367 1,200
