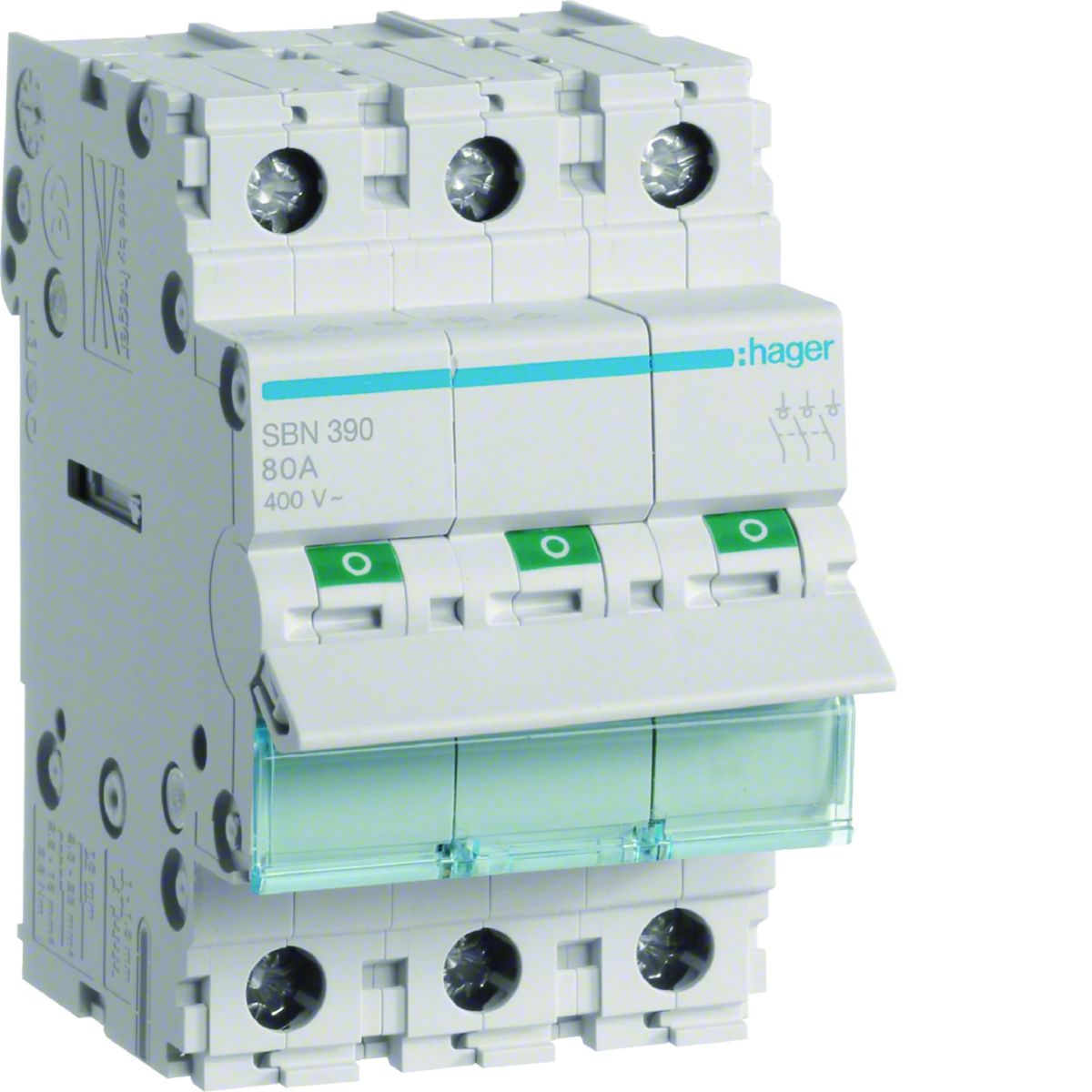

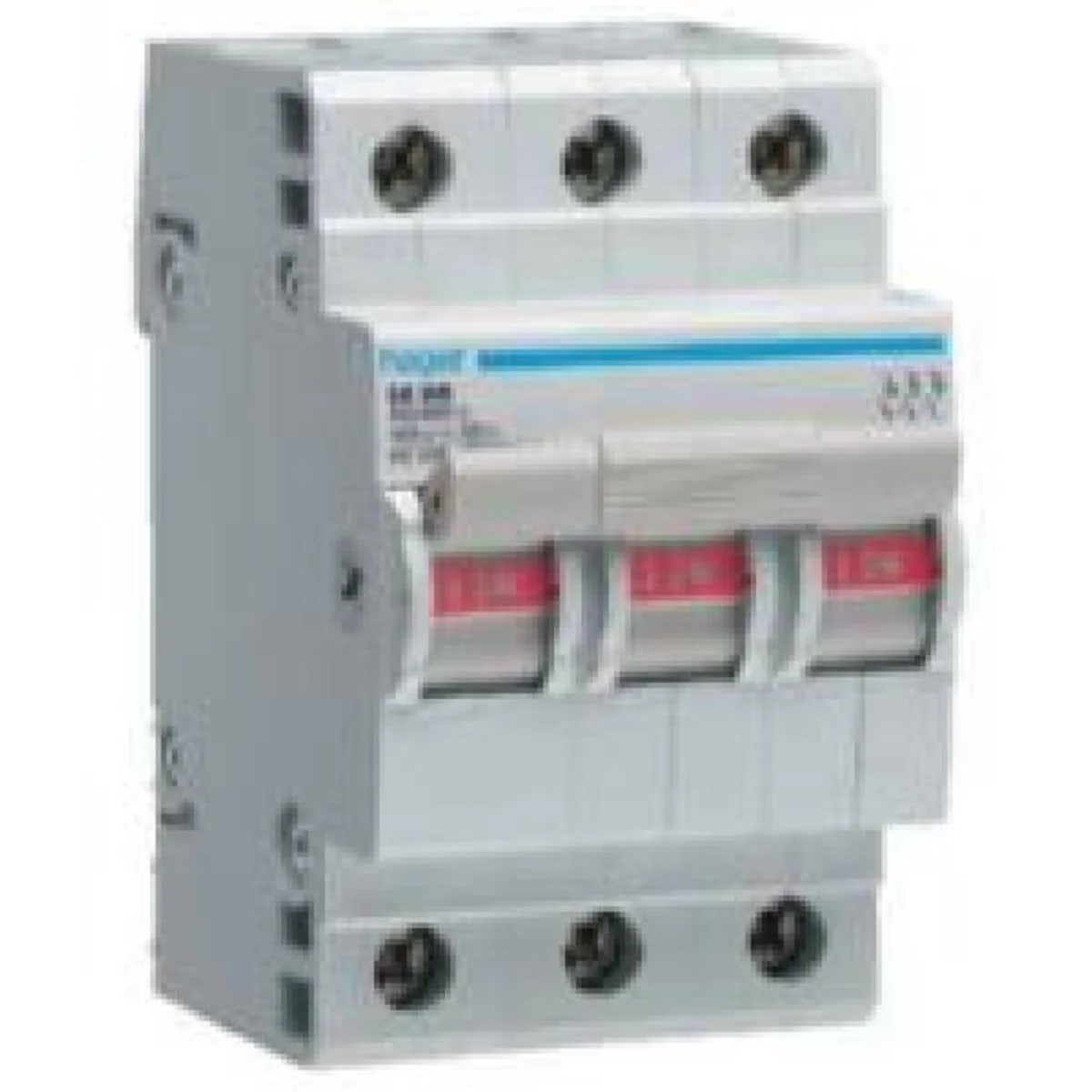

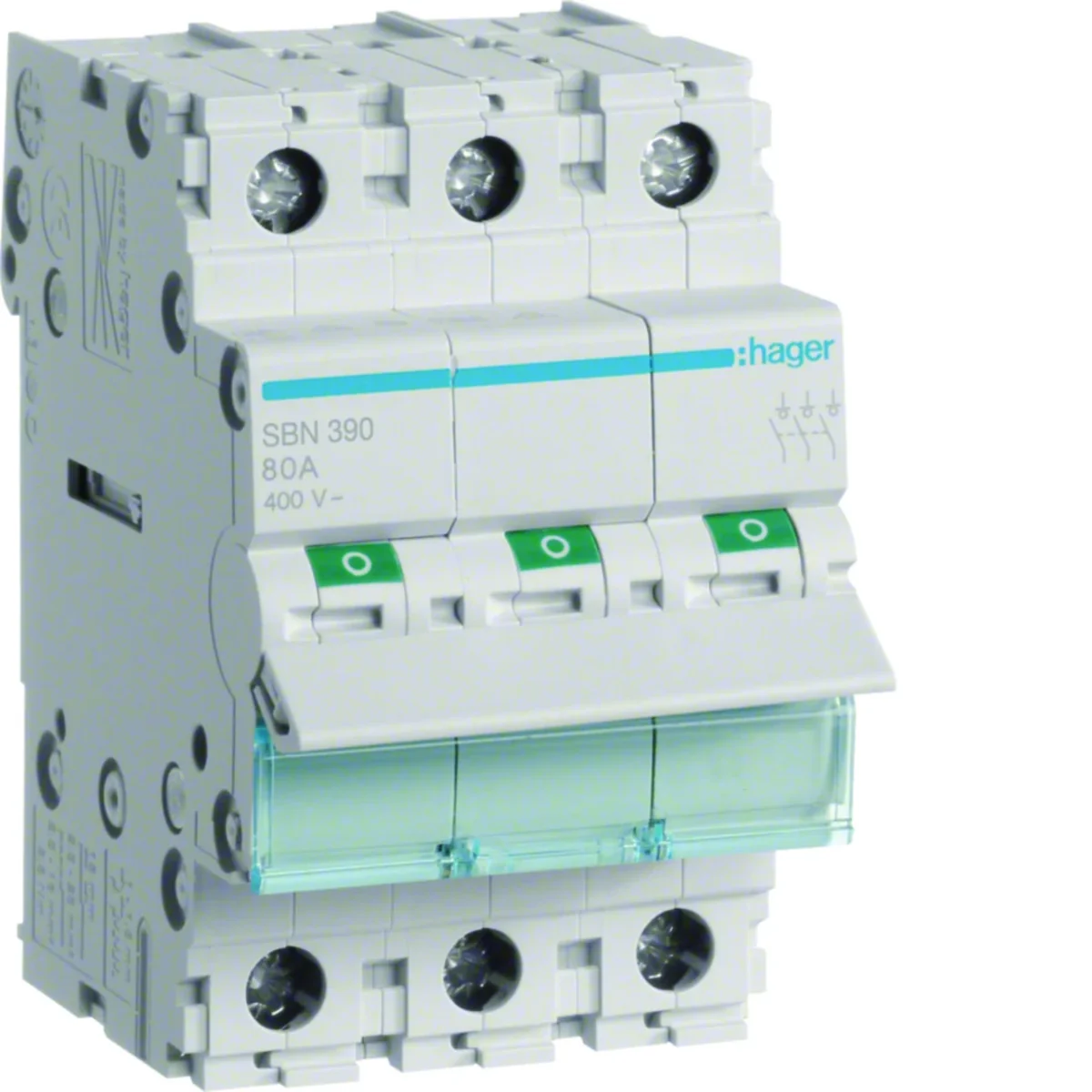

3P 100A modular switch disconnector SBN390

local index:
ALI130HAGE
Catalog No:
SBN390
EAN code:
3250615510303
Manufacturer: HAGER
Depth [mm]: 68
Number of modules: 3
Number of poles: 3
Price:
33,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 51 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Modular switch disconnectors For disconnecting all types of current circuits.
Compliance with:
EN 60943-3 for the entire range and EN 60669-1 for the range from 16 A to 63 A.
Characteristics:
All disconnectors have green/red fields on the operating lever for clear visualization of the disconnector position.
Technical data:
Usage category AC22A 230V/400V
Ie : 16A to 32A size 1.
Connection terminals:
16mm² - wire
10 mm² - stranded
Ie: 32 A to 63 A size 2.
Connection terminals:
25 mm² - wire
16 mm² - stranded
Ie: 63 A to 125 A size 3.
Connection terminals:
50 mm² - wire
35 mm² - cord
MZ2xx series shunt, undervoltage and overvoltage releases cannot be used.

Technical data

  • Depth [mm]
    68
  • Number of poles
    3
  • Rated voltage [V]
    230
  • Rated current [A]
    100
  • Height [mm]
    83
  • PKWIU
    27.33.11.0
  • Number of modules
    3
  • Surge voltage [kV]
    6000
  • Rated insulation voltage [V]
    440
  • Width [mm]
    52, 5
  • Number of modules
    3

Other technical data

  • Switching function
    Off switch
  • Number of contacts as normally closed contact
    0
  • Number of poles
    3
  • Rated voltage
    400 V
  • Rated switching capacity
    1.692 kA
  • Voltage type
    AC
  • Max. lamp power
    0 W
  • Built-in depth
    68 mm
  • Number of contacts as normally open contact
    3
  • Number of contacts as change-over contact
    0
  • Rated current
    100 A
  • Min. rated voltage
    400 V
  • Short-circuit breaking capacity (Icw)
    1.2 kA
  • With signal lamp
    no
  • Width in number of modular spacings
    3
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Pakiet Paczka Paleta
Quantity 4 pcs. 48 pcs. 1152 pcs.
Weight (kg) 0,991 12,348 319,352
Width (m) 0,100 0,318 0,800
Length (m) 0,082 0,234 1,086
Depth (m) 0,229 0,373 1,200
