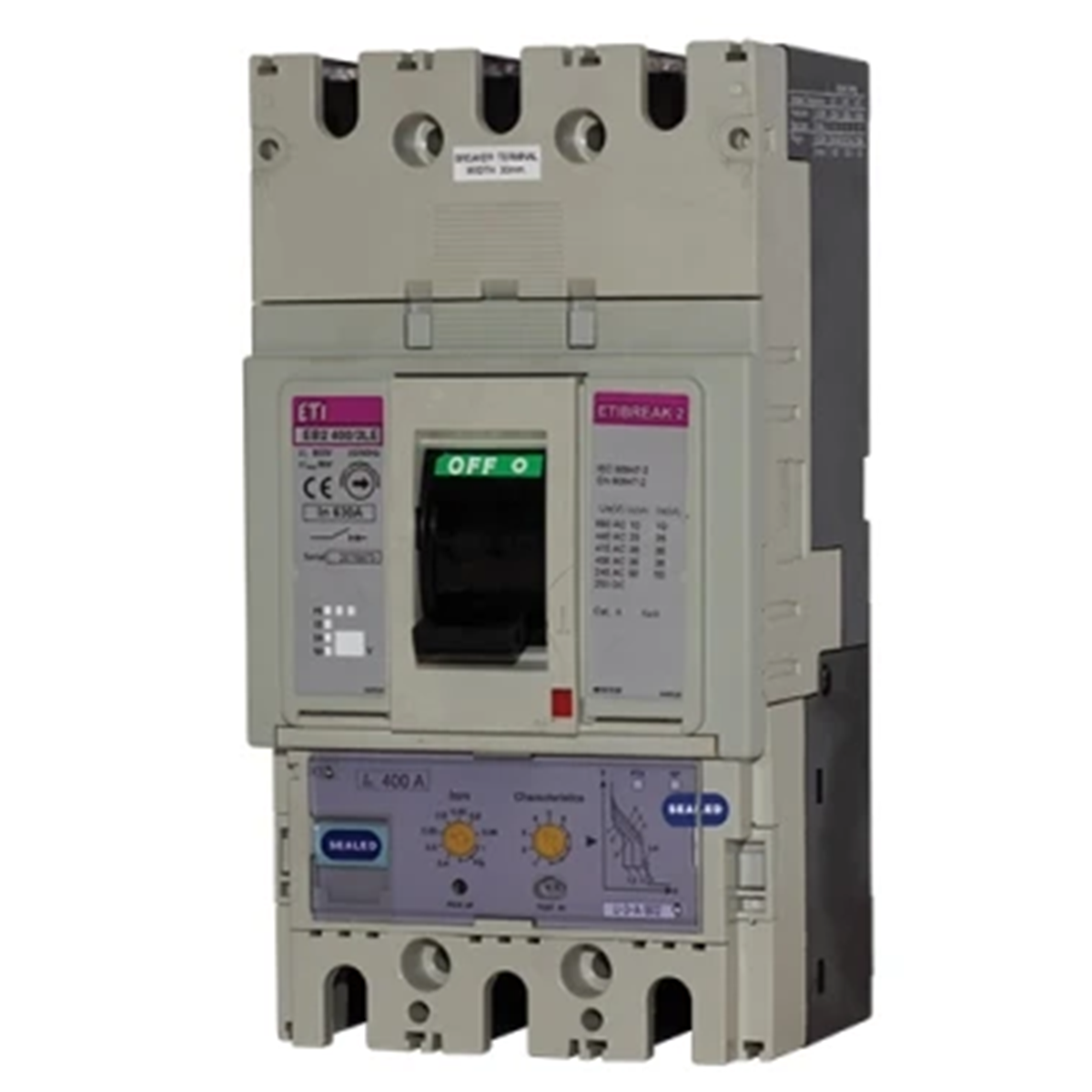

3-pole switch disconnector ED2 400/3 004671274

local index:
ALM033ETIP
Catalog No:
004671274
EAN code:
3838895411079
Manufacturer: ETI POLAM
Number of poles: 3
DC rated voltage [V]: 600
Surge current [kA]: 9
Price:
500,63 €
gross / pcs.
(including VAT 23%)
119,20 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Application - Molded case circuit breakers are used to connect circuits and protect power cables and wires, motors and electrical apparatus against the effects of overloads and short circuits. We also offer a wide range of accessories –current releases, undervoltage releases, remote controls …. Devices available in the range from 20A to 630A in 3 and 4 pole versions.
Advantages:
→ mechanically durable compact housing,
→ small dimensions,
→ a large range of available accessoriesó
→ very easy assembly of internal and external accessories,
→ internal accessories common for the entire series up to 630A,
→ high short-circuit capacity,
→ quick-release mechanism,
→ high safety ensured by the Safety + system in accordance with the IEC 60204-1 standard,
→ can be mounted on a board as well as on a TH-35 rail (size 125A).

Technical data

  • Number of poles
    3
  • Surge current [kA]
    9
  • Weight [g]
    4200
  • PKWIU
    27.12.22.0
  • DC rated voltage [V]
    600
  • Rated current [A]
    400
  • AC rated voltage [V]
    690

Other technical data

  • Version as main switch
    Yes
  • Version as safety switch
    Yes
  • Conditioned rated short-circuit current Iq
    70 kA
  • Motor drive optional
    Yes
  • Device construction
    Built-in device fixed built-in technique
  • Type of control element
    Rocker lever
  • Degree of protection (IP), front side
    IP20
  • Version as maintenance-/service switch
    Yes
  • Rated permanent current Iu
    400 A
  • Number of poles
    3
  • Voltage release optional
    Yes
  • Suitable for floor mounting
    Yes
  • Type of electrical connection of main circuit
    Screw connection
