2R snap action limit switch stainless steel spring multidirectional PAP1T92PZ02 A37-1161 A37-1161

Name: 2R snap action limit switch stainless steel spring multidirectional PAP1T92PZ02 A37-1161
Brand: POKÓJ
SKU: ALC088POKO
Price: 116.52 PLN
Availability: BackOrder

Index local:

ALC088POKO

Numéro de catalogue:

A37-1161

Code EAN:

5902626188719

2R snap action limit switch stainless steel spring multidirectional PAP1T92PZ02 A37-1161

Cliquer sur la photo pour l'agrandir

Producteur: POKÓJ

Prix:

116,52 zł

gross / pcs.

(y compris la TVA 23%)

2 semaines

Sur commande

Quantité pcs.

(plusieurs:

1

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Données techniques Détails du fabricant Fichiers à télécharger

Données techniques

PKWIU

27.33.11

Autres données techniques

Width sensor

30.3 mm
Height of sensor

30 mm
Rated operation current Ie at AC-15, 24 V

10 A
Rated operation current Ie at AC-15, 230 V

3 A
Rated operation current Ie at DC-13, 125 V

0.55 A
Switching function

Quick-break switch
Forced opening

No

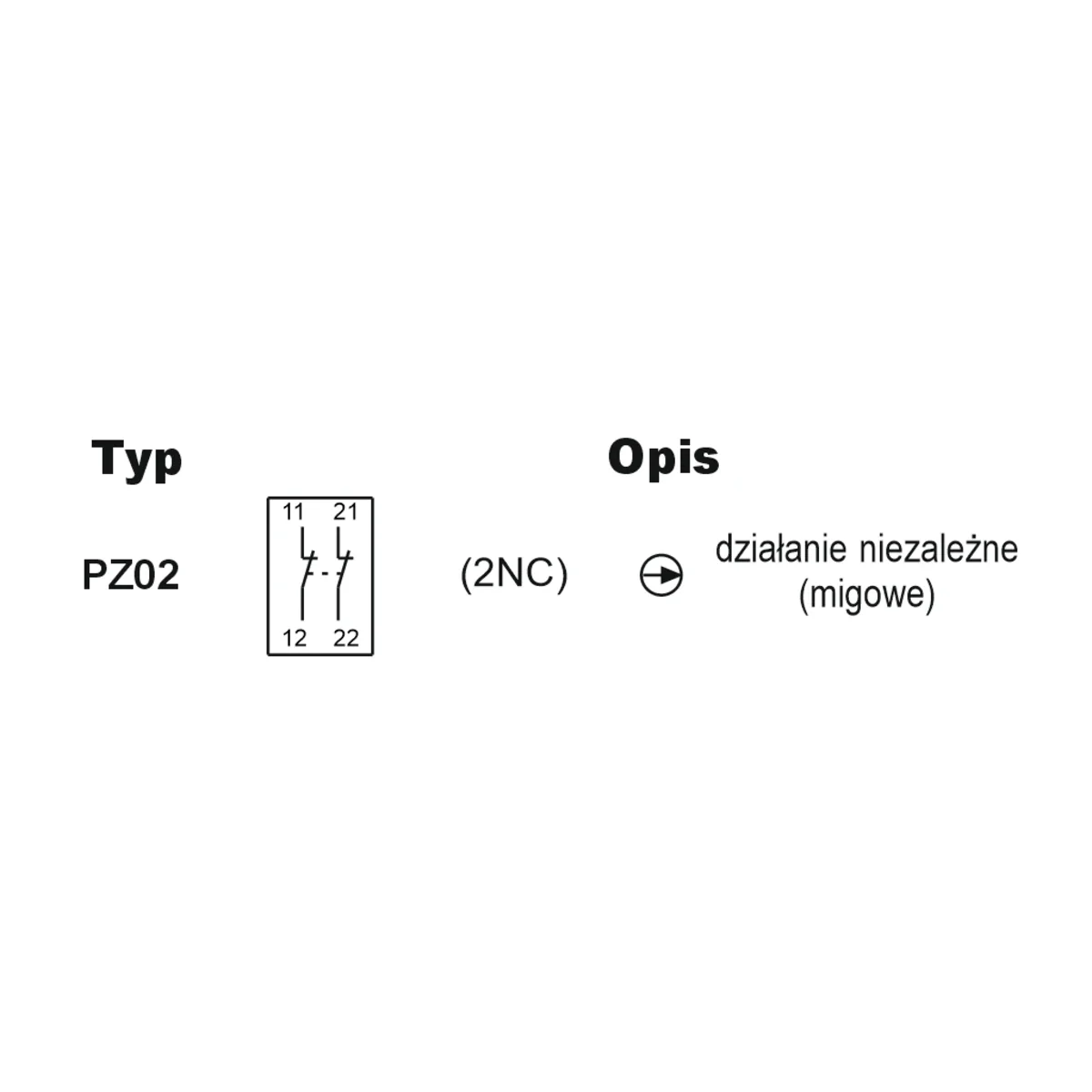

Number of contacts as normally closed contact

2
Number of contacts as change-over contact

0
Type of interface for safety communication

None
Construction type housing

Cuboid
Coating housing

Other
Alignment of the control element

Other
With status indication

No
Explosion safety category for gas

None
Ambient temperature during operating

-25 ... 70 °C

Diameter sensor

6.2 mm
Length of sensor

168 mm
Rated operation current Ie at AC-15, 125 V

6 A
Rated operation current Ie at DC-13, 24 V

2.8 A
Rated operation current Ie at DC-13, 230 V

0.27 A
Output electronic

No
Number of safety auxiliary contacts

0
Number of contacts as normally open contact

0
Type of interface

None
Obudowa zgodnie z normą

DIN EN 50047
Housing material

Plastic
Type of control element

Spring-rod
Type of electric connection

Cable entry PG
Suitable for safety functions

No
Explosion safety category for dust

None
Degree of protection (IP)

IP65

Détails du fabricant

Producteur

POKÓJ S.E.
Adresse

91-202 Łódź Warecka 1 Polska
E-mail

sekretariat@pokoj.com.pl

Fichiers à télécharger

Télécharger tous les fichiers

DEK_ZGOD_laczniki.pdf

B_laczniki_krancowe_2024.pdf

KI-232-1_PAP.pdf
