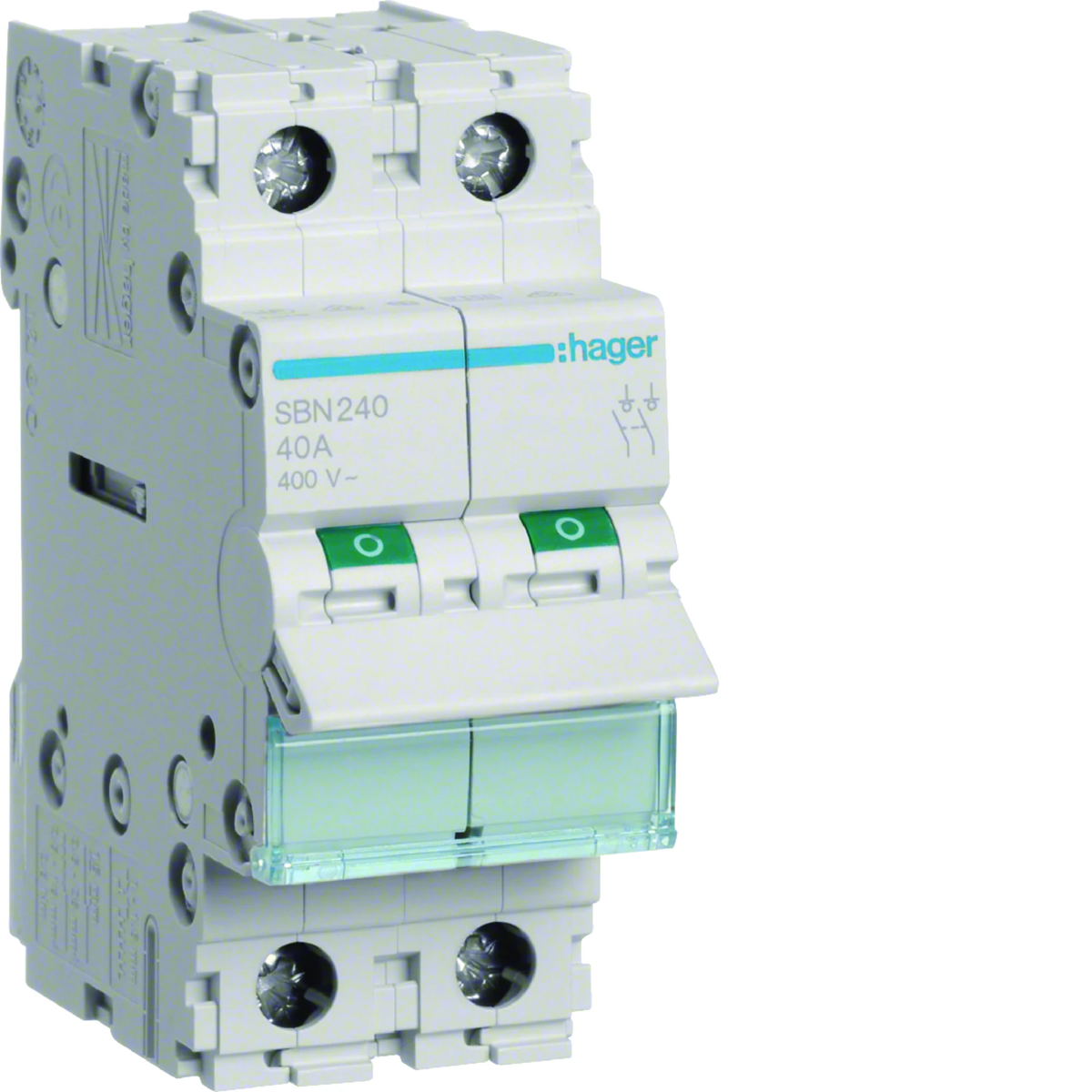

2P 40A modular switch disconnector SBN240

Modular switch disconnectors For disconnecting all types of current circuits.
Compliance with:
EN 60943-3 for the entire range and EN 60669-1 for the range from 16 A to 63 A.
Characteristics:
All disconnectors have green/red fields on the drive lever for clear visualization of the disconnector position.
Technical data:
Usage category AC22A 230V/400V
Ie : 16A to 32A size 1.
Connection terminals:
16mm² - wire
10 mm² - stranded
Ie: 32 A to 63 A size 2.
Connection terminals:
25 mm² - wire
16 mm² - stranded
Ie: 63 A to 125 A size 3.
Connection terminals:
50 mm² - wire
35 mm² - cord
MZ2xx series shunt, undervoltage and overvoltage releases cannot be used.
