2P 20A 10x38 fuse switch disconnector L96200

local index:
ALB177HAGE
Catalog No:
L96200
EAN code:
3250610100394

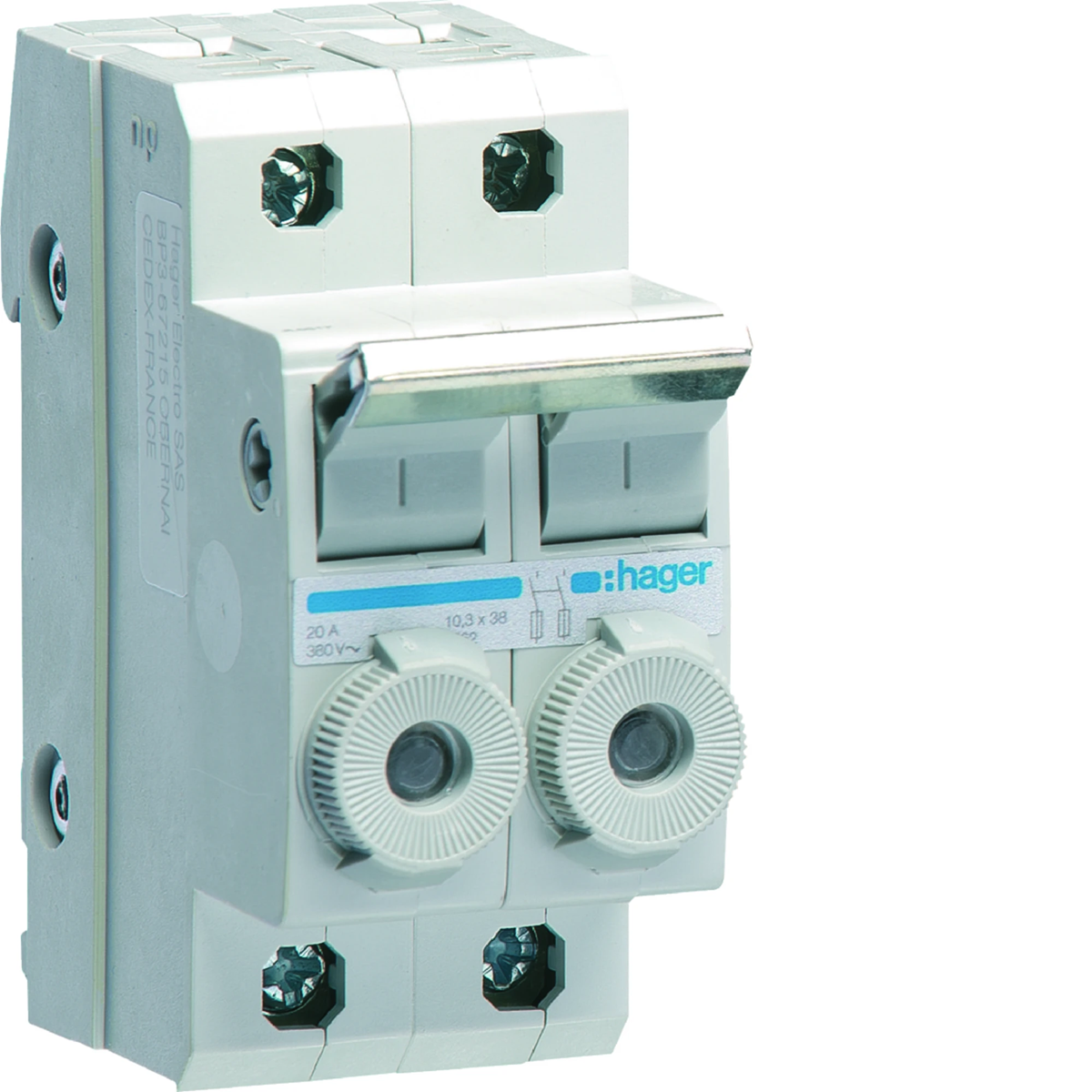

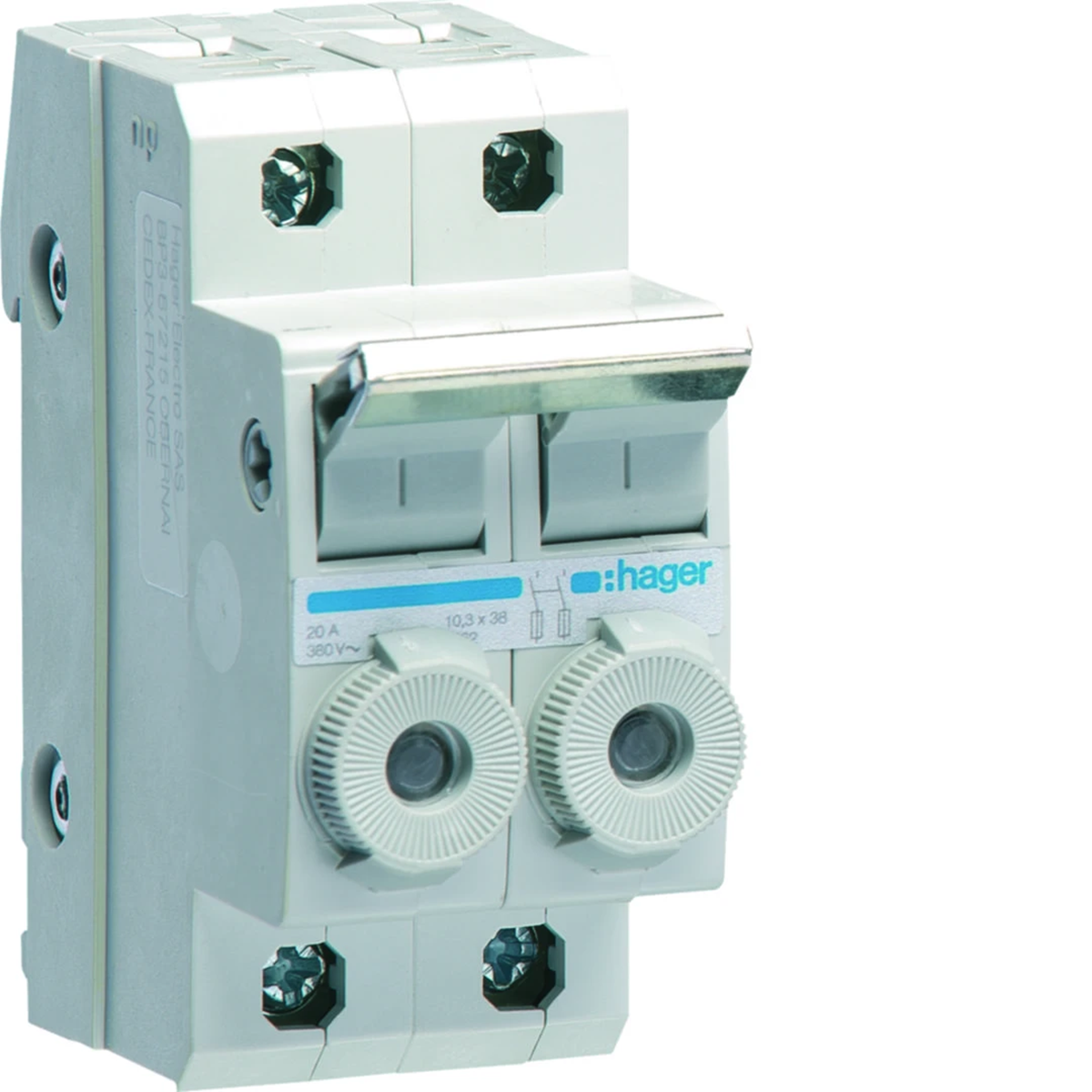

2P 20A 10x38 fuse switch disconnector
2P 20A 10x38 fuse switch disconnector

Click on the photo to enlarge

Manufacturer: HAGER
Rated frequency [Hz]: 50
Number of poles: 2
Tightening torque [Nm]: 2.4
See full description
Price:
26,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

2P 20A 10x38 fuse switch disconnector

Technical data

  • Rated frequency [Hz]
    50
  • Tightening torque [Nm]
    2.4
  • Level of security
    IP20
  • Fuse link size
    10.3x38
  • Mechanical durability (number of cycles)
    5000
  • Rated switching voltage [V]
    380
  • Fuse link rated current [A]
    0.5/1/2/4/6/8/10/12/16/20
  • storage temperature [°C]
    from -25 to 80
  • Conductor cross-section (wire) [mm²]
    16
  • Number of poles
    2
  • Rated current [A]
    20
  • Connection type
    With a screw
  • Electrical endurance (number of cycles)
    2000
  • Operating temperature range [°C]
    from -5 to 40
  • Number of modules
    2
  • Beacon
    NO
  • Wire cross-section (cord) [mm²]
    10
  • PKWIU
    27.12.21.0

Other technical data

  • Version as main switch
    Yes
  • Number of poles
    2
  • Type of electrical connection of main circuit
    Screw connection
  • Suitable for front mounting
    No
  • Type of control element
    Other
  • Version as emergency stop installation
    No
  • Version as safety switch
    No
  • With error protection
    No
  • Suitable for floor mounting
    Yes
  • Suitable for busbar mounting
    No
  • Motor drive optional
    No
  • Degree of protection (IP), front side
    IP20

Manufacturer details

  • Manufacturer
    HAGER POLO Sp. z o. o.
  • Address
    43-100 Tychy Fabryczna 10
  • Tax identification number
    6460015532

Bulk packaging

A kind of package Karton Pakiet Paleta Karton Pakiet Paleta
Quantity 6 pcs. 72 pcs. 1728 pcs. 6 pcs. 72 pcs. 1728 pcs.
Weight (kg) 1,048 12,825 330,800 1,048 12,825 330,800
Width (m) 0,097 0,321 0,800 0,097 0,321 0,800
Length (m) 0,082 0,237 1,098 0,082 0,237 1,098
Depth (m) 0,228 0,368 1,200 0,228 0,368 1,200

Files to download

L96200.pdf
