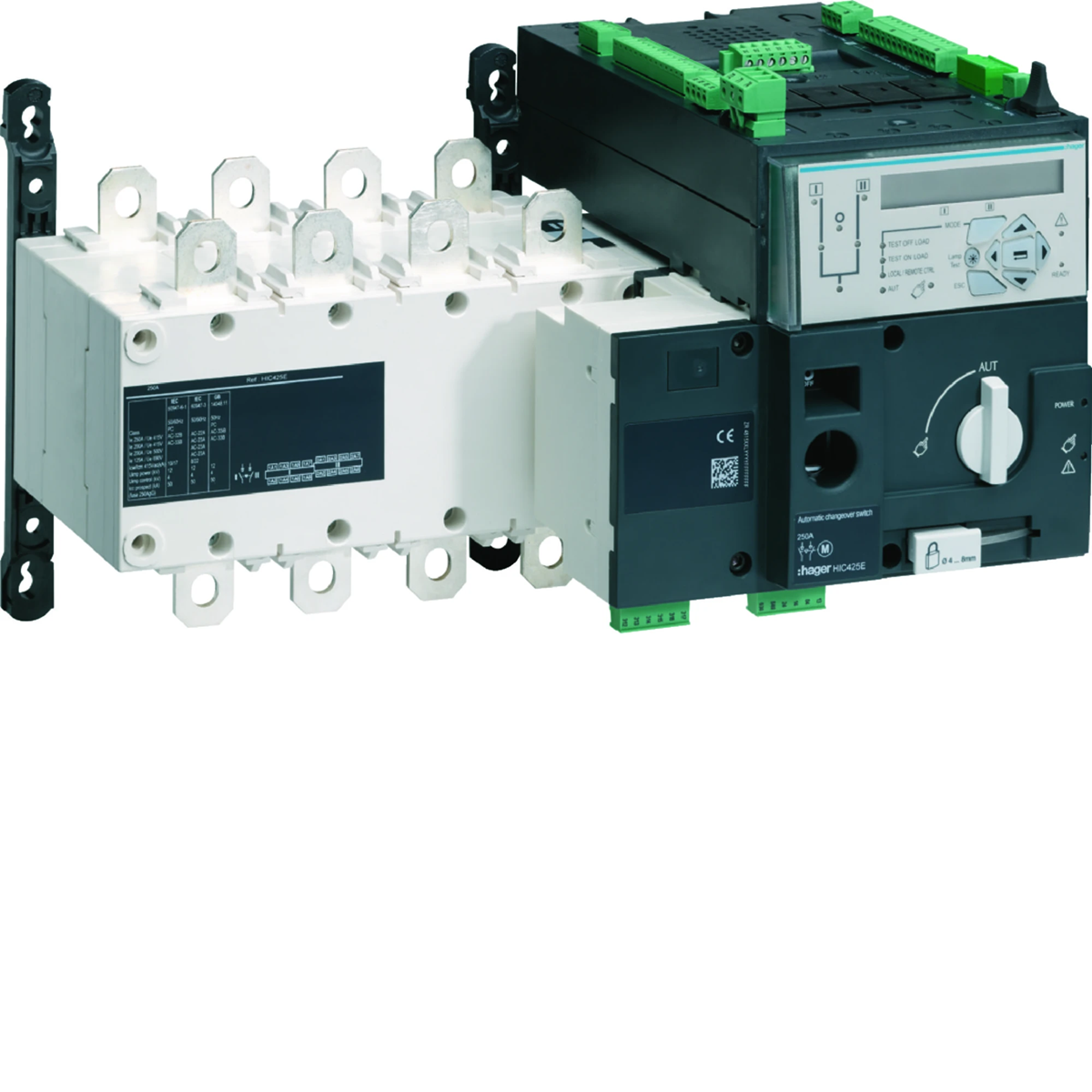

250A automatic power switch HIC425E

Name: 250A automatic power switch
Brand: HAGER
SKU: ALM103HAGE
Price: 17430.38 PLN
Availability: BackOrder

Index local:

ALM103HAGE

Numéro de catalogue:

HIC425E

Code EAN:

3250613131784

Cliquer sur la photo pour l'agrandir

Producteur: HAGER

Rated frequency [Hz]: 60

Number of poles: 4

Rated current [A]: 250

Voir la description complète

Prix:

17 430,38 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 4 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Automatic power switch with 250A electromagnetic drive is perfectly adapted to meet the current requirements resulting from everyday electrical installation practice. Various connection options and a wide range of equipment allow for the implementation without much effort, even unusual solutions on the implemented facilities.

Données techniques

Rated frequency [Hz]

60
Rated current [A]

250
Connection type

Vice
PKWIU

27.33.11.0

Number of poles

4
Level of security

IP00
Rated switching voltage [V]

380/415

Autres données techniques

Version as main switch

Yes
Version as safety switch

Yes
Version as reversing switch

Yes
Max. rated operation voltage Ue AC

415 V
Rated permanent current Iu

250 A
Rated permanent current at AC-21, 400 V

250 A
Rated operation power at AC-23, 400 V

90 kW
Conditioned rated short-circuit current Iq

50 kA
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as change-over contact

0
Motor drive integrated

Yes
Device construction

Built-in device fixed built-in technique
Suitable for front mounting centre

No
Suitable for intermediate mounting

No
Type of control element

Other
Type of electrical connection of main circuit

Cable clamp
Degree of protection (IP), front side

IP00
Width

378 mm
Depth

239 mm

Version as maintenance-/service switch

Yes
Version as emergency stop installation

No
Number of switches

1
Rated operating voltage

380 ... 415 V
Rated permanent current at AC-23, 400 V

200 A
Rated short-time withstand current lcw

15 kA
Switching power at 400 V

164 kW
Number of poles

4
Number of auxiliary contacts as normally open contact

1
Motor drive optional

No
Voltage release optional

No
Suitable for front mounting 4-hole

No
Suitable for distribution board installation

Yes
Colour control element

Other
Interlockable

Yes
With pre-assembled cabling

No
Degree of protection (NEMA)

Other
Height

244 mm

Détails du fabricant

Producteur

Hager Electro S.A.S.
Adresse

FR 67215 Obernai 123 boulevard d’Europe Francja
E-mail

wsparcie.klienta@hager.com

Emballage en vrac

Une sorte de paquet	Karton	Paleta
Quantité	1 pcs.	10 pcs.
poids (kg)	12,290	145,900
Largeur (m)	0,390	0,800
Longueur (m)	0,300	1,050
Profondeur (m)	0,580	1,200
