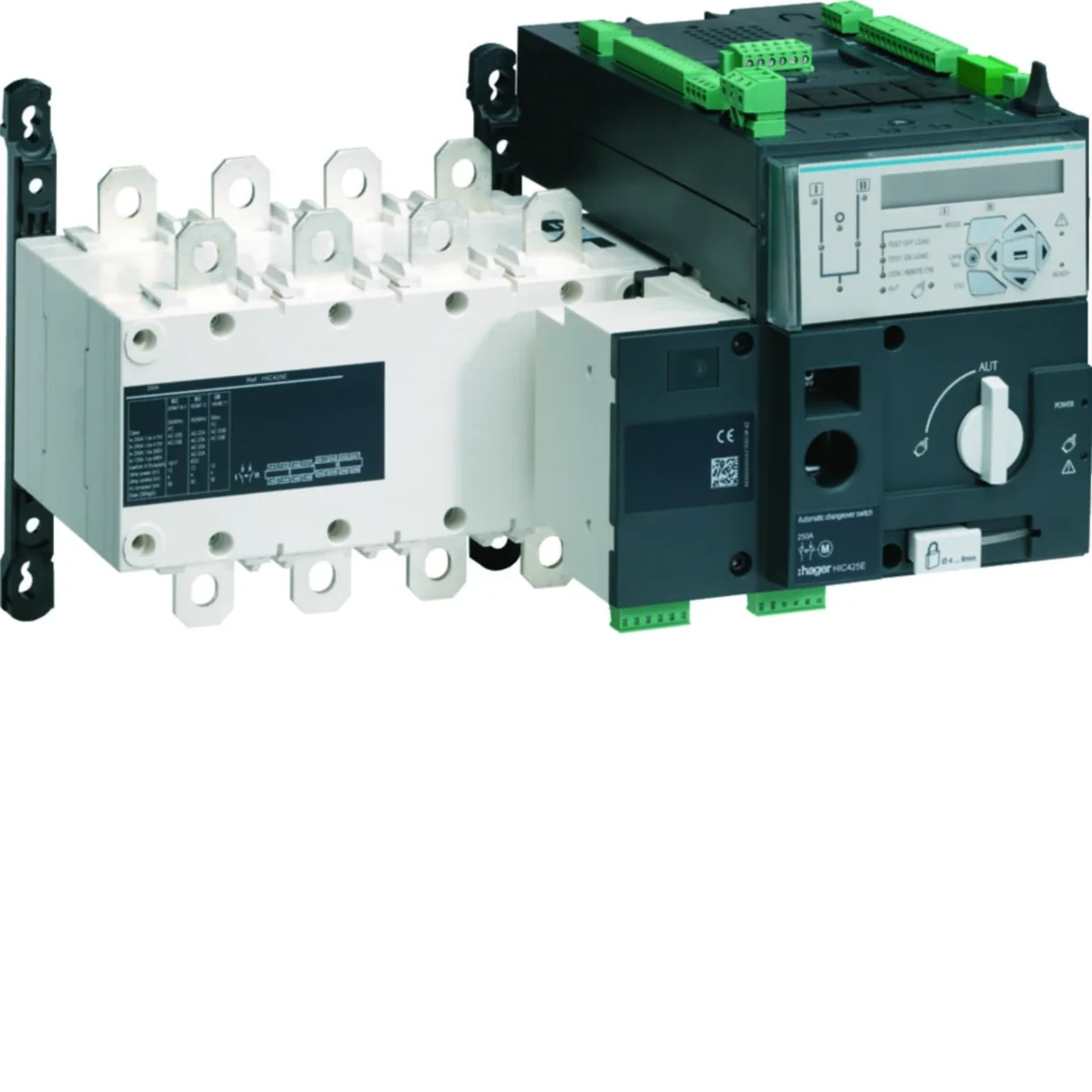

2500A automatic power switch HIC494E
Lokaler Index:
ALM119HAGE
Katalognummer:
HIC494E
EAN-Code:
3250613131944
Preis:
112 657,55 zł
gross / stk.
(inklusive MwSt 23%)
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
Automatic power switch with 2500A electromagnetic drive is perfectly adapted to meet the current requirements resulting from everyday electrical installation practice. Various connection options and a wide range of equipment allow for the implementation without much effort, even unusual solutions on the implemented facilities.
Technische Daten
-
Rated frequency [Hz]60
-
Rated current [A]2500
-
Connection typeVice
-
PKWIU27.33.11.0
-
Number of poles4
-
Level of securityIP00
-
Rated switching voltage [V]380/415
Weitere technische Daten
-
Version as main switchYes
-
Version as safety switchYes
-
Version as reversing switchYes
-
Max. rated operation voltage Ue AC415 V
-
Rated permanent current Iu2500 A
-
Rated short-time withstand current lcw78 kA
-
Switching power at 400 V1645 kW
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedYes
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementOther
-
Type of electrical connection of main circuitCable clamp
-
Degree of protection (NEMA)Other
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage380 ... 415 V
-
Rated permanent current at AC-21, 400 V2500 A
-
Rated operation power at AC-23, 400 V720 kW
-
Number of poles4
-
Number of auxiliary contacts as normally open contact2
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementOther
-
InterlockableYes
-
Degree of protection (IP), front sideIP00
Hersteller-Details
-
HerstellerHager Electro S.A.S.
-
AdresseFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-Mail
Großpackungen
| Eine Art Paket | Karton |
| Menge | 1 stk. |
| Gewicht (kg) | 78,700 |
| Breite (m) | 0,800 |
| Länge (m) | 0,600 |
| Tiefe (m) | 0,730 |
