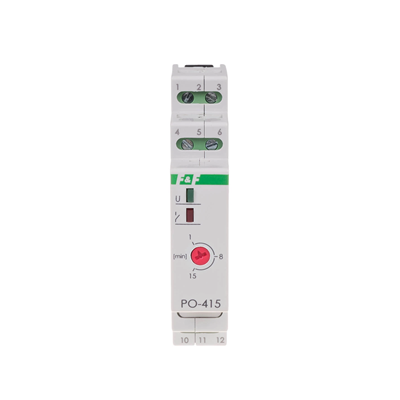

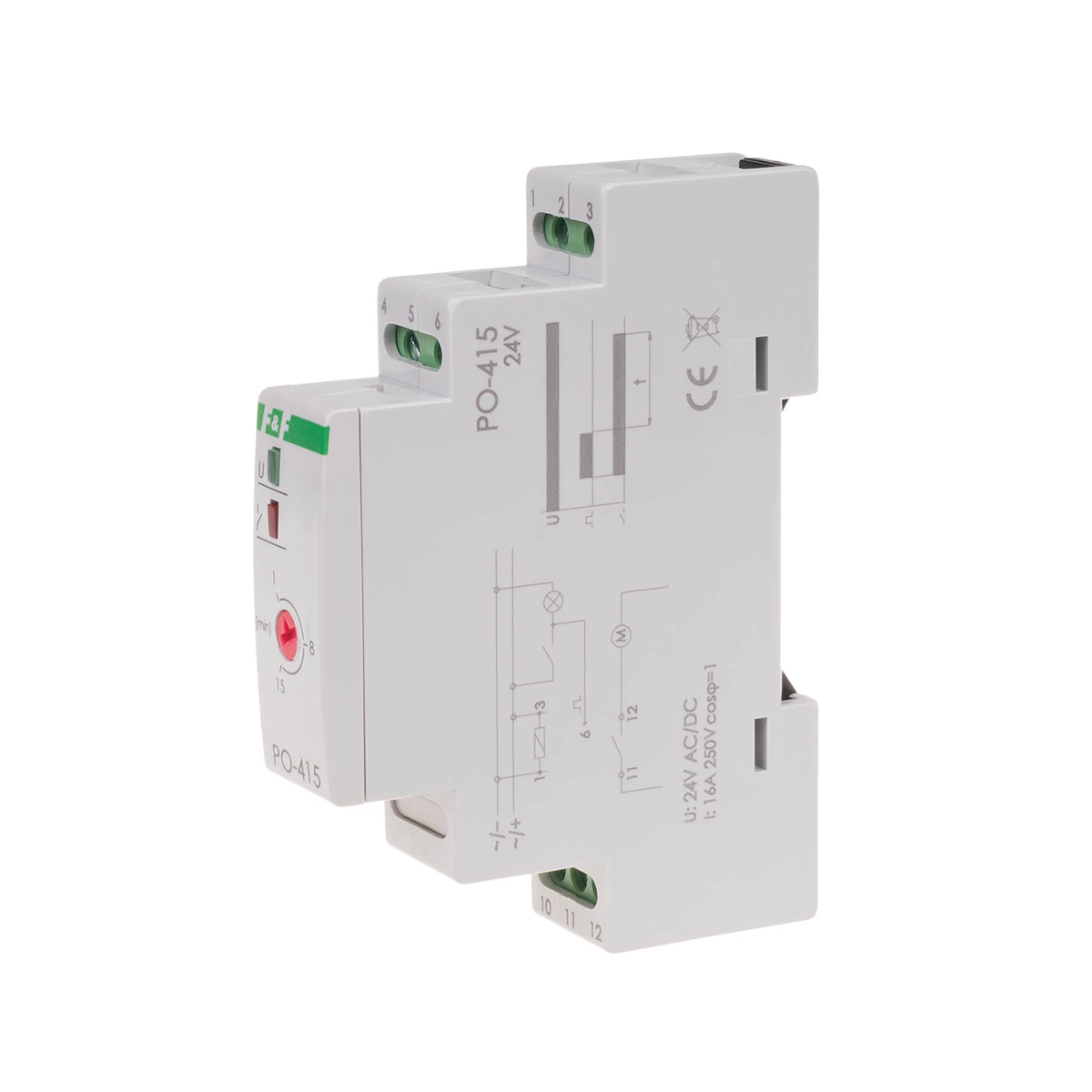

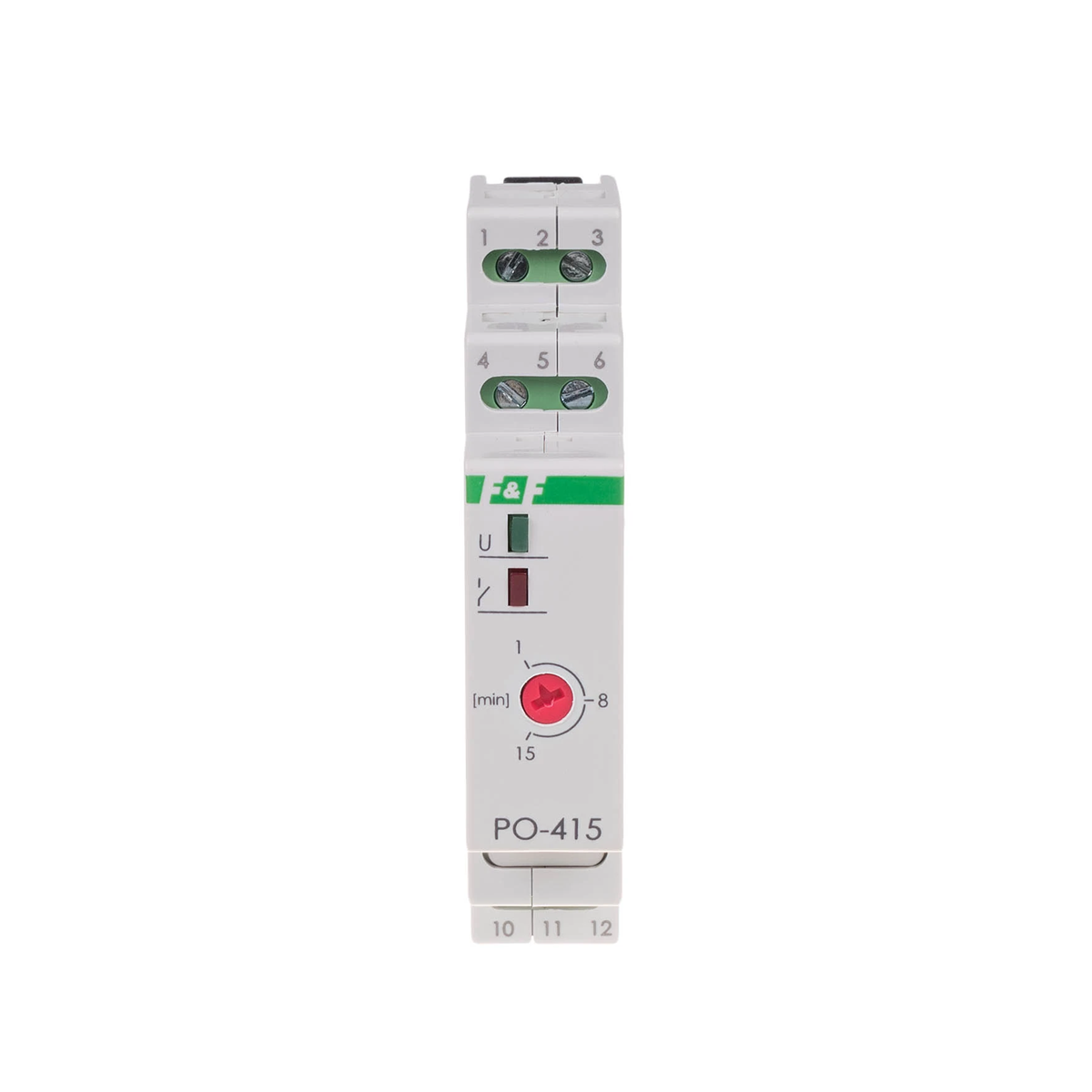

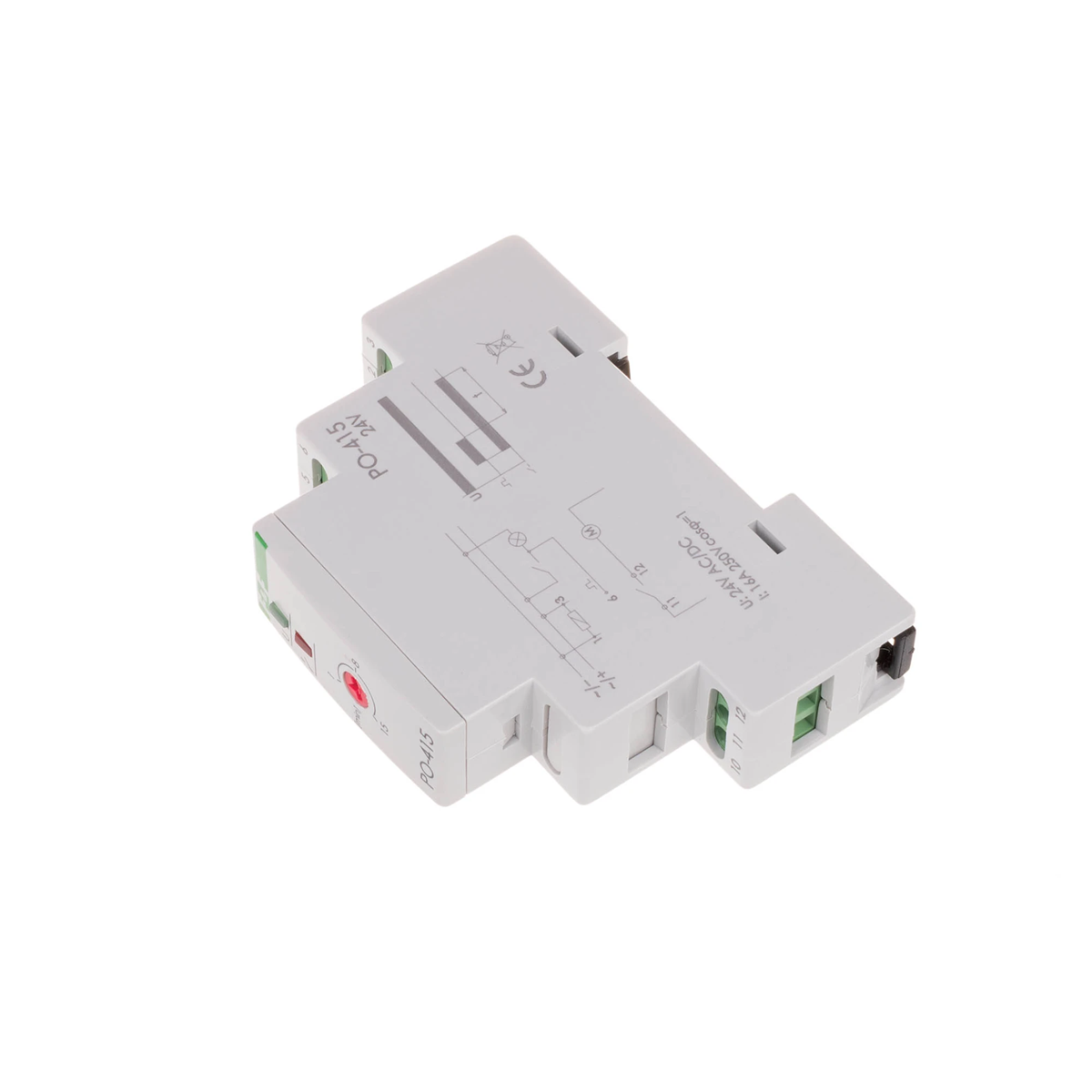

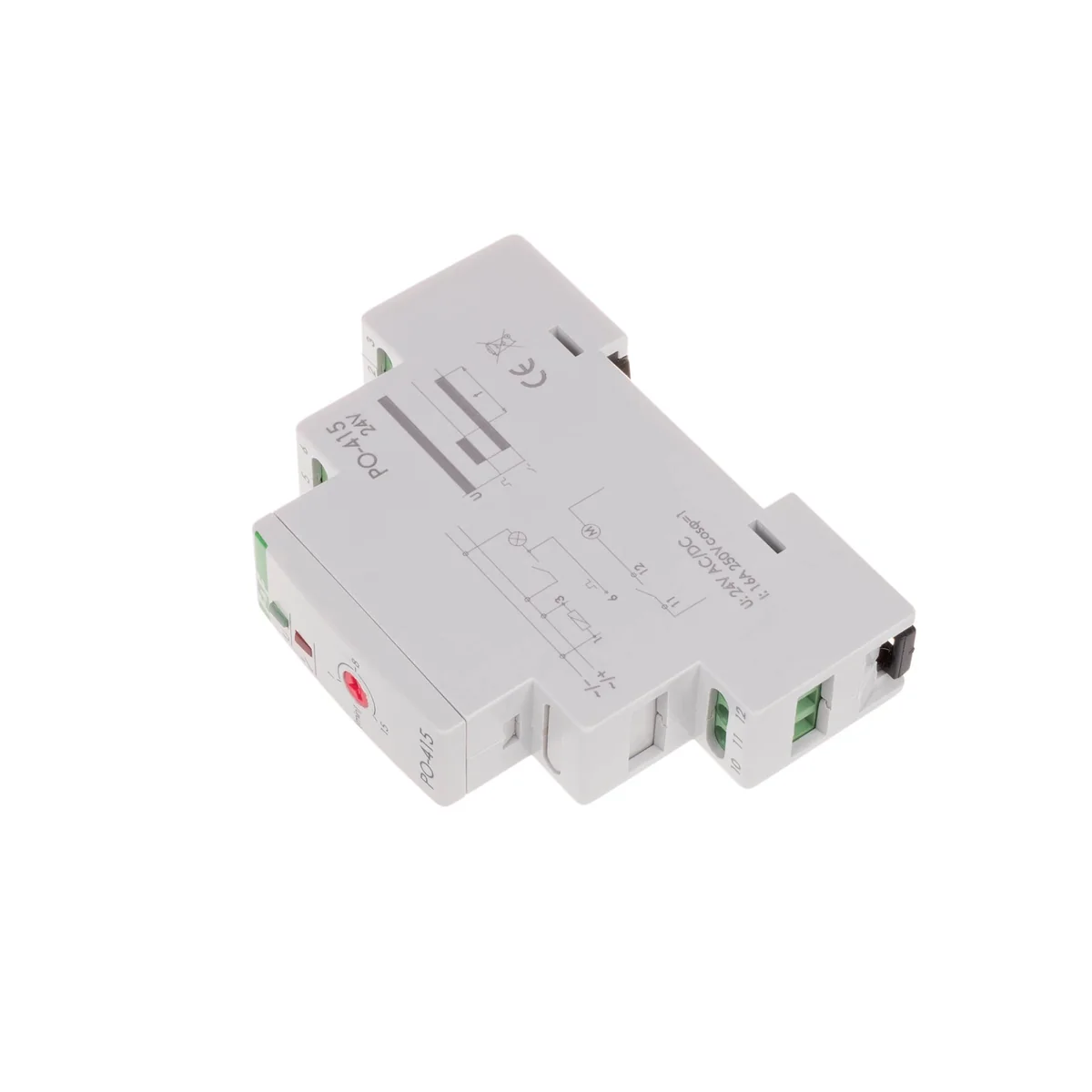

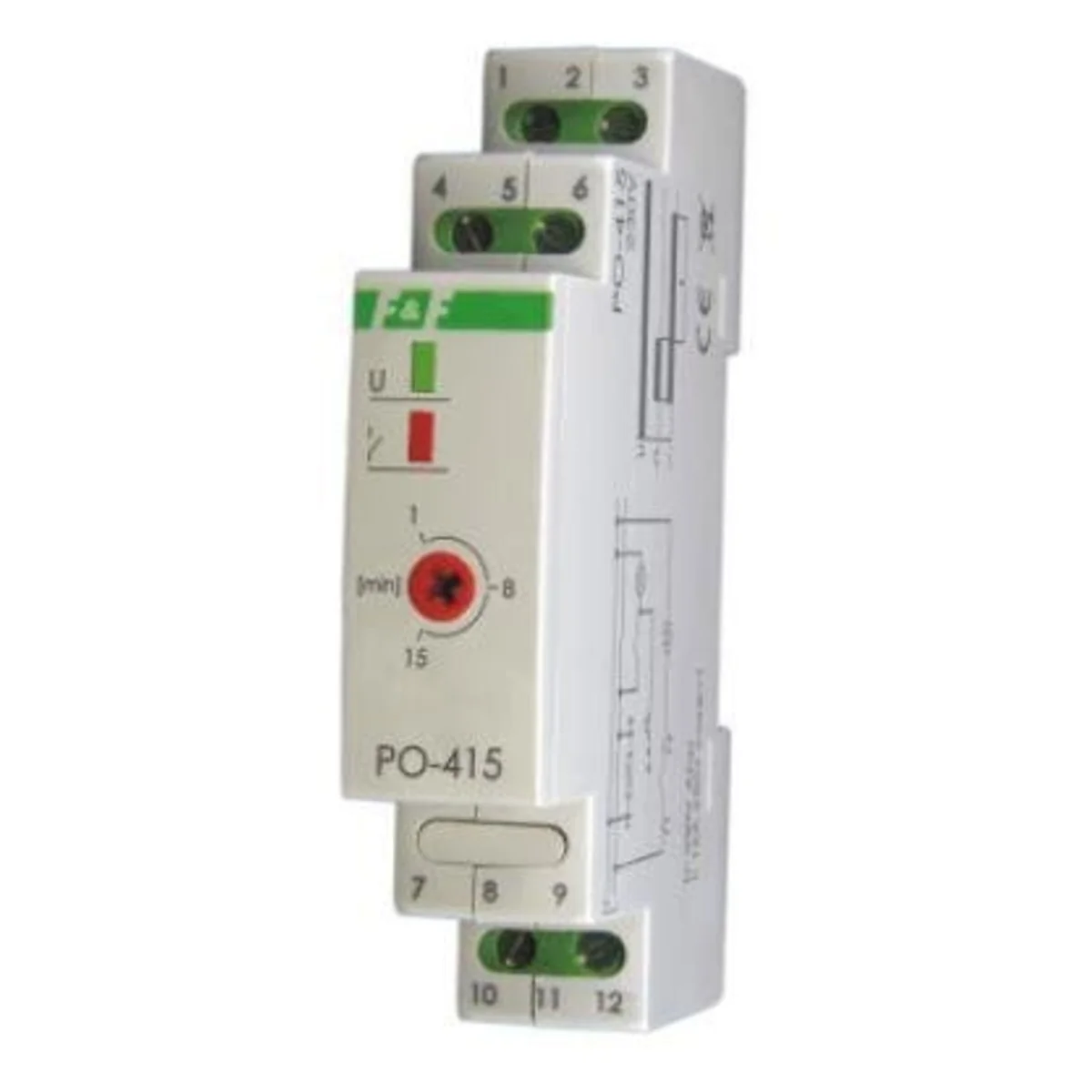

24V time relay with drop-delay PO-415-24V-1-60S
local index:
APC011FIFQ
Catalog No:
PO-415-24V-1-60S
EAN code:
5908312590309
Price:
29,06 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Time relays with delayed drop-out are used to maintain the power supply of the controlled receiver for a specified time after the control voltage decay, e.g. in bathroom ventilation systems, where the operation of the fan - switched on together with the lighting - is maintained for a specified time after the lighting is turned off.
Technical data
-
Backup time [min]1-15
-
Power [W]0.56
-
load current [A]<10
-
Working temperature [°C]-25-50
-
Power [V]24
-
Package width [mm]20
-
PKWIU27.12.24.0
-
Number of contacts0NO 0NC
-
Control pulse current [mA]<300
-
SignalingLED green/red
-
Dimensions1 module (18mm)
-
Package height [mm]150
-
Package weight [kg]0.2
Other technical data
-
Type of electric connectionScrew connection
-
Time range1 ... 60 s
-
Width18 mm
-
Depth65 mm
-
Function delay on de-energizationYes
-
Number of outputs, undelayed, normally open contact1
-
Height90 mm
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,067 |
| Width (m) | 0,019 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
