230V LED automatic staircase automatic switch with off signaling and anti-blocking device AS-220T

Name: 230V LED automatic staircase automatic switch with off signaling and anti-blocking device
Brand: F&F
SKU: APC042FIFQ
Price: 121.84 PLN
Availability: InStock

Index local:

APC042FIFQ

Numéro de catalogue:

AS-220T

Code EAN:

5902431674148

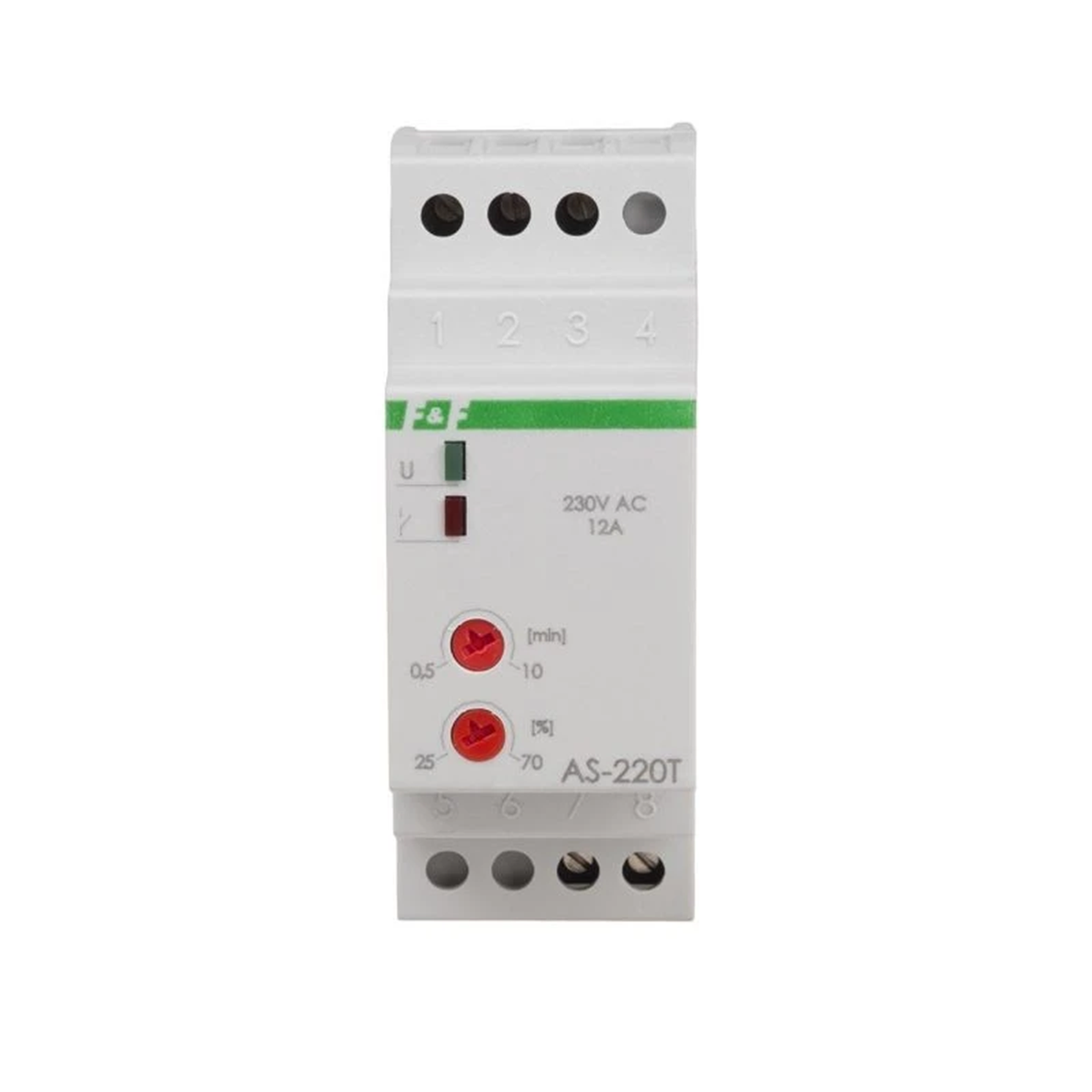

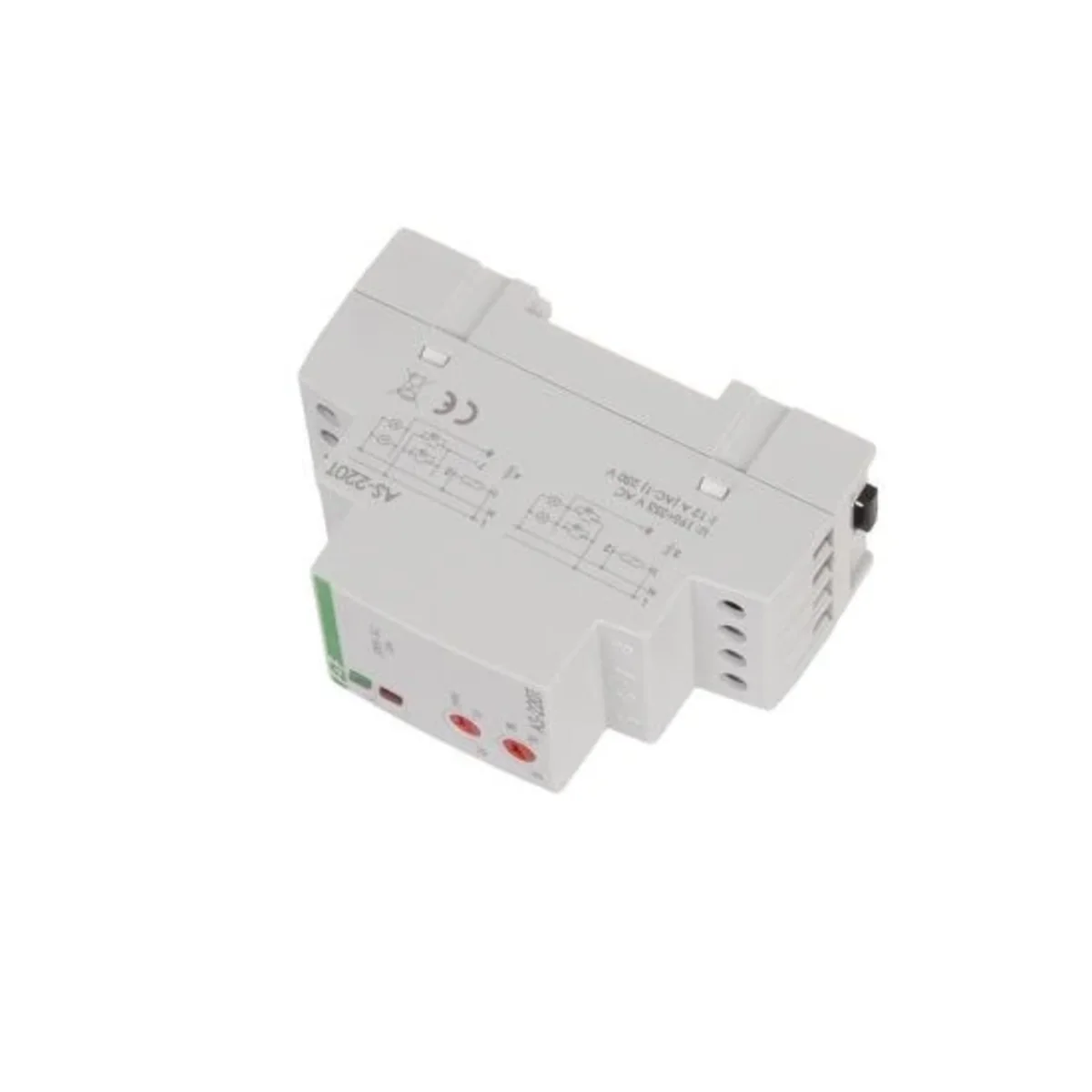

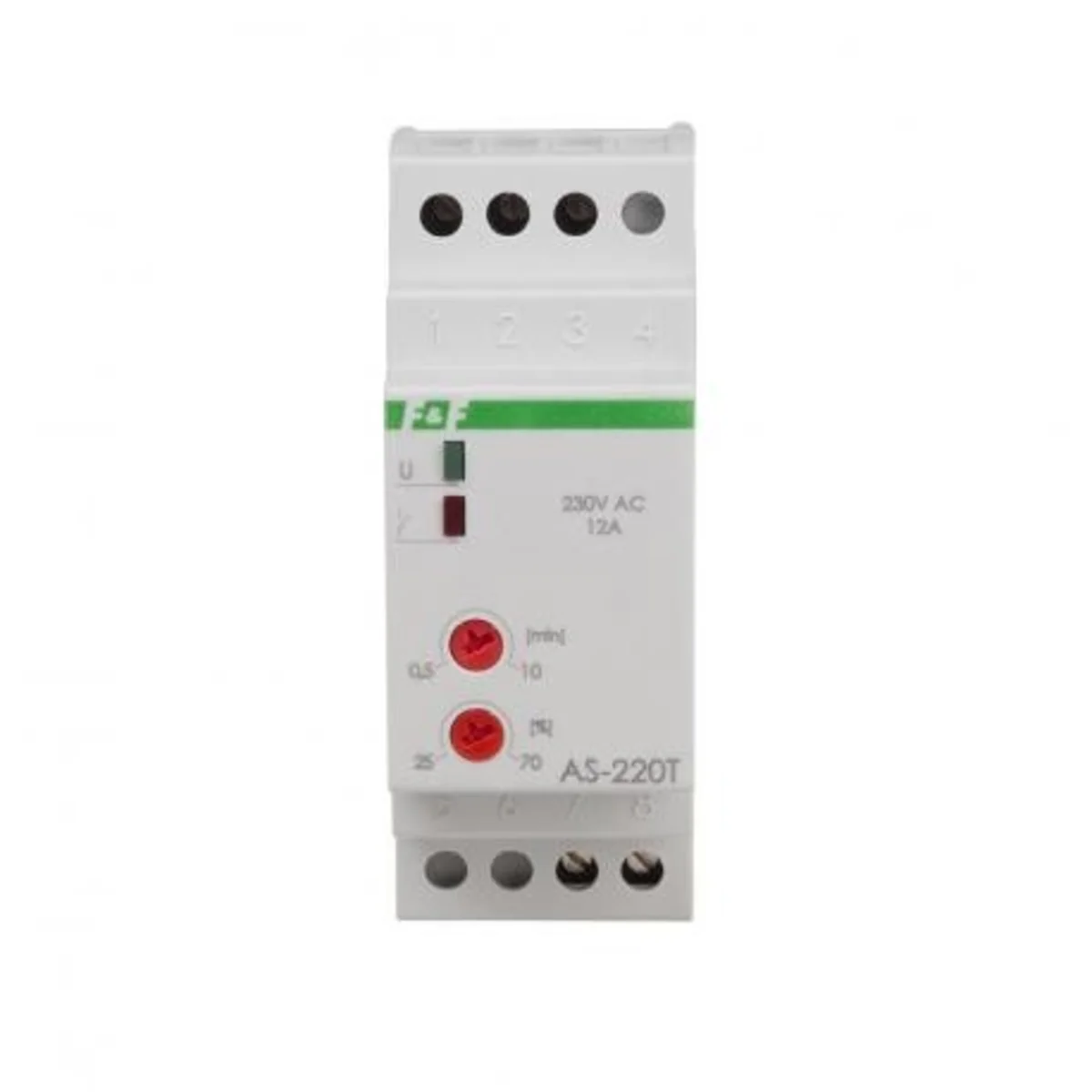

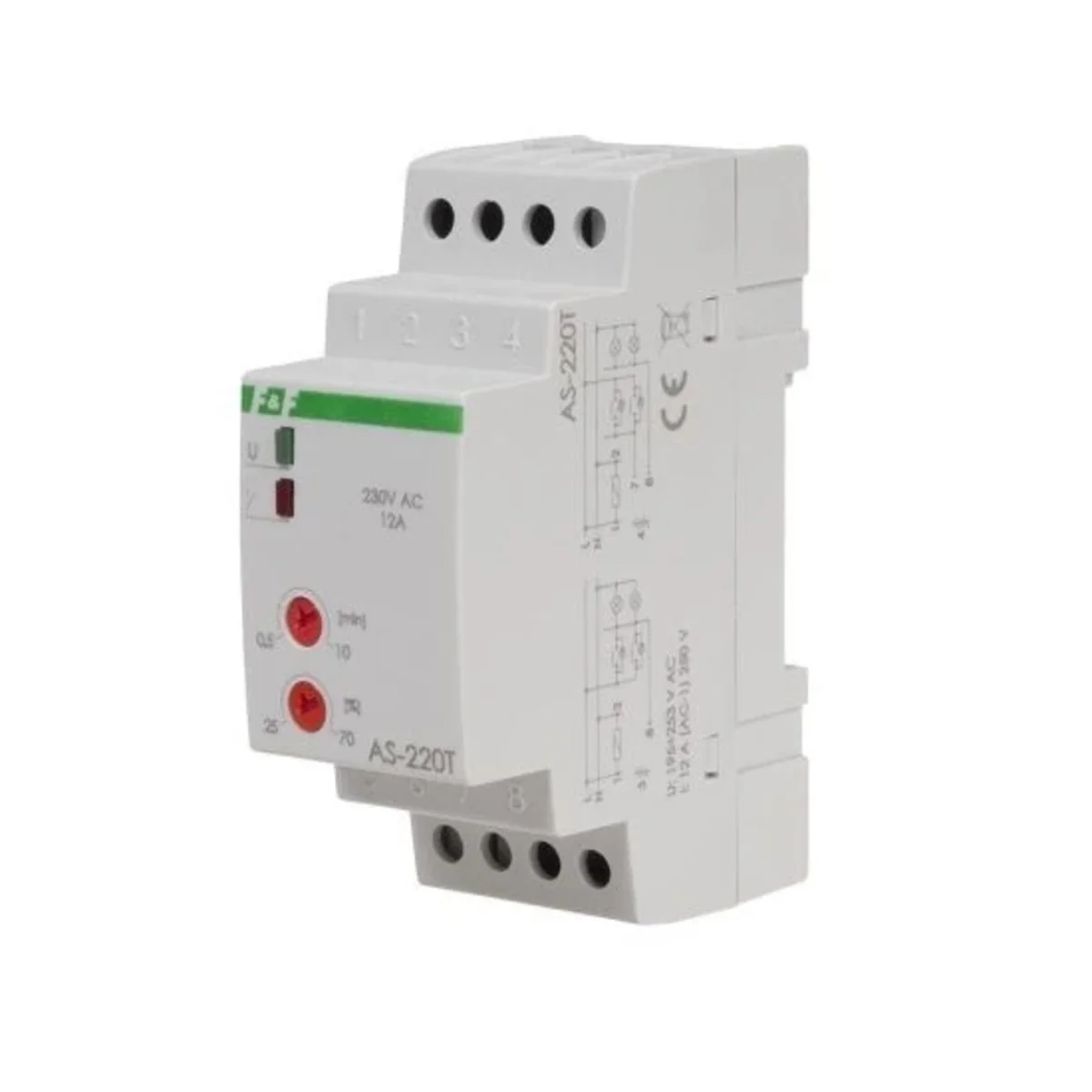

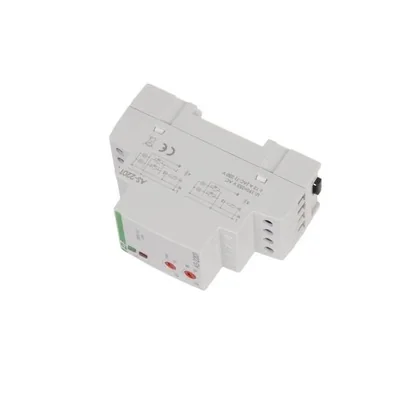

230V LED automatic staircase automatic switch with off signaling and anti-blocking device

Cliquer sur la photo pour l'agrandir

Producteur: F&F

Rated voltage [V]: 230

AC rated voltage [V]: 230

Voir la description complète

Prix:

121,84 zł

gross / pcs.

(y compris la TVA 23%)

Accessible 20 pcs.

Quantité pcs.

(plusieurs:

1

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Fichiers à télécharger

Description du produit

230V AC LED staircase timer with switch-off signaling and anti-block, from the F&F manufacturer. The product part number is AS-220T.

Données techniques

Rated voltage [V]

230
PKWIU

27.12.24.0

AC rated voltage [V]

230

Autres données techniques

Function

Electronic with switching-off pre-warning
Width in number of modular spacings

2
Number of contacts as normally open contact

1
Number of contacts as change-over contact

0
Type of control voltage 1

AC/DC
Rated switch current

12 A
Release-delay

0.5 ... 10 min
Wiring system

3 and 4 wire configuration
Repetitive

Repetitive
Voltage type (supply voltage)

AC/DC
Max. load fluorescent lamp

600 VA
Max. load fluorescent lamp (parallel compensated)

600 VA
Power consumption

1 W

Mounting method

DIN rail
Built-in depth

60 mm
Number of contacts as normally closed contact

0
Control voltage 1

195 ... 253 V
Frequency control voltage 1

50 ... 50 Hz
Max. switching current (cos phi = 0.6)

10 A
Push button glow-lamp current

3 mA
Pre-warning of switching-off

Dimming up to 50 %
Supply voltage

195 ... 253 V
Max. incandescent lamp load

1500 W
Max. load fluorescent lamp (Duo circuit)

650 VA
Max. switching power LED

200 W

Détails du fabricant

Producteur

F&F Filipowski S.K.
Adresse

95-200 Pabianice Konstantynowska 79/81 Polska
E-mail

biuro@fif.com.pl
