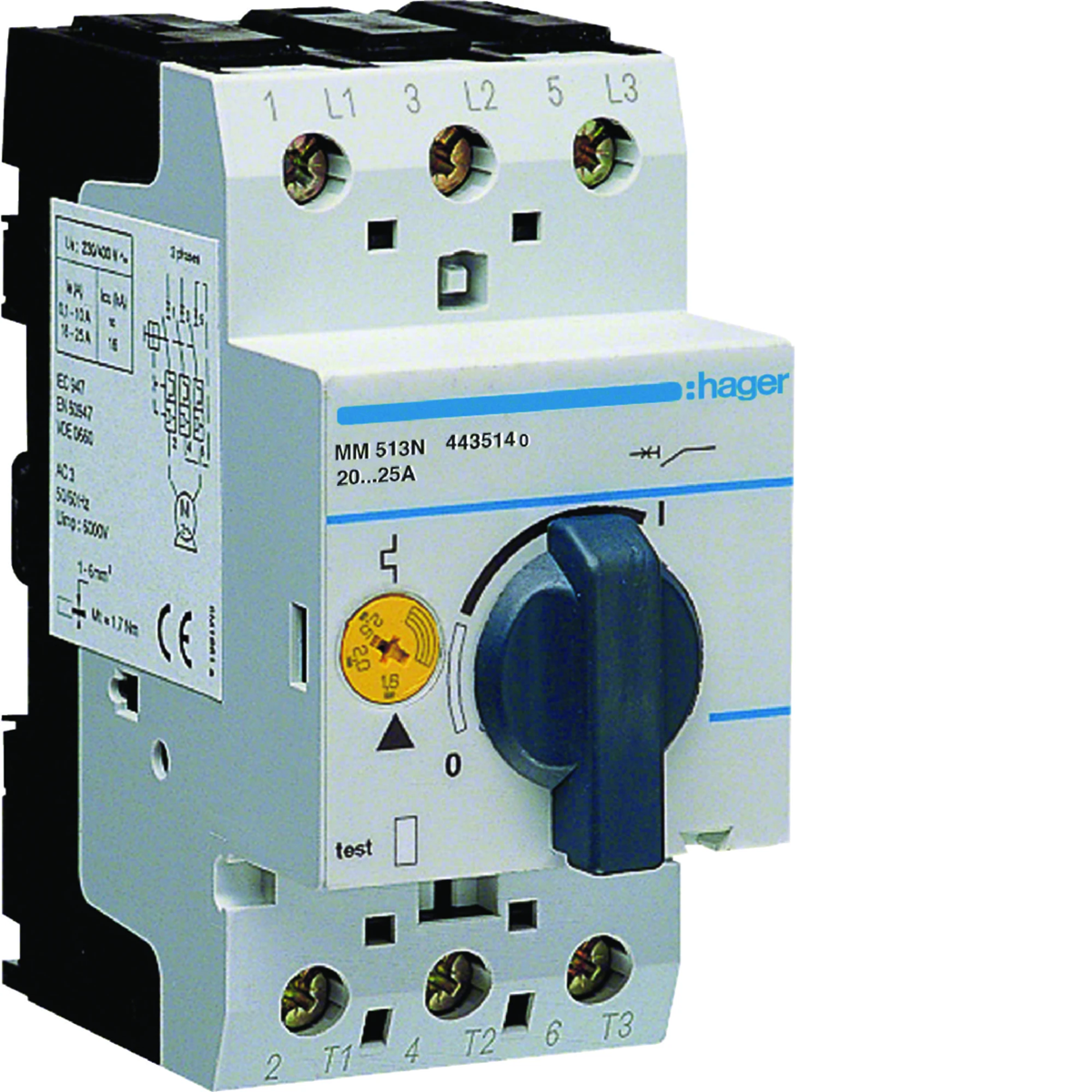

20-25A motor circuit breaker, type K MM513N

Name: 20-25A motor circuit breaker, type K
Brand: HAGER
SKU: ALI219HAGE
Price: 114.80 PLN

Index local:

ALI219HAGE

Numéro de catalogue:

MM513N

Code EAN:

3250614435263

Cliquer sur la photo pour l'agrandir

Producteur: HAGER

Rated frequency [Hz]: 40/60

Depth [mm]: 70

Number of poles: 3

Voir la description complète

Prix:

114,80 €

gross / pcs.

(y compris la TVA 23%)

Livraison en 3h

jusqu'à 4 semaines (jours ouvrables)

Ramassage en 1h

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Motor circuit breakers:
• for protection of 1- or 3-phase motors
• tripping characteristic K
• rated voltage 230V~
• rated current range from 0.1 A to 25 A
• with thermal and electromagnetic release
• thermo-electromagnetic circuit breaker with adjustable bimetallic relay
• additional auxiliary contact
can be added and undervoltage release
• standard: VDE 0660 part 102
• cage clamps:
- wire up to 6 mm²
- stranded up to 4 mm²

Données techniques

Rated frequency [Hz]

40/60
Number of poles

3
Rated insulation voltage [V]

690
power loss [W]

7
Working temperature [°C]

-25 to 55
Electrical endurance (number of cycles)

100000
Rated short-circuit breaking capacity according to IEC 947.2 50 Hz

20
Connection type

With a screw
AC rated voltage [V]

230/690

Depth [mm]

70
Tightening torque [Nm]

1.8
Rated current [A]

25
Width [mm]

45
Height [mm]

90
Mechanical durability (number of cycles)

100000
Rated impulse voltage [kV]

6
Number of modules

2.5
PKWIU

27.12.22.0

Autres données techniques

Overload release current setting

20 ... 25 A
With thermal overload protection

Yes
Switch off technique

Thermomagnetic
Rated permanent current Iu

25 A
Rated operation power at AC-3, 400 V

12.5 kW
Type of control element

Turn button
With integrated auxiliary switch

No
Number of poles

3
Degree of protection (IP)

IP20
Width

45 mm

Adjustment range undelayed short-circuit release

310 ... 465 A
Phase failure sensitive

Yes
Rated operating voltage

690 ... 690 V
Rated operation power at AC-3, 230 V

5.5 kW
Type of electrical connection of main circuit

Screw connection
Device construction

Built-in device fixed built-in technique
With integrated under voltage release

No
Rated short-circuit breaking capacity lcu at 400 V, AC

50 kA
Height

140 mm
Depth

75 mm

Détails du fabricant

Producteur

Hager Electro S.A.S.
Adresse

FR 67215 Obernai 123 boulevard d’Europe Francja
E-mail

wsparcie.klienta@hager.com

Emballage en vrac

Une sorte de paquet	Karton	Pakiet	Paleta
Quantité	1 pcs.	48 pcs.	1152 pcs.
poids (kg)	0,300	14,590	350,200
Largeur (m)	0,080	0,310	0,800
Longueur (m)	0,050	0,220	1,050
Profondeur (m)	0,090	0,360	1,200
