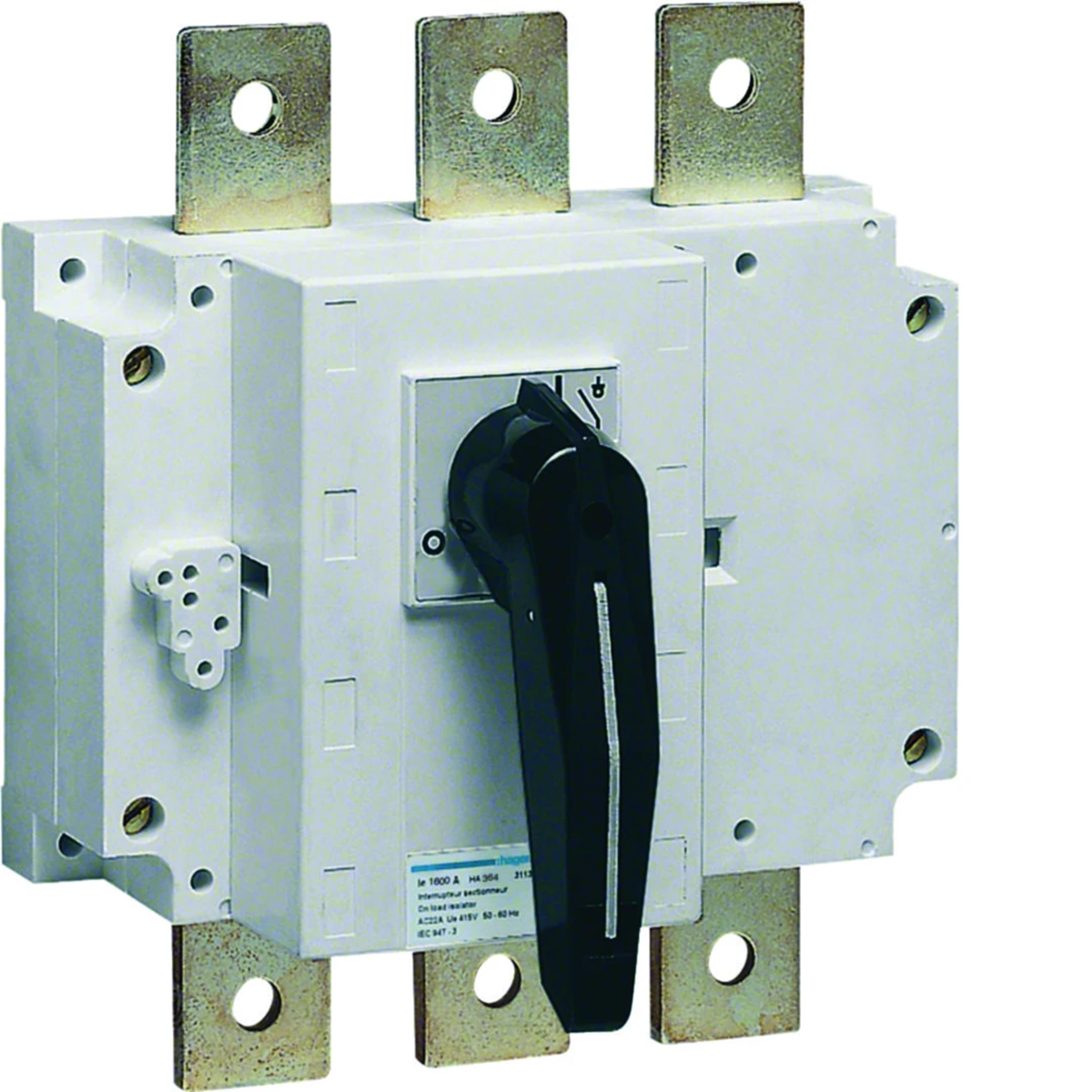

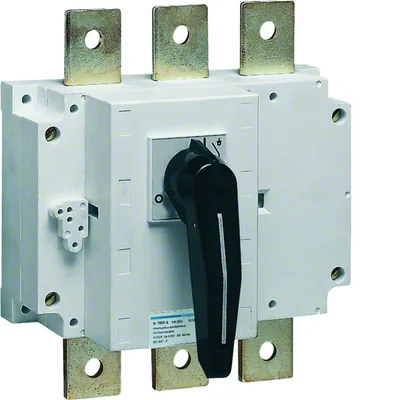

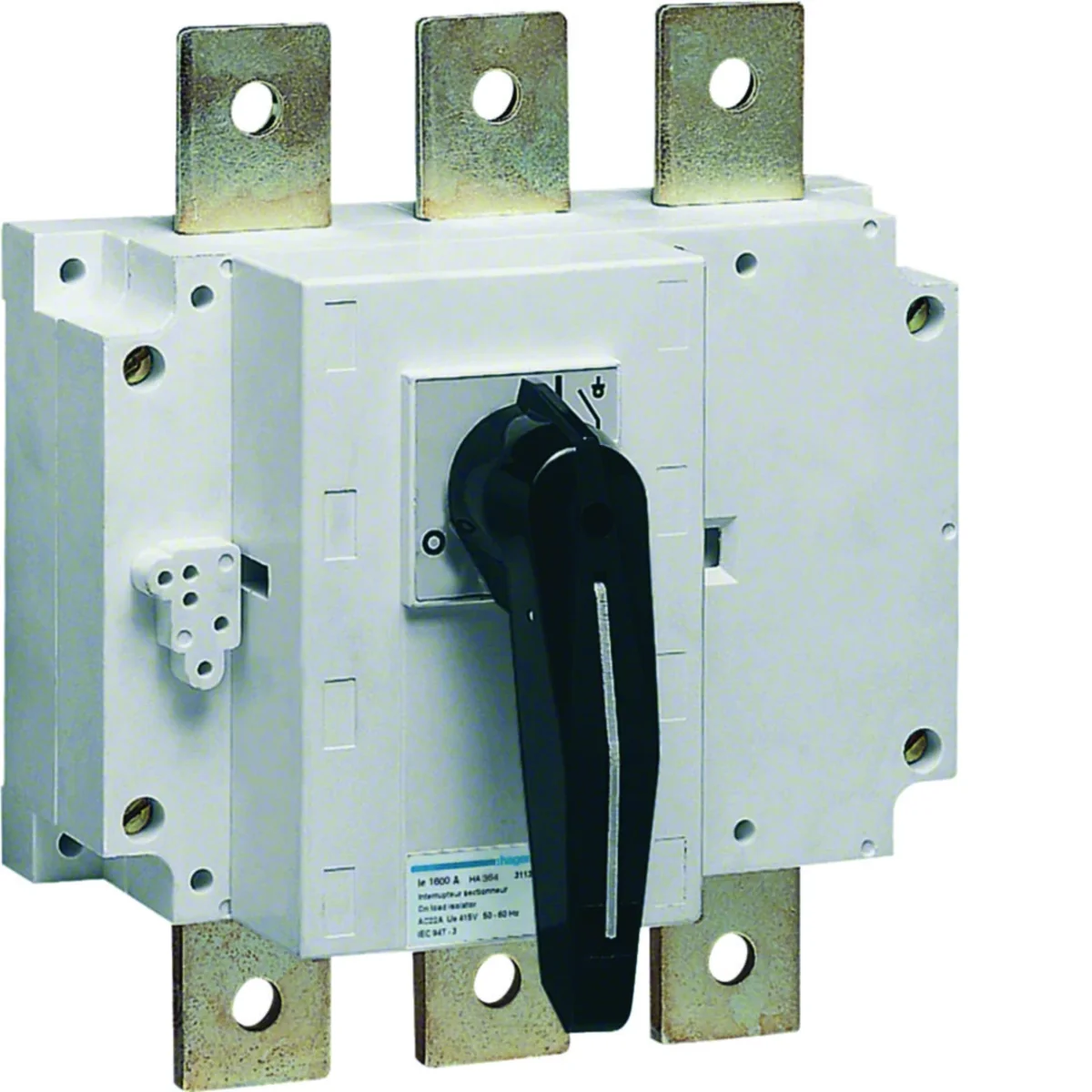

1600A three-pole load switch HA364
local index:
ALM053HAGE
Catalog No:
HA364
EAN code:
3250613119690
Price:
3275,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Isolating Load Switch. It is perfectly adapted to meet current requirements resulting from everyday electrical installation practice.
Current:
- Current carrying capacity of AC21 in category A: 1600 A ,
- Rated operational current (AC23), category A: 1000 A,
- Current carrying capacity AC21 category B: 1600 A,
- Allowable current load AC22 category A: 1250 A,
- Current rating AC22 category B: 1250 A,
- Rated operational current (AC23), category B: 1000 A,
- Short-circuit current with gI-gG fuses: 50 kA,
- Rated short-time withstand current Icw: 50 kA,
- Rated short-time withstand current 1s: 50 kA.
- Rated power below 660 V, 50 Hz.: 475 kW,
- Active power below 380/415 V, 50 Hz: 560 kW,
- Rated switching power for rated voltage 400V for AC1: 1053 kW,
- Total power loss for rated current: 366 W, < li> Power loss per pole for rated current: 122 W.
Power:
Technical data
-
Number of poles3
-
Rated current [A]1600
-
power loss [W]366
-
Connection typeVice
-
Rated switching voltage [V]380/415
-
Rated operational current [A]1000
-
PKWIU27.12.22.0
-
Rated insulation voltage [V]1000
-
Level of securityIP00
-
Power loss per pole [W]122
-
Mechanical durability (number of cycles)3000
-
Rated surge voltage [V]8000
-
Conductor cross-section (wire) [mm²]6 x 240
Other technical data
-
Version as main switchYes
-
Version as safety switchYes
-
Version as reversing switchYes
-
Rated operating voltage380 ... 415 V
-
Rated permanent current at AC-21, 400 V1600 A
-
Rated operation power at AC-23, 400 V562 kW
-
Conditioned rated short-circuit current Iq50 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedYes
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeYes
-
Suitable for distribution board installationYes
-
Colour control elementBlack
-
InterlockableYes
-
Degree of protection (IP), front sideIP00
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationYes
-
Max. rated operation voltage Ue AC415 V
-
Rated permanent current Iu1600 A
-
Rated short-time withstand current lcw50 kA
-
Switching power at 400 V1053 kW
-
Number of poles3
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalYes
-
Voltage release optionalYes
-
Suitable for floor mountingYes
-
Suitable for front mounting centreYes
-
Suitable for intermediate mountingYes
-
Type of control elementLong turning handle
-
Type of electrical connection of main circuitCable clamp
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 24 pcs. |
| Weight (kg) | 12,200 | 12,800 | 330,200 |
| Width (m) | 0,610 | 0,400 | 0,800 |
| Length (m) | 0,350 | 0,235 | 1,050 |
| Depth (m) | 0,210 | 0,400 | 1,200 |
