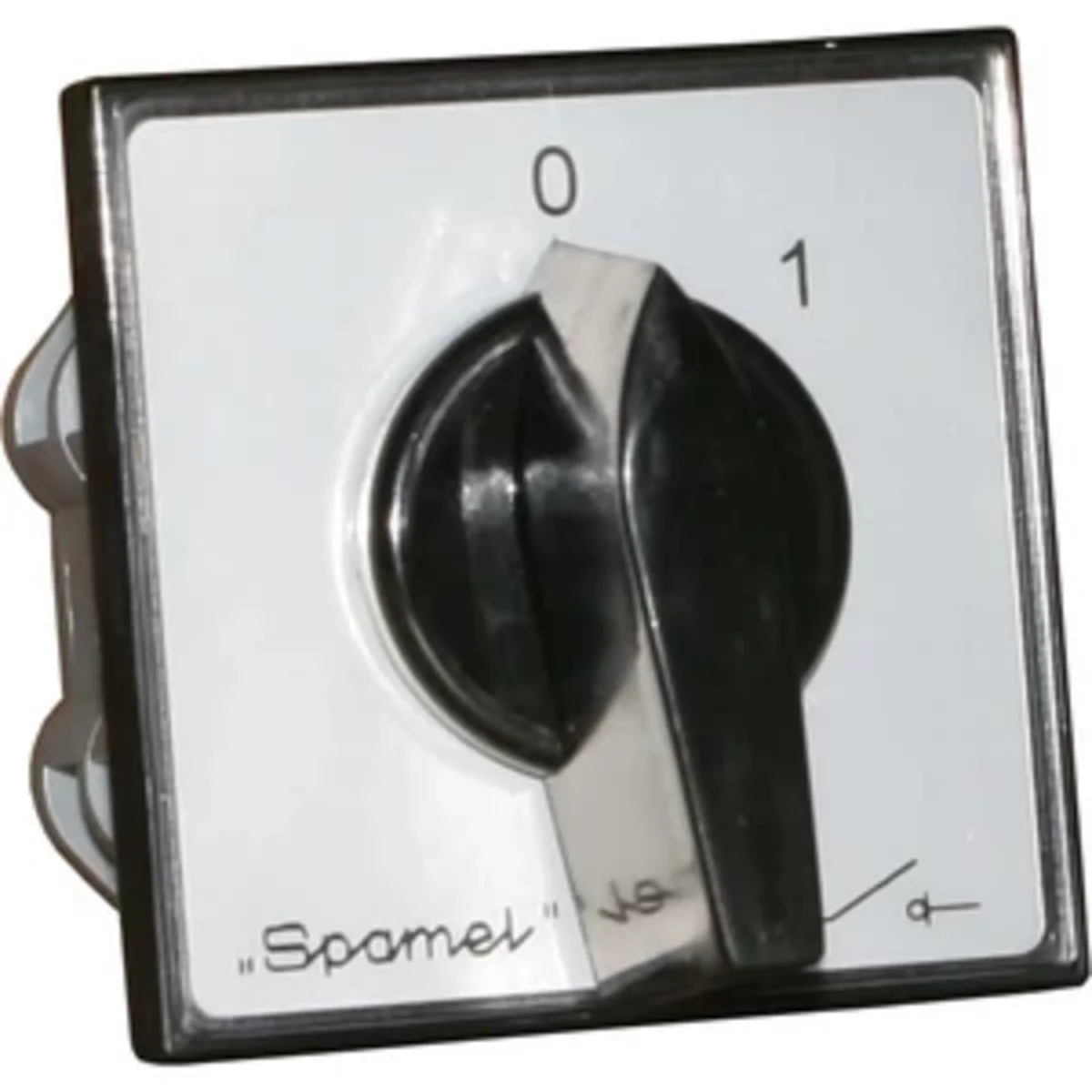

16 A cam switch, 0-1 four-pole switch disconnector, panel-mounted ŁK16R-2.8210\P03

local index:
ALK193SPAM
Catalog No:
ŁK16R-2.8210\P03
EAN code:
5907723003972
Manufacturer: SPAMEL
Continuous current [A]: 16
Level of security: IP65
Rated operational power at AC-3, 400 V [kW]: 3.5
Price:
16,10 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

16 A cam switch, 0-1 four-pole switch disconnector, panel-mounted

Technical data

  • Continuous current [A]
    16
  • Rated operational power at AC-3, 400 V [kW]
    3.5
  • Level of security
    IP65

Other technical data

  • Model
    Reverser
  • With zero (off) position
    Yes
  • Rated permanent current Iu
    16 A
  • Degree of protection (IP), front side
    IP65
  • Number of auxiliary contacts as normally open contact
    0
  • Suitable for floor mounting
    Yes
  • Suitable for distribution board installation
    No
  • Complete device in housing
    No
  • Type of control element
    Turn button
  • Number of poles
    4
  • With retraction in 0-position
    No
  • Rated operation power at AC-3, 400 V
    8 kW
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Suitable for front mounting
    No
  • Suitable for intermediate mounting
    Yes
  • Housing material
    Plastic
  • Type of electrical connection of main circuit
    Screw connection
