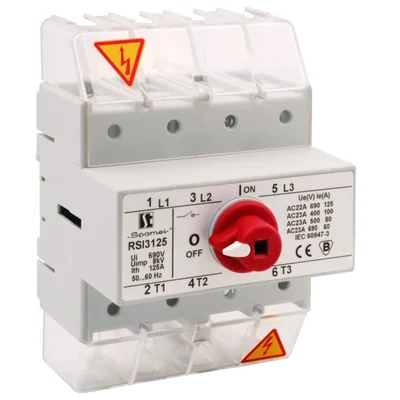

125A three-pole switch disconnector for external handle RSI-3125\W01
local index:
ALI005SPAM
Catalog No:
RSI-3125\W01
EAN code:
5907723009349
Manufacturer:
SPAMEL
Rated insulation voltage [V]: 690
Continuous current [A]: 125
Level of security: IP20
Price:
86,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
RSI compact switch disconnectors are designed for operation in circuits with a rated voltage of up to 690 V, in the AC-21A...AC-23A utilization categories and in DC circuits with a voltage of up to 220 V. The disconnectors can be installed in closed rooms (3 degree of pollution - industrial purpose), at the temperature from -40°C to +70°C.
Technical data
-
Rated insulation voltage [V]690
-
Level of securityIP20
-
Continuous current [A]125
Other technical data
-
Version as main switchYes
-
Version as safety switchNo
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC690 V
-
Rated operation power at AC-23, 400 V30 kW
-
Number of poles3
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
InterlockableNo
-
Degree of protection (IP), front sideIP20
-
Version as maintenance-/service switchNo
-
Version as emergency stop installationYes
-
Number of switches1
-
Rated permanent current Iu125 A
-
Conditioned rated short-circuit current Iq7.5 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationNo
-
Type of control elementTurn button
-
Type of electrical connection of main circuitScrew connection
