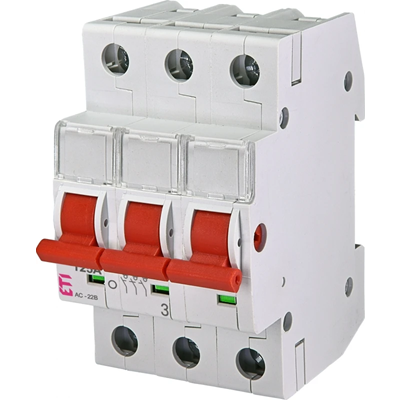

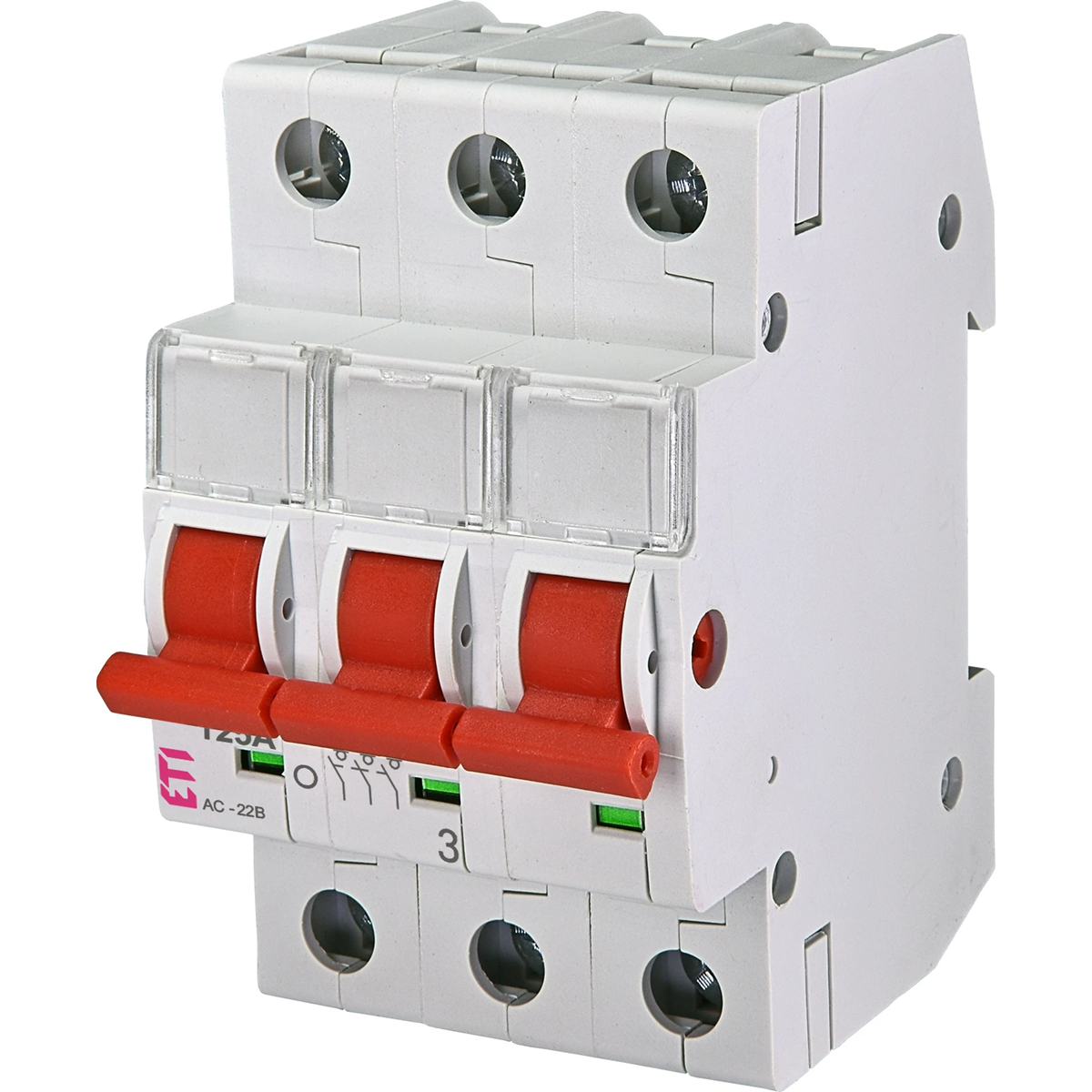

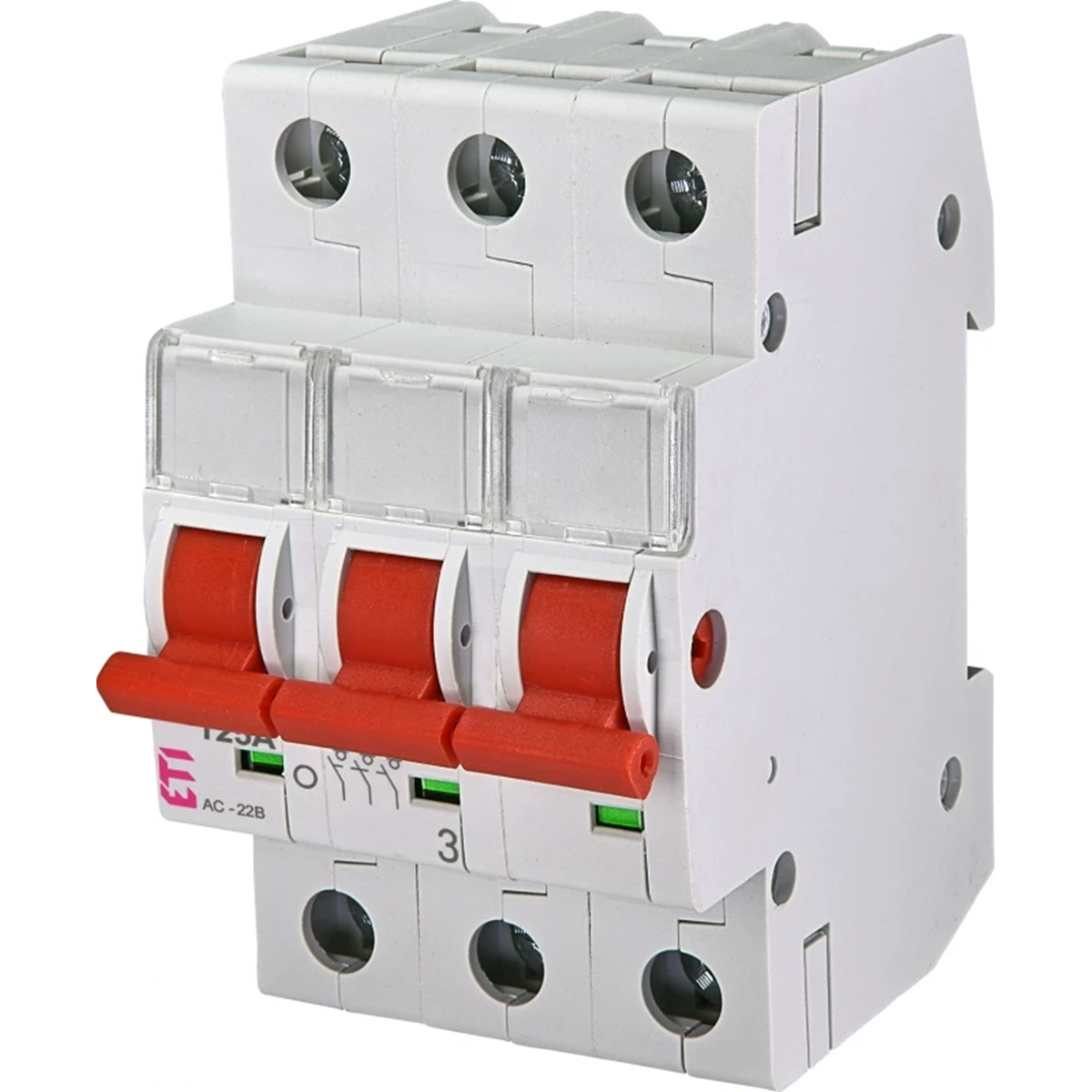

Application - SV switch disconnectors are used as main switches in residential and industrial switchboards, and as individual switches in power installations. They have no built-in overcurrent devices. SV switch-disconnectors can be sealed both in the ON and OFF positions.

Advantages:
→ SV switch disconnectors have a robust and simple design and therefore operate reliably,
→ are equipped with a double disconnection mechanism and a place for attaching a label with the number of the circuit in which they work.

Number of poles

3
PKWIU

27.12.23.0

Rated current [A]

125

Other technical data

Version as main switch

Yes
Version as safety switch

Yes
Max. rated operation voltage Ue AC

400 V
Conditioned rated short-circuit current Iq

4 kA
Motor drive optional

No
Device construction

Built-in device fixed built-in technique
Type of control element

Rocker lever
Type of electrical connection of main circuit

Frame clamp

Version as maintenance-/service switch

Yes
Version as emergency stop installation

Yes
Rated permanent current Iu

125 A
Number of poles

3
Motor drive integrated

No
Suitable for distribution board installation

Yes
Interlockable

No
Degree of protection (IP), front side

IP20

A kind of package	Pudełko	Pudełko
Quantity	4 pcs.	36 pcs.
Weight (kg)	1,000	-
Volume (m3)	0,002	-
Width (m)	0,092	-
Length (m)	0,220	-
Depth (m)	0,078	-
