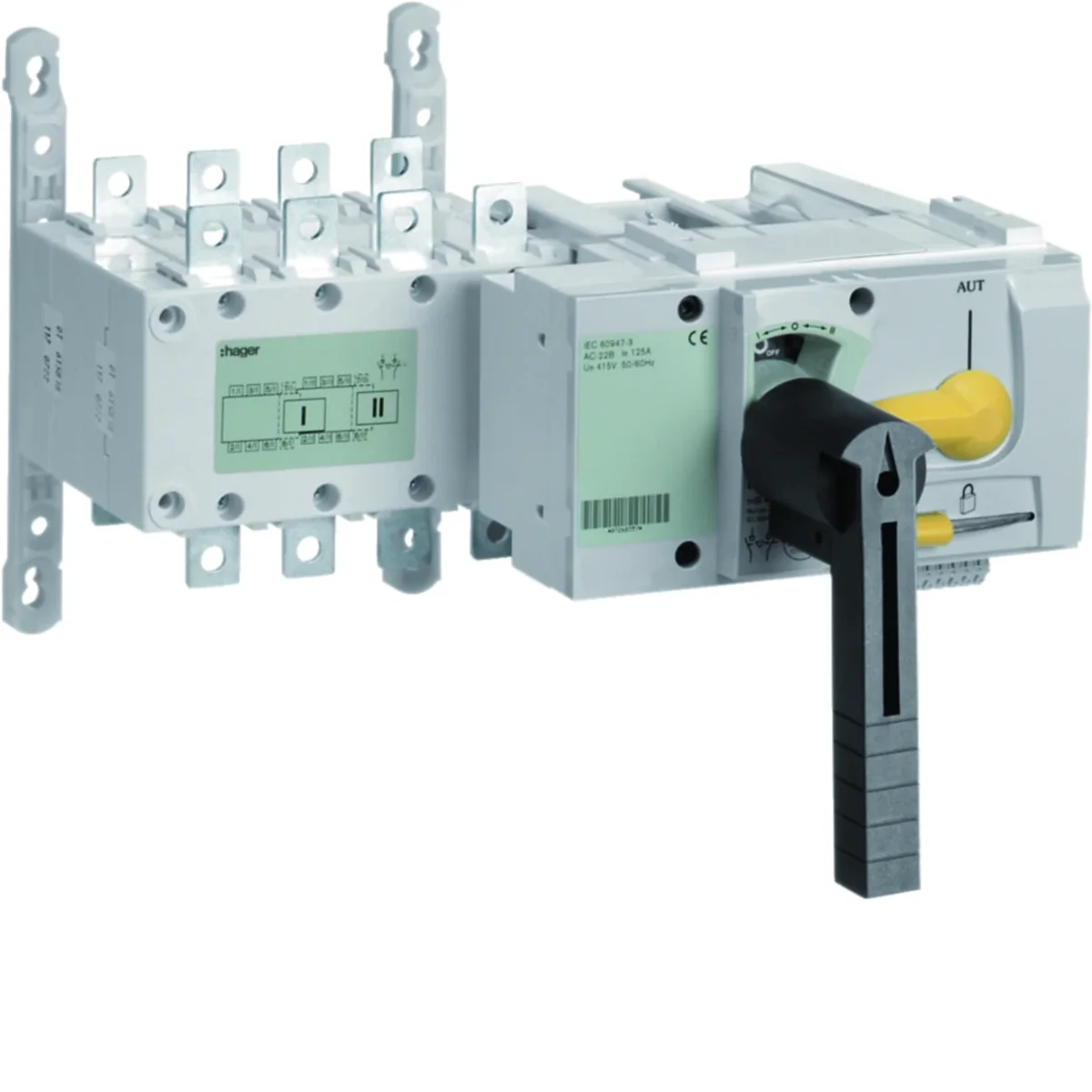

125A motorized power switch HIB412M

local index:
ALI223HAGE
Catalog No:
HIB412M
EAN code:
3250613191344
Manufacturer: HAGER
Rated frequency [Hz]: 60
Number of poles: 4
Rated current [A]: 125
Price:
1483,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The power supply isolation switch with 125A electromagnetic drive is perfectly adapted to meet the current requirements resulting from everyday electrical installation practice. Various connection options and a wide range of equipment allow for the implementation without much effort of unusual solutions on the implemented facilities.

Function:

  • Remote switching of circuit power supply under load while maintaining separation of supply lines.

Product features:

  • The use of remote switching of two interlocked switch disconnectors offers a number of possibilities:
    • 3 stable working positions switched under load (cat. AC 22 and AC 23),
    • safe separation of power supply networks with indication of the working position,
    • possibility of locking in position 0,
    • compact design,
    • design and spacing of poles allows the use of coupling bridges,
    • cooperation with universal HZI811 controller.

Technical data

  • Rated frequency [Hz]
    60
  • Rated current [A]
    125
  • power loss [W]
    5.7
  • Connection type
    Vice
  • PKWIU
    27.33.11.0
  • Number of poles
    4
  • Level of security
    IP00
  • Power loss per pole [W]
    1.9
  • Rated switching voltage [V]
    380/415

Other technical data

  • Version as main switch
    Yes
  • Version as safety switch
    Yes
  • Version as reversing switch
    Yes
  • Max. rated operation voltage Ue AC
    415 V
  • Rated permanent current Iu
    125 A
  • Rated permanent current at AC-21, 400 V
    125 A
  • Rated operation power at AC-23, 400 V
    56 kW
  • Conditioned rated short-circuit current Iq
    100 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    Yes
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    No
  • Suitable for distribution board installation
    Yes
  • Colour control element
    Other
  • Interlockable
    Yes
  • Degree of protection (IP), front side
    IP00
  • Version as maintenance-/service switch
    Yes
  • Version as emergency stop installation
    No
  • Number of switches
    1
  • Rated operating voltage
    380 ... 415 V
  • Rated permanent current at AC-23, 400 V
    125 A
  • Rated short-time withstand current lcw
    12 kA
  • Switching power at 400 V
    82 kW
  • Number of poles
    4
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    No
  • Voltage release optional
    No
  • Suitable for floor mounting
    Yes
  • Suitable for front mounting centre
    No
  • Suitable for intermediate mounting
    No
  • Type of control element
    Other
  • Type of electrical connection of main circuit
    Cable clamp
  • Degree of protection (NEMA)
    Other

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 8 pcs.
Weight (kg) 6,999 9,635 100,080
Width (m) 0,239 0,385 0,800
Length (m) 0,244 0,315 1,050
Depth (m) 0,317 0,590 1,200
