SPAMEL

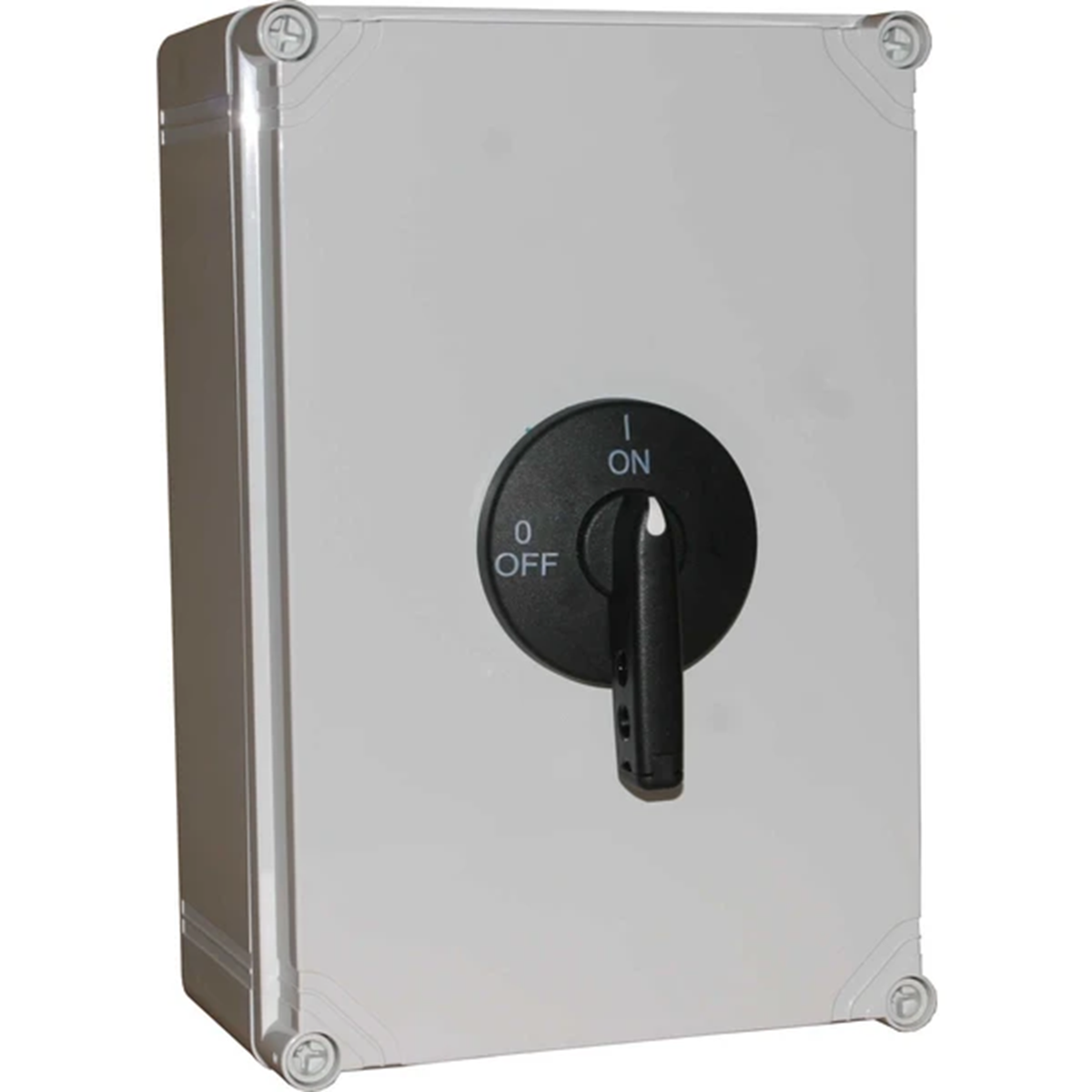

125A four-pole switch disconnector in a housing RSI-4125\OBA

local index:
ALI018SPAM
Catalog No:
RSI-4125\OBA
EAN code:
5907723012592
Price:
181,18 €
gross / pcs.
including VAT 23%
Availability:
up to a week (working days)
Delivery:
From 3,68 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

RSI compact switch disconnectors are designed for operation in circuits with a rated voltage of up to 690 V, in the AC-21A...AC-23A utilization categories and in DC circuits with a voltage of up to 220 V. The disconnectors can be installed in closed rooms (3 degree of pollution - industrial purpose), at the temperature from -40°C to +70°C.

Technical data

  • Rated insulation voltage [V]
    690
  • Continuous current [A]
    125

Other technical data

  • Version as main switch
    yes
  • Version as safety switch
    no
  • Version as reversing switch
    no
  • Max. rated operation voltage Ue AC
    690 V
  • Rated operation power at AC-23, 400 V
    30 kW
  • Number of poles
    4
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    no
  • Voltage release optional
    no
  • Suitable for floor mounting
    yes
  • Suitable for front mounting centre
    no
  • Suitable for intermediate mounting
    no
  • Interlockable
    no
  • Degree of protection (IP), front side
    IP20
  • Version as maintenance-/service switch
    no
  • Version as emergency stop installation
    yes
  • Number of switches
    1
  • Rated permanent current Iu
    125 A
  • Conditioned rated short-circuit current Iq
    7.5 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    no
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    no
  • Suitable for distribution board installation
    no
  • Type of control element
    Turn button
  • Type of electrical connection of main circuit
    Screw connection
