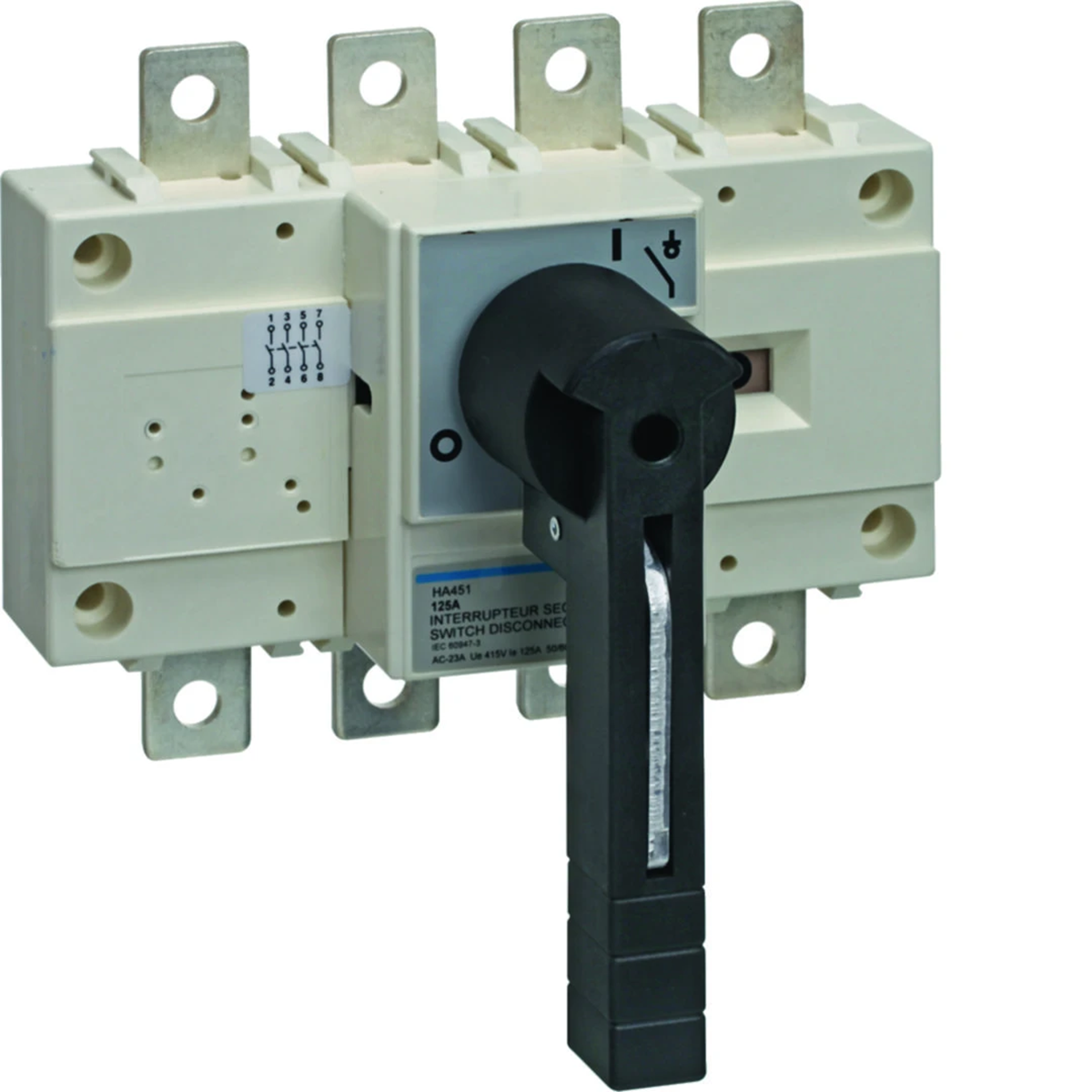

125A four-pole load switch HA451
Lokaler Index:
ALI221HAGE
Katalognummer:
HA451
EAN-Code:
3250613114510
Preis:
592,91 zł
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
Isolating Load Switch. It is perfectly adapted to meet current requirements resulting from everyday electrical installation practice.
Current:
- Current carrying capacity of AC21 in category A: 125 A ,
- Rated operational current (AC23), category A: 125 A,
- Current carrying capacity AC21 category B: 125 A,
- Allowable current load AC22 Category A: 125 A,
- Allowable current load AC22 Category B: 125 A,
- Rated operational current (AC23), Category B: 125 A,
- Conventional short-circuit current: 20 kA,
- Short-circuit current with gI-gG fuses: 50 kA,
- Rated short-time withstand current Icw: 7 kA,
- short-time withstand current 1s: 7 kA.
Power:
- Power supply below 440/500V 50Hz: 63 kW
- Rated power below 660 V, 50 Hz: 55 kW
- Active power below 380/415 V, 50 Hz: 63 kW
- Rated switching power at 400 V rated voltage for AC1: 82 kW
- Total power loss at rated current: 5.4 W
- Power loss per pole at rated current: 1.8 W
Technische Daten
-
Number of poles4
-
Rated current [A]125
-
power loss [W]5.4
-
Connection typeVice
-
Conventional short-circuit current [kA]20
-
Rated operational current [A]125
-
PKWIU27.12.22.0
-
Rated insulation voltage [V]800
-
Level of securityIP00
-
Power loss per pole [W]1.8
-
Rated switching voltage [V]380/415
-
Rated surge voltage [V]8000
-
Conductor cross-section (wire) [mm²]50
Weitere technische Daten
-
Version as main switchYes
-
Version as safety switchYes
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC415 V
-
Rated permanent current Iu125 A
-
Rated permanent current at AC-21, 400 V125 A
-
Rated operation power at AC-23, 400 V56 kW
-
Conditioned rated short-circuit current Iq50 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementBlack
-
InterlockableYes
-
With pre-assembled cablingNo
-
Degree of protection (NEMA)Other
-
Height135 mm
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage380 ... 415 V
-
Rated permanent current at AC-23, 400 V125 A
-
Rated short-time withstand current lcw7 kA
-
Switching power at 400 V82 kW
-
Number of poles4
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementLong turning handle
-
Type of electrical connection of main circuitCable clamp
-
Degree of protection (IP), front sideIP00
-
Width120 mm
-
Depth170 mm
Hersteller-Details
-
HerstellerHager Electro S.A.S.
-
AdresseFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-Mail
Großpackungen
| Eine Art Paket | Karton | Pakiet | Paleta |
| Menge | 1 stk. | 6 stk. | 144 stk. |
| Gewicht (kg) | 1,380 | 8,270 | 198,720 |
| Breite (m) | 0,140 | 0,320 | 0,800 |
| Länge (m) | 0,090 | 0,210 | 1,000 |
| Tiefe (m) | 0,180 | 0,370 | 1,200 |
