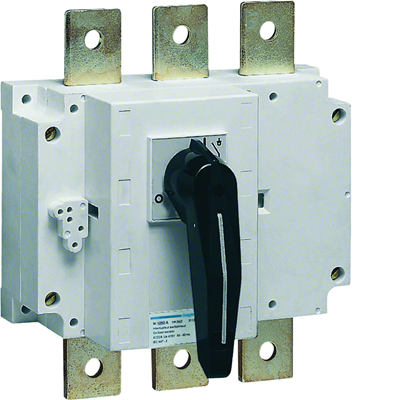

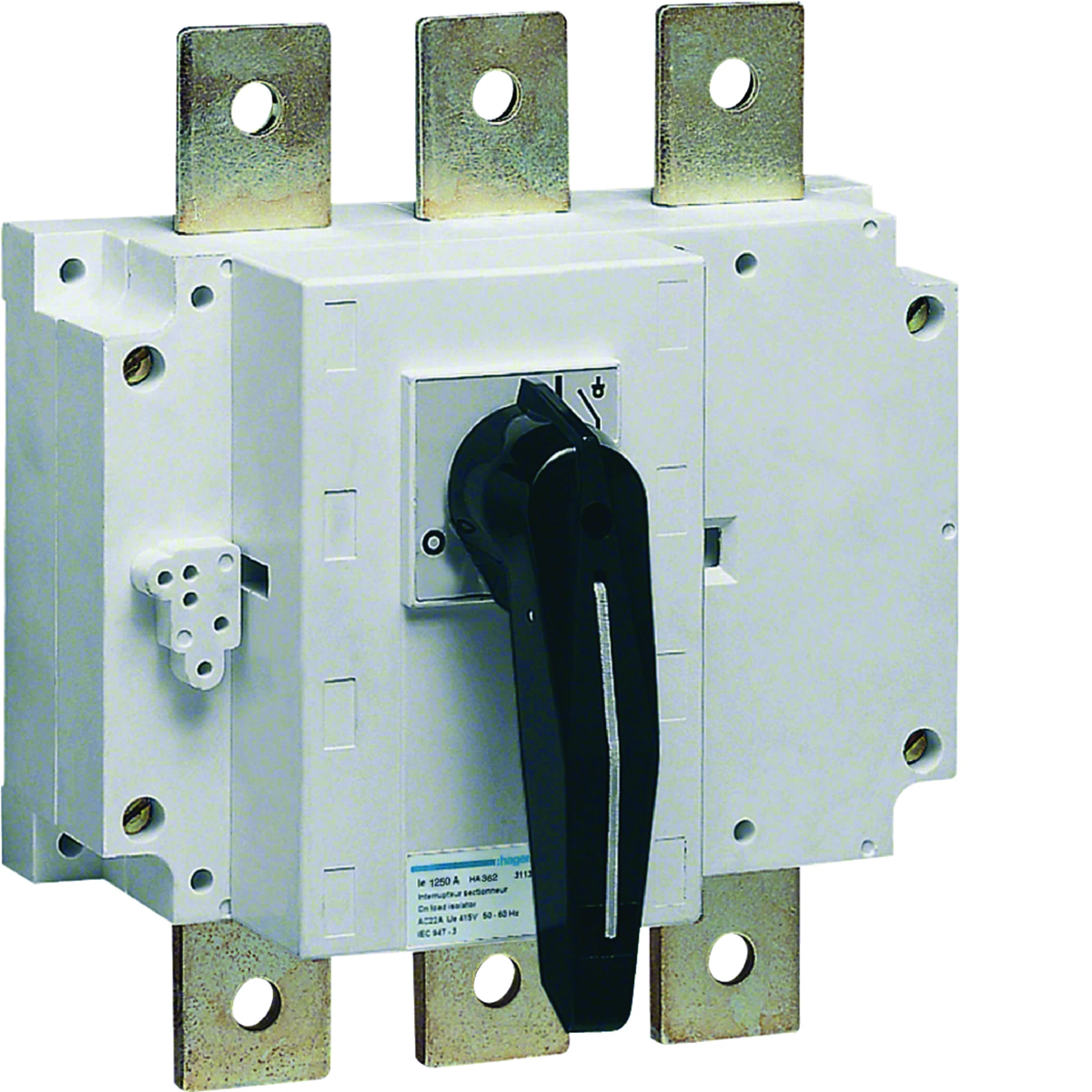

1250A three-pole load switch HA362
local index:
ALM052HAGE
Catalog No:
HA362
EAN code:
3250613119683
Price:
2524,91 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Isolating Load Switch. It is perfectly adapted to meet current requirements resulting from everyday electrical installation practice.
Current:
- Current carrying capacity of AC21 in category A: 1250 A ,
- Rated operational current (AC23), category A: 1000 A,
- Current carrying capacity AC21 category B: 1250 A,
- Allowable current load AC22 category A: 1250 A,
- Current rating AC22 category B: 1250 A,
- Rated operational current (AC23), category B: 1000 A,
- Short-circuit current with gI-gG fuses: 50 kA,
- Rated short-time withstand current Icw: 50 kA,
- Rated short-time withstand current 1s: 50 kA.
- Rated power below 660 V, 50 Hz.: 400 kW,
- Active power below 380/415 V, 50 Hz: 560 kW,
- Rated switching power for rated voltage 400V for AC1: 822 kW,
- Total power loss for rated current: 255 W, < li> Power loss per pole for rated current: 85 W.
Power:
Technical data
-
Number of poles3
-
Rated current [A]1250
-
power loss [W]255
-
Connection typeVice
-
Rated switching voltage [V]380/415
-
Rated operational current [A]1000
-
PKWIU27.12.22.0
-
Rated insulation voltage [V]1000
-
Level of securityIP00
-
Power loss per pole [W]85
-
Mechanical durability (number of cycles)4000
-
Rated surge voltage [V]8000
-
Conductor cross-section (wire) [mm²]4 x 185
Other technical data
-
Version as main switchYes
-
Version as safety switchYes
-
Version as reversing switchYes
-
Rated operating voltage380 ... 415 V
-
Rated permanent current at AC-21, 400 V1250 A
-
Rated operation power at AC-23, 400 V562 kW
-
Conditioned rated short-circuit current Iq50 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedYes
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeYes
-
Suitable for distribution board installationYes
-
Colour control elementBlack
-
InterlockableYes
-
Degree of protection (IP), front sideIP00
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationYes
-
Max. rated operation voltage Ue AC415 V
-
Rated permanent current Iu1250 A
-
Rated short-time withstand current lcw50 kA
-
Switching power at 400 V822 kW
-
Number of poles3
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalYes
-
Voltage release optionalYes
-
Suitable for floor mountingYes
-
Suitable for front mounting centreYes
-
Suitable for intermediate mountingYes
-
Type of control elementLong turning handle
-
Type of electrical connection of main circuitCable clamp
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 36 pcs. |
| Weight (kg) | 10,500 | 12,965 | 489,740 |
| Width (m) | 0,372 | 0,400 | 0,800 |
| Length (m) | 0,330 | 0,245 | 0,690 |
| Depth (m) | 0,140 | 0,405 | 1,200 |
