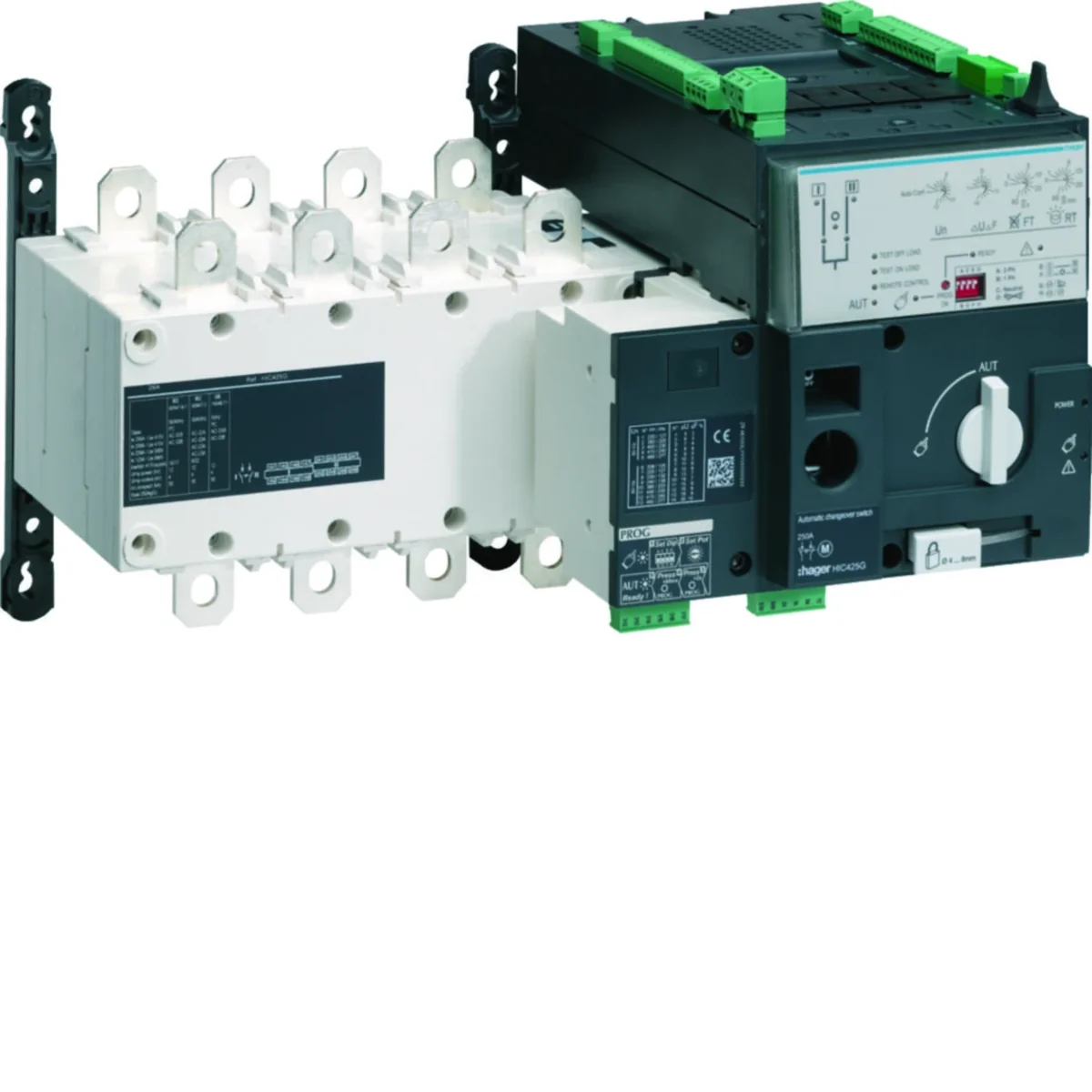

1250A automatic power switch HIC491G
local index:
ALM114HAGE
Catalog No:
HIC491G
EAN code:
3250613131890
Price:
9311,85 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Automatic power switch with 1250A electromagnetic drive is perfectly adapted to meet the current requirements resulting from everyday electrical installation practice. Various connection options and a wide range of equipment allow for the implementation without much effort, even unusual solutions on the implemented facilities.
Technical data
-
Rated frequency [Hz]60
-
Rated current [A]1250
-
Connection typeVice
-
PKWIU27.33.11.0
-
Number of poles4
-
Level of securityIP00
-
Rated switching voltage [V]380/415
Other technical data
-
Version as main switchYes
-
Version as safety switchYes
-
Version as reversing switchYes
-
Max. rated operation voltage Ue AC415 V
-
Rated permanent current Iu1250 A
-
Rated permanent current at AC-21, 400 V1250 A
-
Rated operation power at AC-23, 400 V562 kW
-
Conditioned rated short-circuit current Iq100 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedYes
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementOther
-
InterlockableYes
-
Degree of protection (IP), front sideIP00
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage380 ... 415 V
-
Rated permanent current at AC-23, 400 V1250 A
-
Rated short-time withstand current lcw64 kA
-
Switching power at 400 V822 kW
-
Number of poles4
-
Number of auxiliary contacts as normally open contact1
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementOther
-
Type of electrical connection of main circuitCable clamp
-
Degree of protection (NEMA)Other
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 2 pcs. |
| Weight (kg) | 47,999 | 48,000 | 119,000 |
| Width (m) | 0,370 | 0,600 | 0,800 |
| Length (m) | 0,412 | 0,730 | 1,050 |
| Depth (m) | 0,584 | 0,800 | 1,200 |
