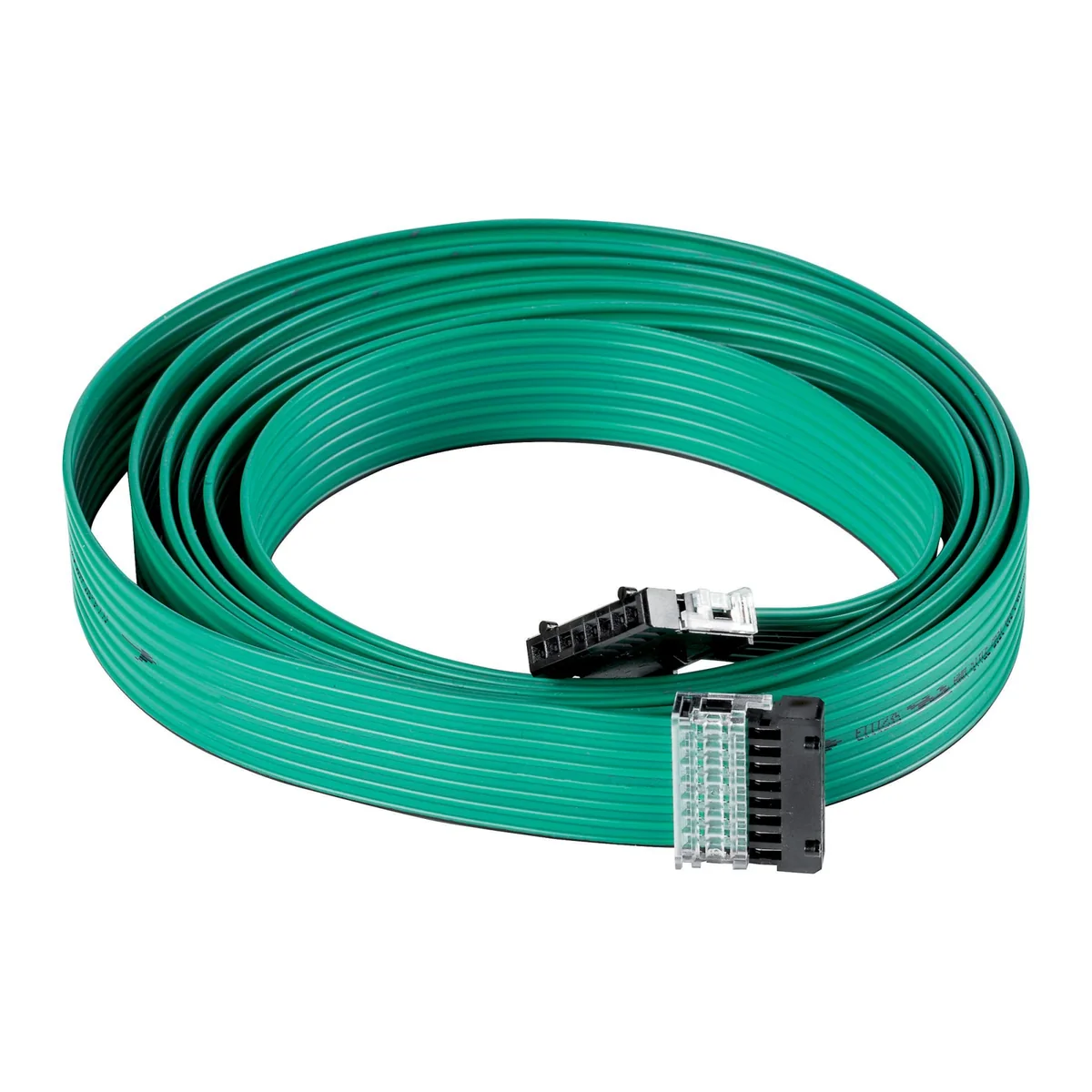

SWD4-10LF8-24-2S SmartWire-DT flat cable - 10m terminated with flat plugs 116029

Index local:
IEE013MOEL
Numéro de catalogue:
116029
Code EAN:
4015081157693
Producteur: EATON
Prix:
203,52 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à 4 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Données techniques

Autres données techniques

  • Conductor material
    Other
  • Diameter conductor
    1.35 mm
  • AWG size
    24
  • Number of cores
    8
  • Stranding element
    Pairs
  • Specification core insulation
    Other
  • Core identification
    Colour
  • Stranding
    Bundle
  • Longitudinal water blocking cable
    Yes
  • Suitable for underground installation
    No
  • Protective sheath
    Other
  • Specification material outer sheath
    Other
  • Armouring/reinforcement
    None
  • Cable geometry
    Flat
  • Reaction-to-fire according to EN 13501-6: Smoke production
    None
  • Reaction-to-fire according to EN 13501-6: Acidity
    None
  • Halogen free according to EN IEC 60754-2
    No
  • Low smoke (according to EN 61034-2)
    No
  • Oil resistant according to EN IEC 60811-404
    No
  • Trwałość izolacji zgodnie z IEC 60331
    No
  • Outer diameter approx.
    17.5 mm
  • Min. permitted bending radius, moving application/free movement
    15 mm
  • Permitted cable outer temperature during assembling/handling
    -10 ... 105 °C
  • Category
    Other
  • UV resistant
    Yes
  • Suitable as telephone cable
    No
  • Suitable as signalling cable
    Yes
  • Compatible with Grade3TV according to XP-C 90-483
    No
  • Conductor surface
    Tinned
  • Nominal cross section conductor
    0.23 mm²
  • Conductor category
    Class 2 = stranded
  • Number of stranding elements
    0
  • Material core insulation
    Polyvinyl chloride (PVC)
  • Core identification according to HD 308 S2
    No
  • Screen over stranding element
    Foil
  • Screen over stranding
    None
  • Radial water blocking cable
    No
  • Approved type of underground installation
    Other
  • Material outer sheath
    Polyvinyl chloride (PVC)
  • Colour outer sheath
    Green
  • Material armouring
    Other
  • Reaction-to-fire according to EN 13501-6: Class
    None
  • Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    None
  • Halogen free according to EN 60754-1/2
    No
  • Flame retardant
    According to IEC/EN 60332-1-2
  • Low smoke according to EN IEC 61034-2
    No
  • Olejoodporny zgodnie z IEC 60811-404
    No
  • Circuit integrity
    None
  • Min. permitted bending radius, moving application with forced guidance
    15 mm
  • Min. permitted bending radius, stationary application/permanent installation
    7.5 mm
  • Permitted cable outer temperature after assembling without vibration
    -30 ... 105 °C
  • NVP value
    66.7 %
  • Certified for shipboard application
    No
  • Suitable as computer data cable
    No
  • Compatible with Grade2TV according to XP-C 90-483
    No

Détails du fabricant

  • Producteur
    Eaton Electric Sp. z o.o.
  • Adresse
    80-299 Gdańsk Galaktyczna 30 Polska

Emballage en vrac

Une sorte de paquet Skrzynia Karton
Quantité 1 pcs. 1 pcs.
poids (kg) 0,345 0,350
Volume (m3) 0,000 0,000
Largeur (m) 0,132 0,132
Longueur (m) 0,132 0,132
Profondeur (m) 0,024 0,023
