CHPV2U Zylindereinsatzsockel 10x38, gPV, 2-polig, 32A, 1000 Vdc CHPV2U

local index:
ABO017MOEL
Catalog number:
CHPV2U
EAN code:
051712362733
Manufacturer: EATON
Price:
57,70 zł
brutto / pcs.
(including VAT 23%)
up to 2 weeks
On request
Quantity pcs.
(multiplicity:
6
)
Add to inquiry
Add to clipboard
Print

Technical data

Other technical data

  • Nennspannung
    1500 V
  • Für Sicherungsgröße
    10x38 mm
  • Mitschaltender Neutralleiter
    Nein
  • Optische Defektanzeige
    Nein
  • Einbautiefe
    51.5 mm
  • Montageart
    DIN-Schiene
  • Polzahl
    2
  • Abschließbar
    Ja
  • Breite in Teilungseinheiten
    2
  • Schutzart (IP)
    IP20

Manufacturer details

  • Manufacturer
    Eaton Electric Sp. z o.o.
  • Address
    80-299 Gdańsk Galaktyczna 30 Polska

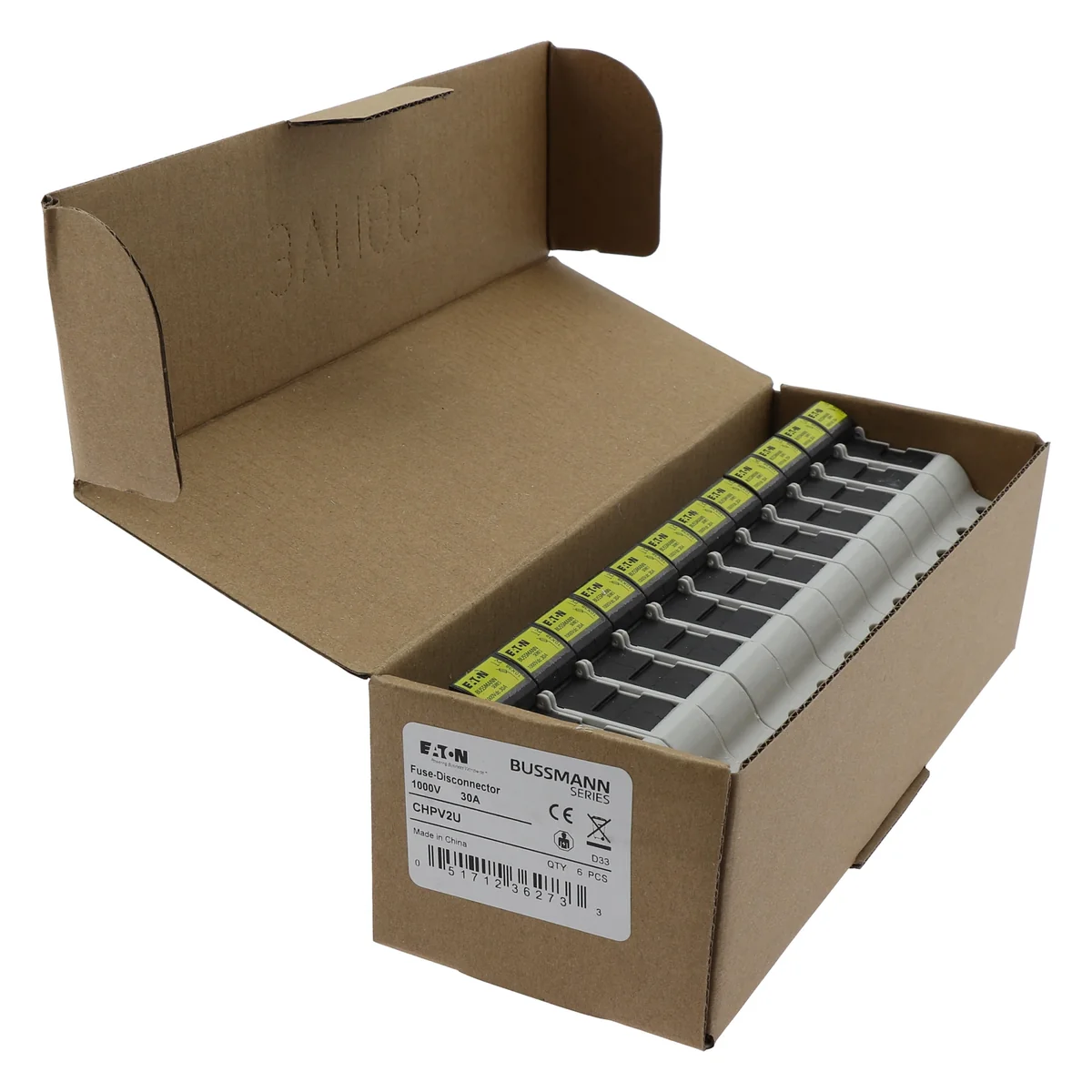

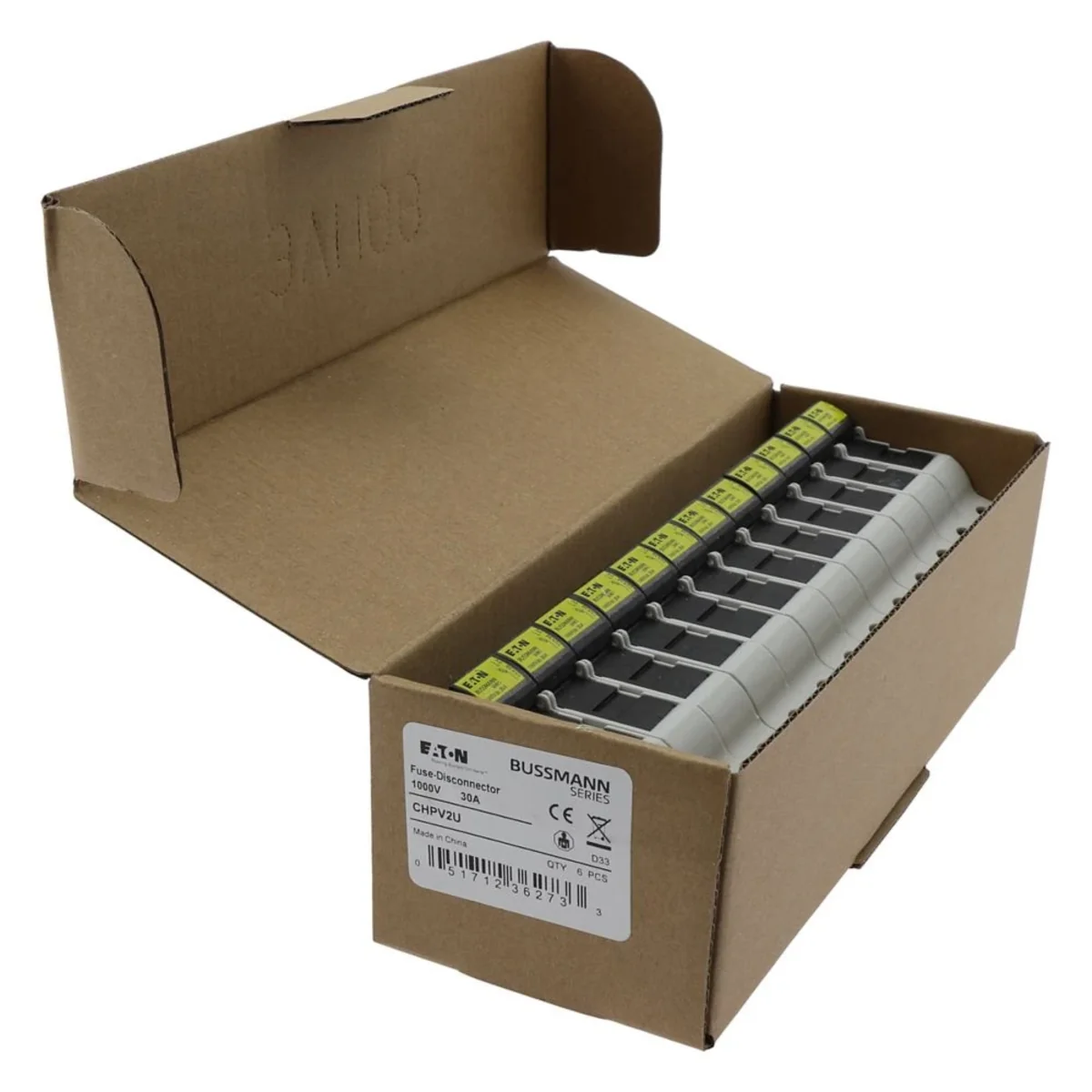

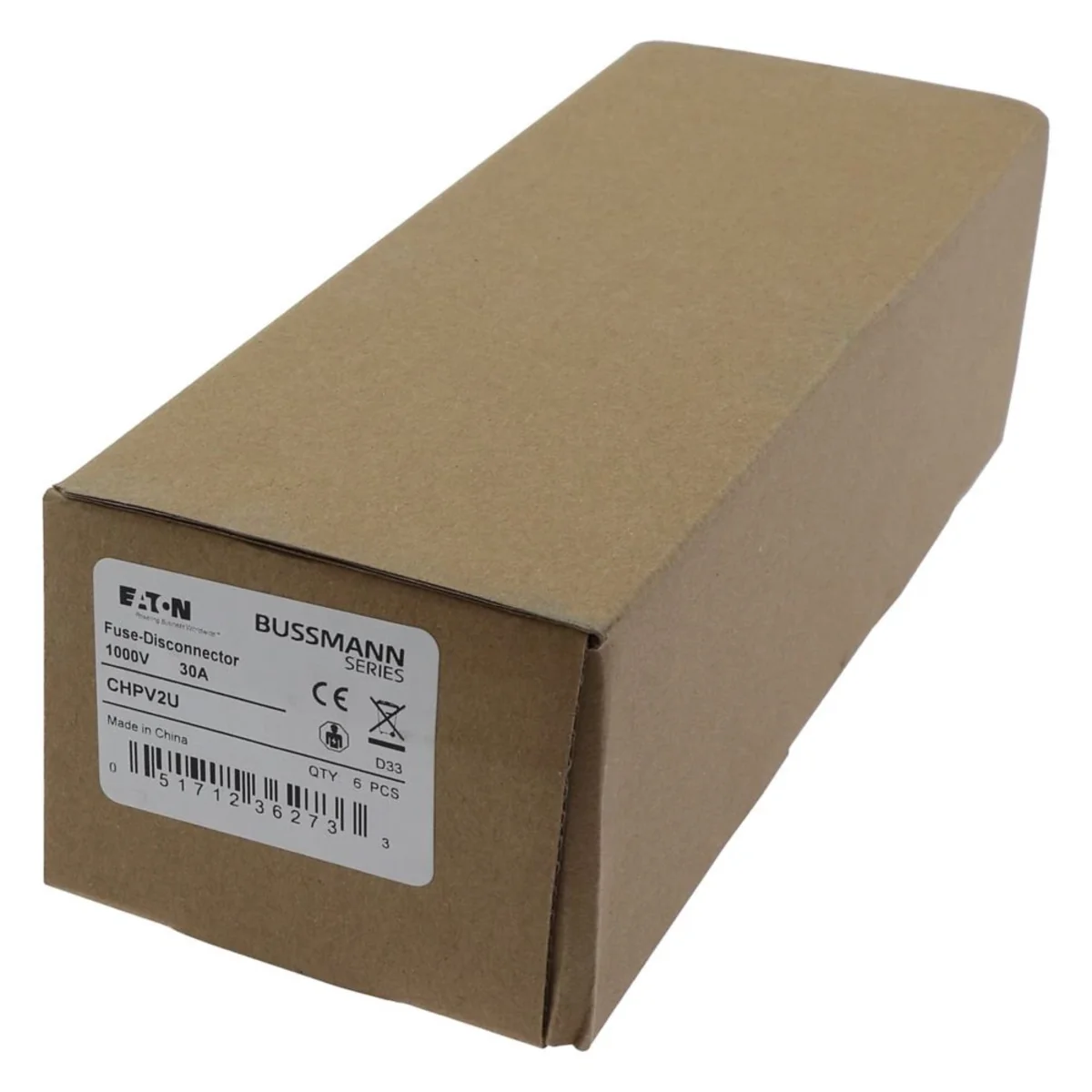

Bulk packaging

A kind of package Skrzynia Karton Karton Skrzynia Karton Karton
Quantity 1 pcs. 6 pcs. 120 pcs. 1 pcs. 6 pcs. 120 pcs.
Weight (kg) 0,105 0,680 - 0,105 0,680 -
Volume (m3) 0,000 0,001 - 0,000 0,001 -
Width (m) - 0,075 - - 0,075 -
Length (m) - 0,225 - - 0,225 -
Depth (m) - 0,065 - - 0,065 -
