Flush-mounted serial box with screws S60Gw fi80mm deep 80mm blue 34009203

Name: Flush-mounted serial box with screws S60Gw fi80mm deep 80mm blue
Brand: SIMET
SKU: MVP042SIME
Price: 126.05 PLN
Availability: BackOrder

Índice local:

MVP042SIME

Número de catálogo:

34009203

Código EAN:

5907813229336

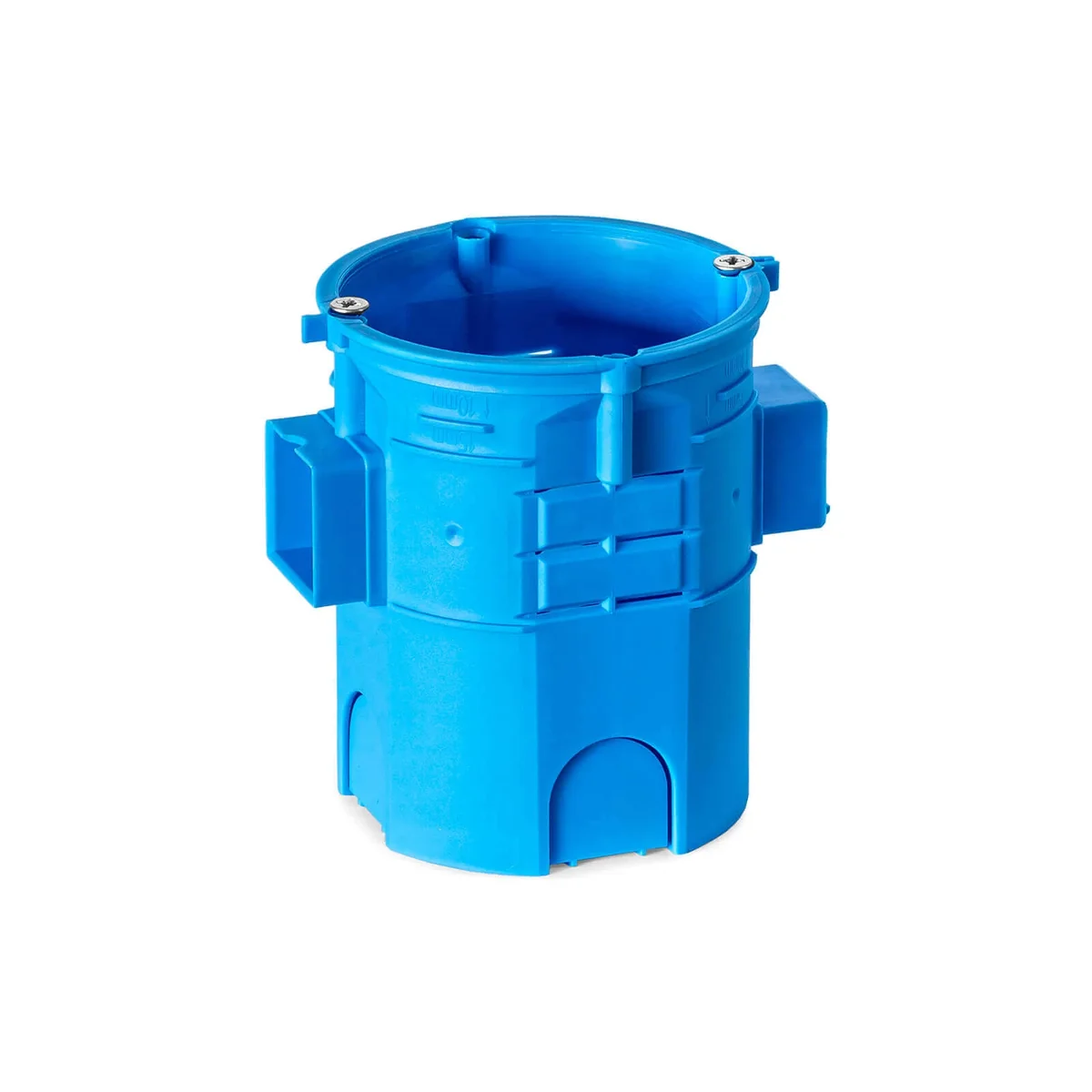

Flush-mounted serial box with screws S60Gw fi80mm deep 80mm blue

Haga clic en la foto para ampliar

Fabricante: SIMET

Halogen free: Yes

Depth [mm]: 80

Color: Blue

Ver descripción completa

Precio:

126,05 zł

gross / pack

(IVA incluido 23%)

3,60 zł gross/uds.

hasta 2 semanas

Por encargo

Cantidad pack

(múltiple:

1

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante

Descripción del producto

Box extra-deep, serial

Box with special rectangular knockouts and large break-out surfaces.
Includes 2 screws for mounting accessories.

Accessories matching the box:

Spacing rings PD60x12, PD60x24, PD60x30.
Cover cover W60 or PL60, KD12 spacer.
W16, W25, W40 screws.
PS60 signaling cover.

Datos técnicos

Halogen free

Yes
Color

Blue
Material

PP
Cover

NO
Width [mm]

62
Mounting hole diameter [mm]

71
Weight [g]

22
Number of bolts/screws

2
Number of segments

1
Fire resistance [°C]

850
Attachment diameter [mm]

60

Depth [mm]

80
Shape

Round
Installation

Flush-mounted
Type

To the wall
Pieces in the package

35
Type

For attachments
Self-extinguishing

Yes
Fire resistance

Non-flammable
Flammability class

V2
For modular equipment

Not applicable
PKWIU

27.33.13.0

Otros datos técnicos

Mounting method

Flush-mounted
Construction type

Built-in installation box (device box)
Equipped with

Other
Length

62 mm
Depth

81 mm
Mounting switching equipment

Screwing
Type of housing feed-through

Preembossing
Suitable for cable diameter

... 20 mm
Inlet from the rear

No
Halogen free

Yes
Colour

Blue
Cover attachment

Screwed
Circuit integrity

None
Air tight

No
Luminaire hook mounting

No
Z zaczepami pazurkowatymi

No

Shape

Round
Model

Single
Diameter

60 mm
Width

62 mm
For number of electric fittings

1
With screws

Yes
For tube diameter

20 mm
Pipe locking

No
Material

Plastic
Surface protection

Other
Pokrywa

None
Sealable

No
With screening

No
Clamp position fixed

No
Nozzle

Square branch pipe
