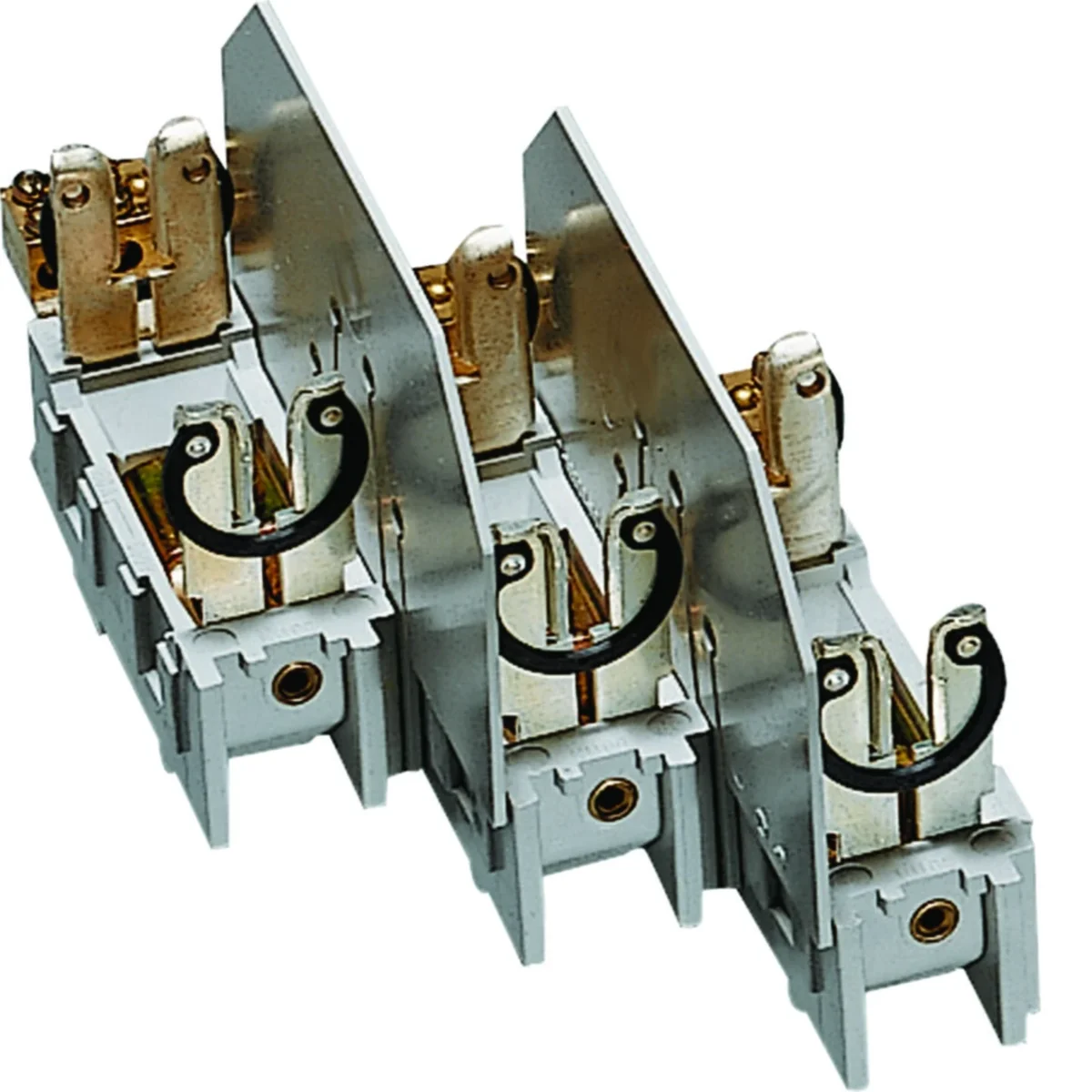

Base portafusibile NH00 3P 160A SaS L00R
local index:
ABO139HAGE
Catalog number:
L00R
EAN code:
4010330740084
Price:
200,61 zł
lordo / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Base fusibile:
- SaS
- corrente nominale del fusibile: 6/10/16/20/25/32/35 /40/50/63/80/100/125/160A
Technical data
-
Frequenza nominale [Hz]60
-
FissaggioSistema ferroviario
-
Perdite di potenza [W]6,51
-
Intervallo di temperatura operativa [°C]da -25 a 55
-
Temperatura di stoccaggio [°C]da -25 a 70
-
Numero di poli3
-
Tensione nominale di isolamento [V]8
-
Dimensioni dell'inserto del fusibileNH00
-
Tensione di commutazione nominale [V]690
-
PKWIU27.12.23.0
Other technical data
-
RozmiarNH00
-
Typ połączeniaZacisk śrubowy
-
Prąd znamionowy160 A
-
Mechanizm obrotowyNo
-
Sposób montażuSzyna DIN
-
Liczba biegunów3
-
Wersja do montażu na szynieSÌ
-
Z dodatkowym stykiemNo
Manufacturer details
-
ManufacturerHager Electro GmbH & Co KG
-
AddressDE 66440 Blieskastel Zum Gunterstal Niemcy
-
E-mail
Bulk packaging
| A kind of package | Karton | Paleta | Karton | Paleta |
| Quantity | 1 pcs. | 300 pcs. | 1 pcs. | 300 pcs. |
| Weight (kg) | 0,520 | 181,000 | 0,520 | 181,000 |
| Width (m) | 0,120 | 0,800 | 0,120 | 0,800 |
| Length (m) | 0,090 | 1,210 | 0,090 | 1,210 |
| Depth (m) | 0,240 | 1,200 | 0,240 | 1,200 |
