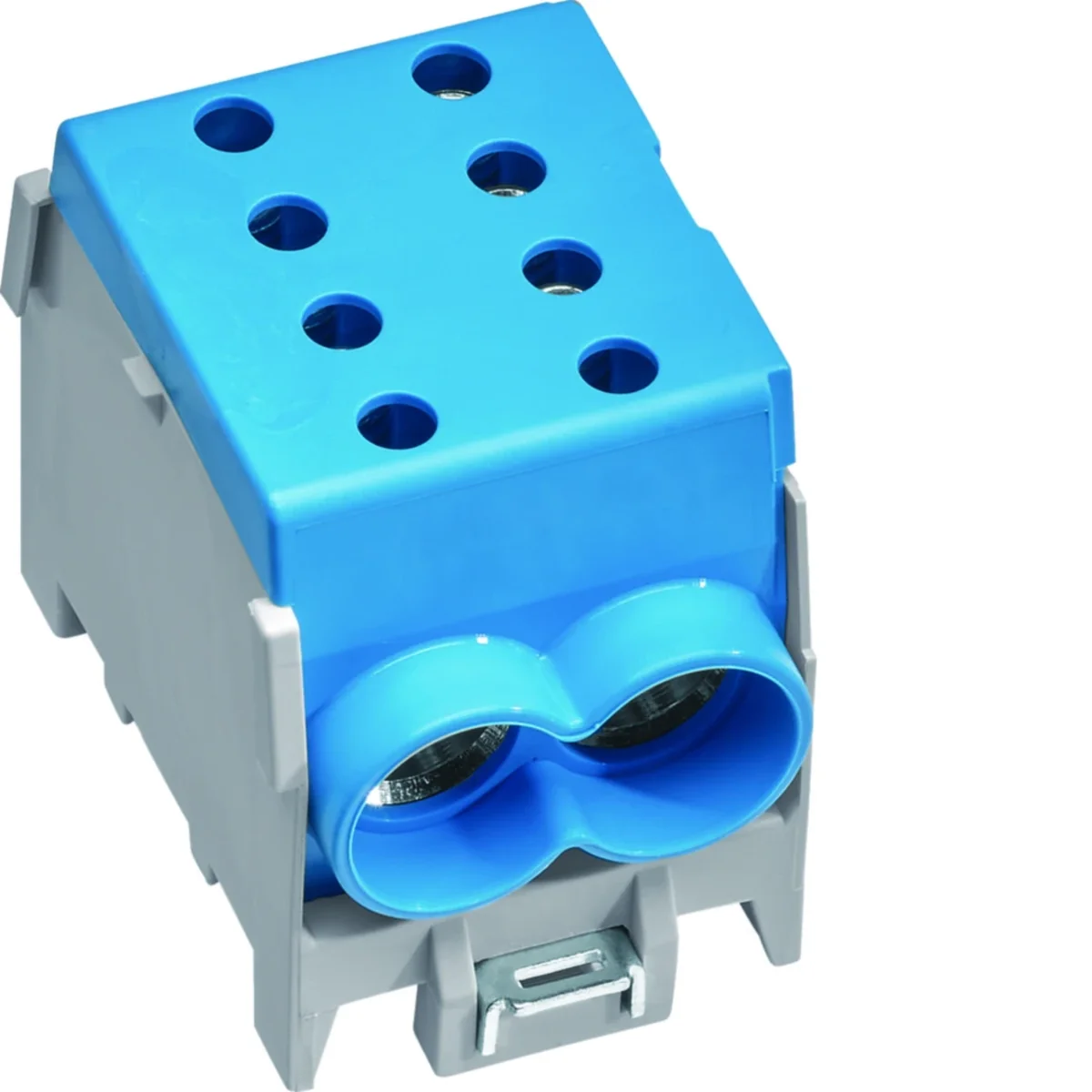

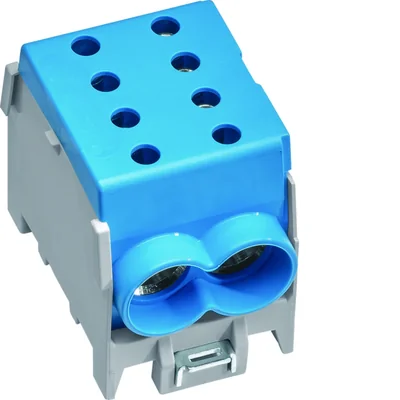

Morsetto derivato 1 polo 1x25/2x16mm² blu KH70B
local index:
ALA308HAGE
Catalog No:
KH70B
EAN code:
3250613780265
Price:
88,42 zł
lordo / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Morsetto di derivazione:
- 1 polo
- 1x25/2x16mm²
Technical data
-
Profondità [mm]48,7
-
Numero di poli1
-
Tensione nominale [V]690
-
Larghezza [mm]32,8
-
Sezione conduttore (filo) [mm²]70
-
ColoreBlu
-
Coppia di serraggio [Nm]10
-
Corrente nominale [A]160
-
Altezza [mm]60
-
PKWIU27.33.13.0
Other technical data
-
Liczba biegunów1
-
Typ połączeniaŚrubowy
-
Osłona izolacyjna przed dotykiemSÌ
-
Szerokość32.8 mm
-
Prąd znamionowy160 A
-
Sposób montażuSzyna DIN
-
Wysokość60 mm
-
Głębokość48.7 mm
Manufacturer details
-
ManufacturerHager Electro GmbH & Co KG
-
AddressDE 66440 Blieskastel Zum Gunterstal Niemcy
-
E-mail
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | Karton | Pakiet | Paleta |
| Quantity | 3 pcs. | 30 pcs. | 3840 pcs. | 3 pcs. | 30 pcs. | 3840 pcs. |
| Weight (kg) | 0,360 | 3,700 | 498,600 | 0,360 | 3,700 | 498,600 |
| Width (m) | 0,060 | 0,170 | 0,800 | 0,060 | 0,170 | 0,800 |
| Length (m) | 0,040 | 0,130 | 1,190 | 0,040 | 0,130 | 1,190 |
| Depth (m) | 0,140 | 0,280 | 1,200 | 0,140 | 0,280 | 1,200 |
