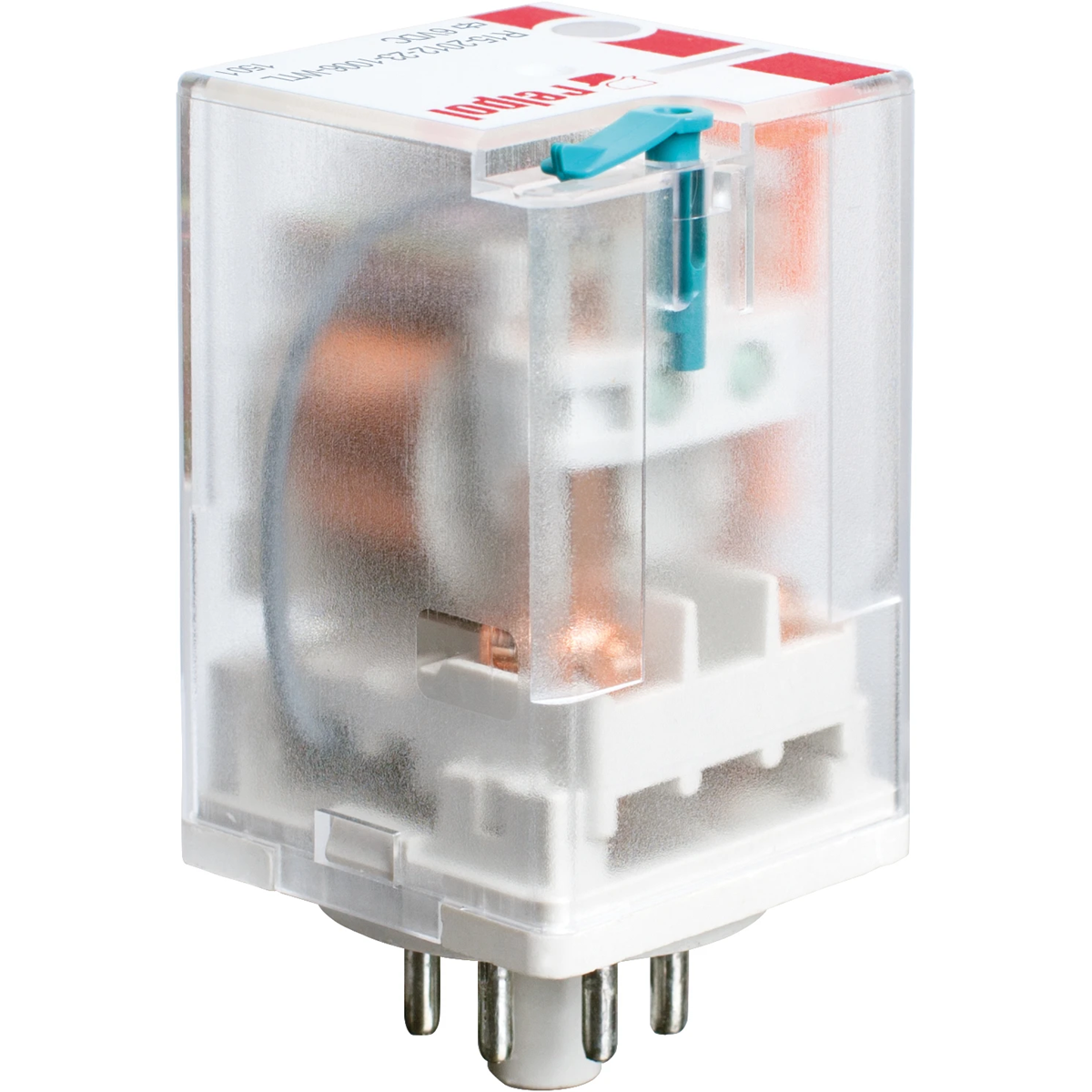

Relais électromagnétique de petite taille R15-2013-23-1060-WT 802854

local index:
APE271RELP
Catalog No:
802854
Manufacturer: RELPOL
Profondeur [mm]: 35
Configuration des broches: 3P
Matériel de contact: Ag Ni
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
9,07 €
brut / pcs.
(including VAT 23%)
The lowest price from 30 days before the reduction: 18,22 € brut -9,15 €
Base price: 19,13 € brut
Delivery in 3h
Accessible 1 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Relais électromagnétique, industriel - petite taille, pour prise de courant. Sortie : 3P - trois contacts inverseurs - bornes : 11(1)-12(4)-14(3) ; 21(6)-22(5)-24(7); 31(11)-32(8)-34(9). Entrée / Bobine - Sorties : A1(2) - A2(10),  Indicateur mécanique W, bouton de test T - avec fonction de verrouillage des contacts. Dimensions de l'ensemble R15 3P + prise PZ11 + pince PZ11 0031 : 68,2 x 38 x 82,6 mm. Kit - IP 20. Les dimensions des autres kits sont indiquées dans la description de la prise sélectionnée.

Tension nominale de contact : 250 V

Courant nominal AC1 : 10 A / 250 V AC

Courant nominal AC2 : 0,37 kW

Technical data

  • Profondeur [mm]
    35
  • Matériel de contact
    Ag Ni
  • Type de tension
    CC
  • Largeur [mm]
    35
  • Configuration des broches
    3P
  • Tension de bobine [V]
    60
  • Comment se connecter
    Pour prises de courant
  • Hauteur [mm]
    54,4

Other technical data

  • Rodzaj połączenia elektrycznego
    Połączenie wtykowe
  • Znamionowe napięcie sterowania Us dla AC 60 Hz
    0 ... 0 V
  • Rodzaj napięcia sterowania
    DC
  • Tryb przełączania napędu
    Monostabilny
  • Liczba styków zwiernych
    0
  • Rodzaj styku
    Pojedynczy
  • Stopień ochrony (IP)
    IP40
  • Wysokość
    35 mm
  • Znamionowe napięcie sterowania Us dla AC 50 Hz
    0 ... 0 V
  • Znamionowe napięcie sterowania Us dla DC
    60 ... 60 V
  • Polaryzacja napędu
    Niespolaryzowany
  • Liczba styków rozwiernych
    0
  • Liczba styków przełącznych
    3
  • Kompletny z gniazdem
    Non
  • Szerokość
    35 mm
  • Głębokość
    54.4 mm
