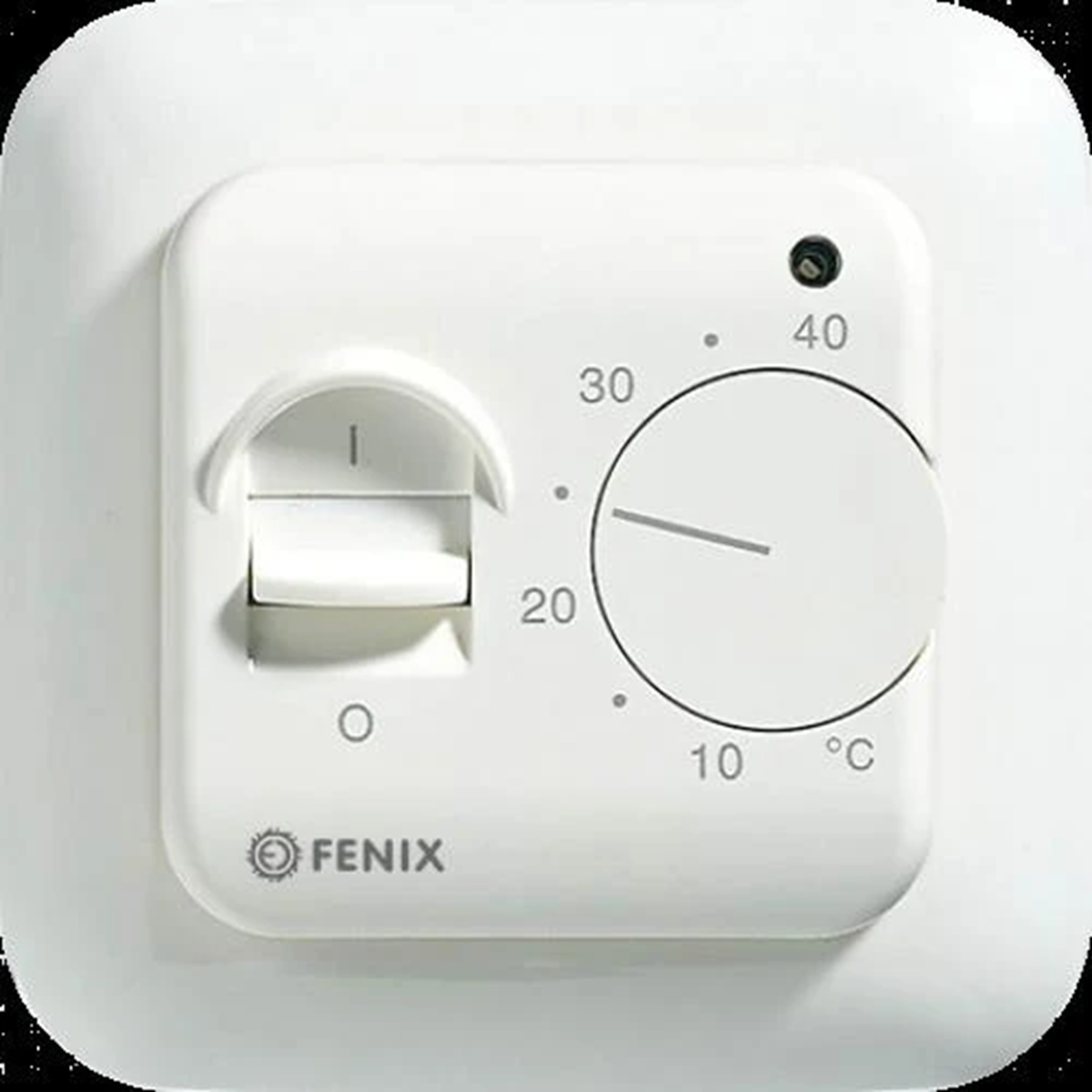

Thermostat OTN-1991-LU with sensor OTN-1991-H11

Indeks lokalny:
GGC052FENI
Nr katalogowy:
OTN-1991-H11
Kod EAN:
5703502612676
Protection class: IP21 / Class II (reinforced insulation)
Power [VA]: 6
Rated voltage [V]: 230
Cena:
47,81 €
gross / szt.
(w tym VAT 23%)
Dostawa do 3h
Dostępne 12 szt.
Odbiór za 1h
Twoja hurtownia Choose your wholesaler
Ilość szt.
(wielokrotność:
1
)
Dodaj do schowka
Drukuj

Opis produktu

Description/Characteristics:
The LTN thermostat is a two-state electronic regulator used to control electric heating systems. The built-in mains switch and a relay with a 1-pole contact with a load capacity of 14A/?230VAC enable direct control of 1-phase, resistance heating circuits with a power of up to 3200W. The thermostat is adapted for mounting in a standard, deep flush-mounted box. It is possible to mount the thermostat on the wall using an additional adapter. The thermostat is offered with a 3-meter cable NTC sensor type ETF-144/99 used as a floor sensor. It is also possible to work with a surface-mounted air sensor type ETF 944/99 instead of a cable sensor.

Advantages:
Power switch
Contact with a switching capacity of 14A / 230V
LED signaling of activation
Mounting in a standard flush-mounted box or surface-mounted with an adapter.
Additional functions: temperature reduction, mechanical setting scale limiter

Dane techniczne

  • Protection class
    IP21 / Class II (reinforced insulation)
  • Rated voltage [V]
    230
  • Power switch
    1-pole
  • Adjustment range
    From 5°C to +40°C
  • Temperature sensor
    ETF-144/99 (-20/+70°C)
  • Power [VA]
    6
  • Working temperature [°C]
    From 0 to +50
  • Dimensions (length x width x height) [mm]
    80x80x58mm
  • Output contact
    SPST-NO; 14A / 230V AC (resistive load)
  • PKWIU
    26.51.70.0
