SERIES 7T Modular thermostat 10A 230V 7T8100002303PAS

local index:
GGC012FIND
Catalog No:
7T8100002303PAS
EAN code:
8012823363271
Manufacturer: FINDER
Contact material: AgNi
Rated voltage [V]: 230
Switching current [A]: 20
Large-size product
Price:
13,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 17 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

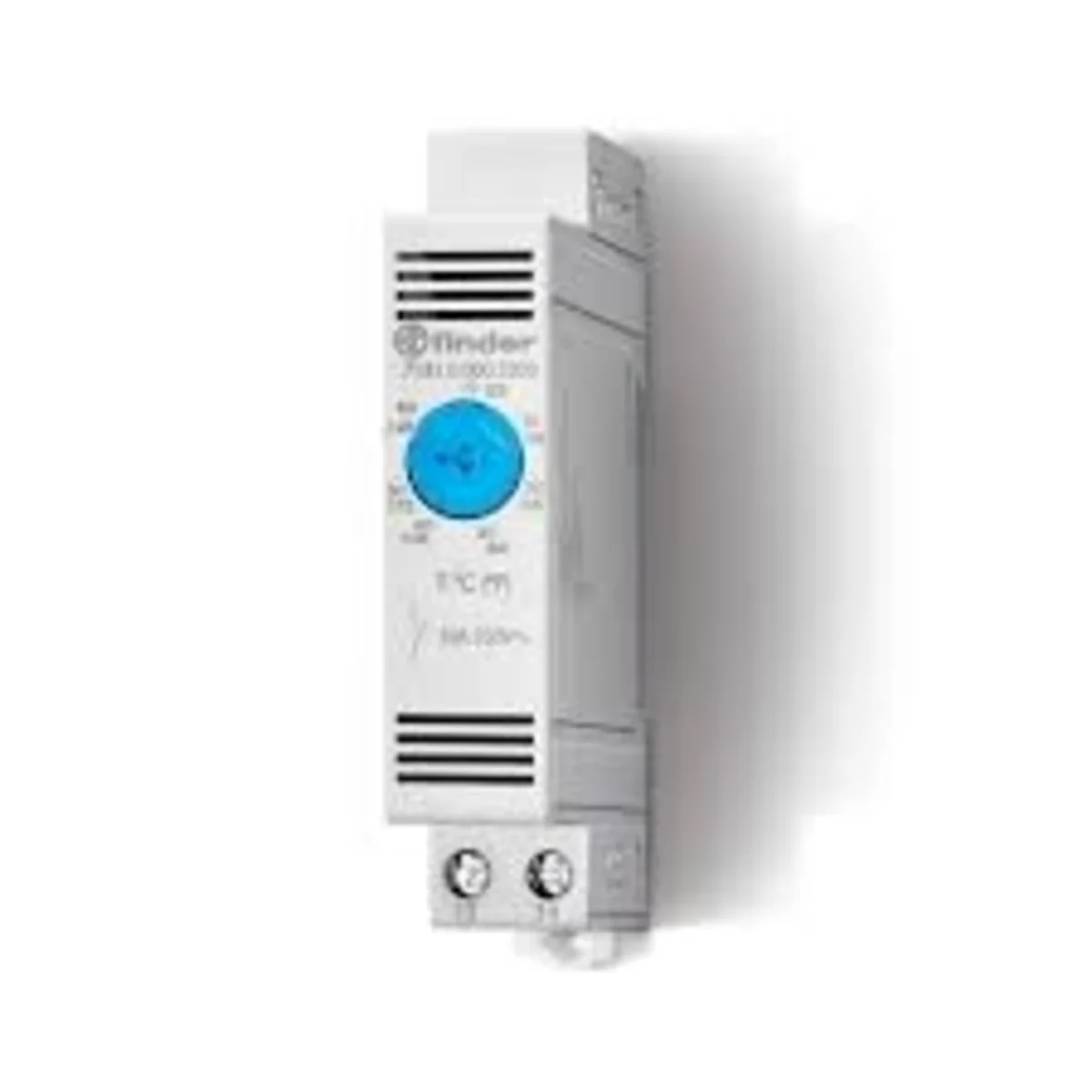

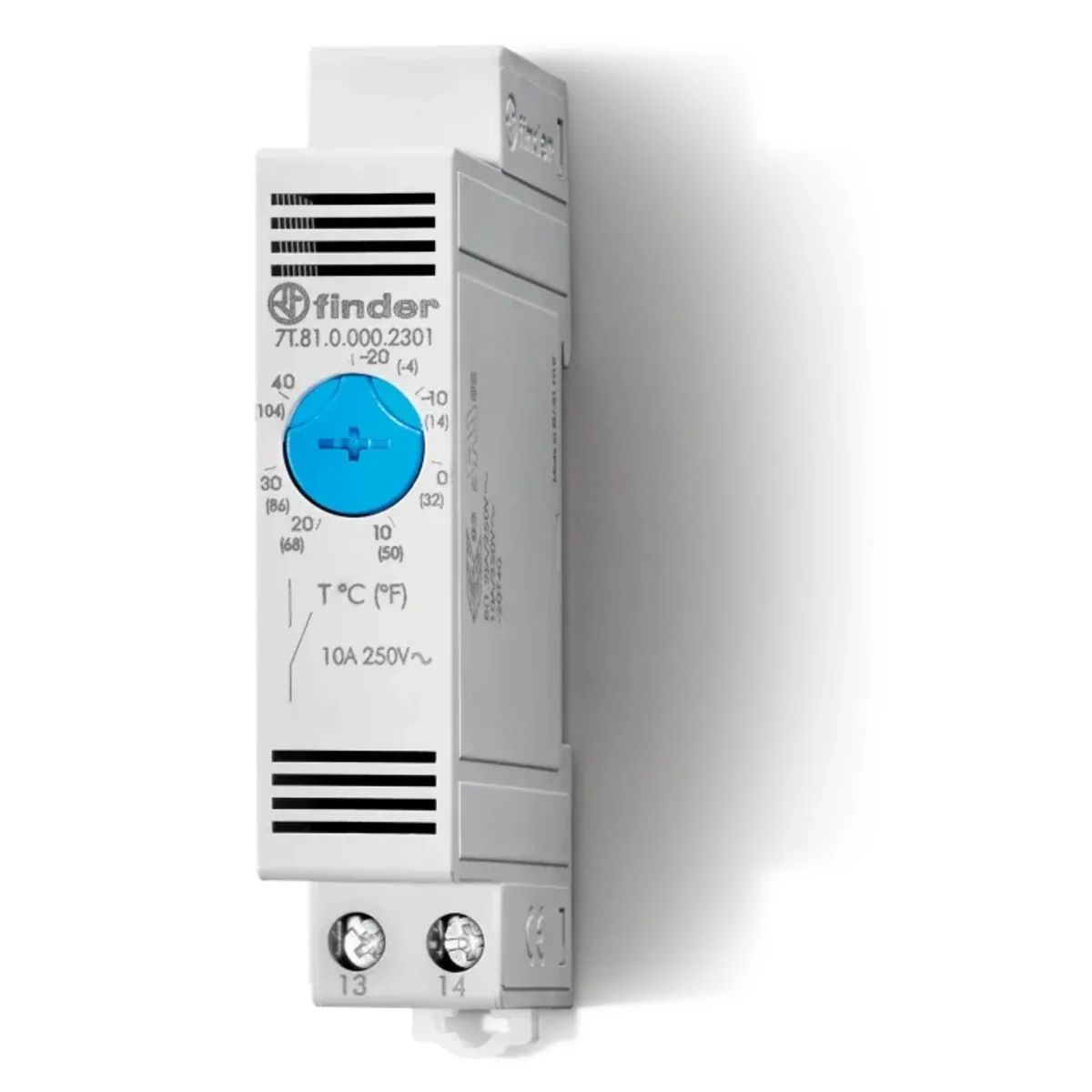

Modular thermostat from the 7T series, from the manufacturer FINDER. The product part number is 7T.81.0.000.2303PAS.

  • Small, compact size (Width 17.5 mm).
  • Lightning Bi-Metal temperature sensor.
  • Wide range of temperature settings.
  • Long electrical life.
  • For mounting on 35mm DIN rail (EN 60715).
  • Ventilation control.
  • Setting range (temperature): –20…+40 –20…+60 0…+60 °C.
  • Hysteresis of inclusions: 7 ± 4 K.

Technical data

  • Contact material
    AgNi
  • Switching current [A]
    20
  • Family
    7T
  • Width [mm]
    17.5
  • Rated switching power for AC1 [VA]
    2500
  • Rated voltage [V]
    230
  • Rated current [A]
    10
  • Level of security
    IP20
  • Number of contacts
    1
  • Electrical durability AC1 [number of cycles]
    100000
