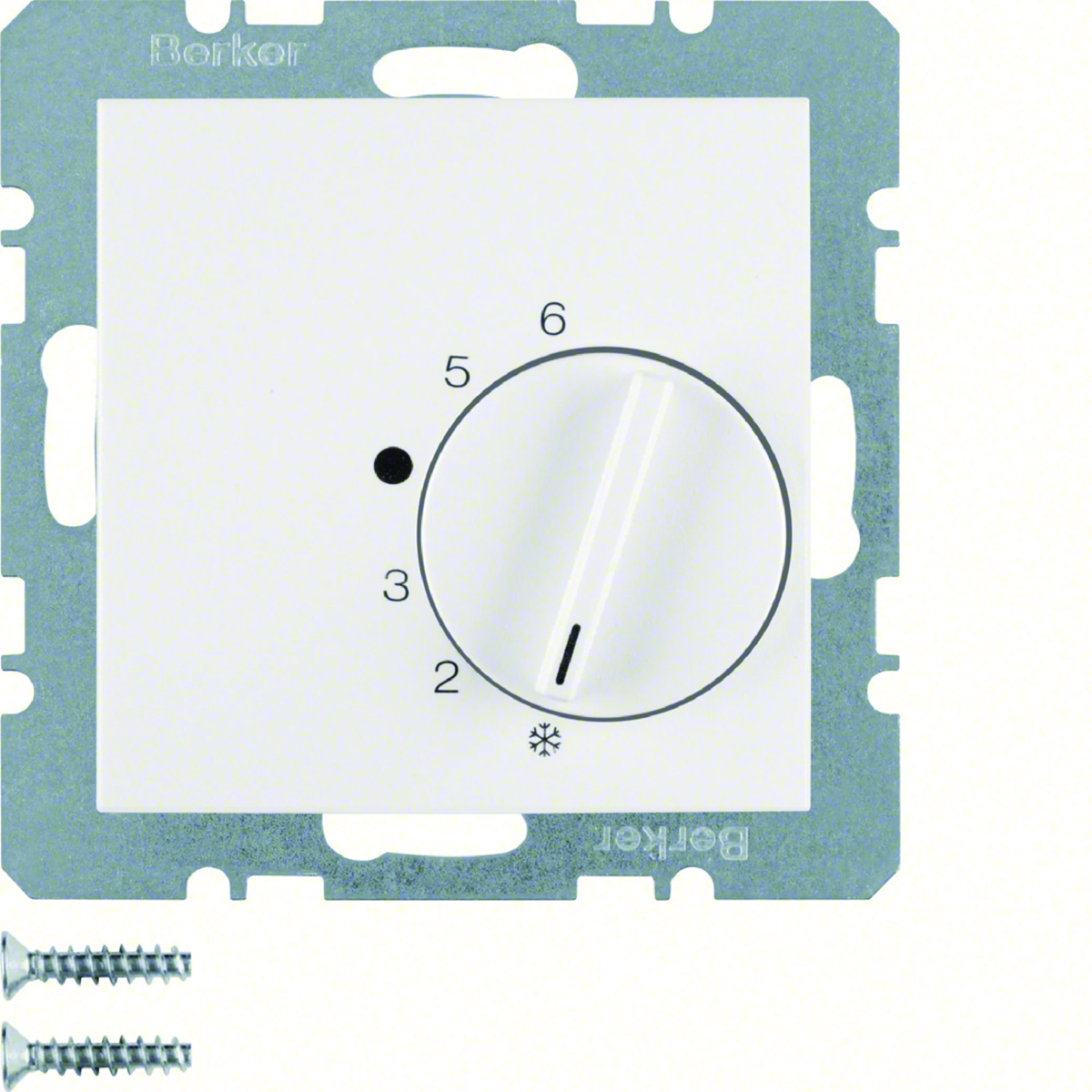

Room temperature controller with changeover contact and central element, white 20261909

local index:
GGC001BERK
Catalog No:
20261909
EAN code:
4011334309635
Manufacturer: BERKER
Depth [mm]: 46.5
Color: White
Material: Plastic
Price:
123,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Description:

  • 5 - 30°C, 50/60 Hz;
  • Rated voltage 250 V~;
  • Rated current 10 A ;
  • inductive load capacity at cos 0.6 = 4 A;
  • contact current "cooling" 5 A;
  • inductive load capacity "cooling" at cos 0.6 = 2A;
  • switching temperature difference approx. 0.5°C;



If set the temperature is reached, the contact switches.

  • printed
  • adjustment knob with limitation of the temperature range
  • for heating or air conditioning
  • < li>with thermal feedback
  • e.g. for valve drives closed when de-energised
  • only for screw fixing via carrier plate
  • with plug-in terminals



Note: Neutral is required.

Technical data

  • Depth [mm]
    46.5
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Family
    B.3 B.16
  • Width [mm]
    71
  • Type of material
    Plastic
  • PKWIU
    26.51.70.0
  • Color
    White
  • Installation
    Flush-mounted
  • Rated current [A]
    5
  • Level of security
    IP20
  • Height [mm]
    71
  • Accurate color
    White

Other technical data

  • Model
    On/Off
  • Differential value
    0.5 ... 0.5 K
  • Sensor/feeler type
    Bimetal
  • Degree of protection (IP)
    IP20
  • Height
    71 mm
  • Depth
    46.5 mm
  • Thermal feedback
    Series
  • Temperature readable
    No
  • Mounting method
    Flush-mounted
  • RAL-number
    9010
  • Width
    71 mm
  • Class of the temperature control
    I

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,060 0,105 4,220 158,040
Width (m) 0,071 0,090 0,300 0,800
Length (m) 0,047 0,075 0,225 1,050
Depth (m) 0,071 0,085 0,400 1,200
