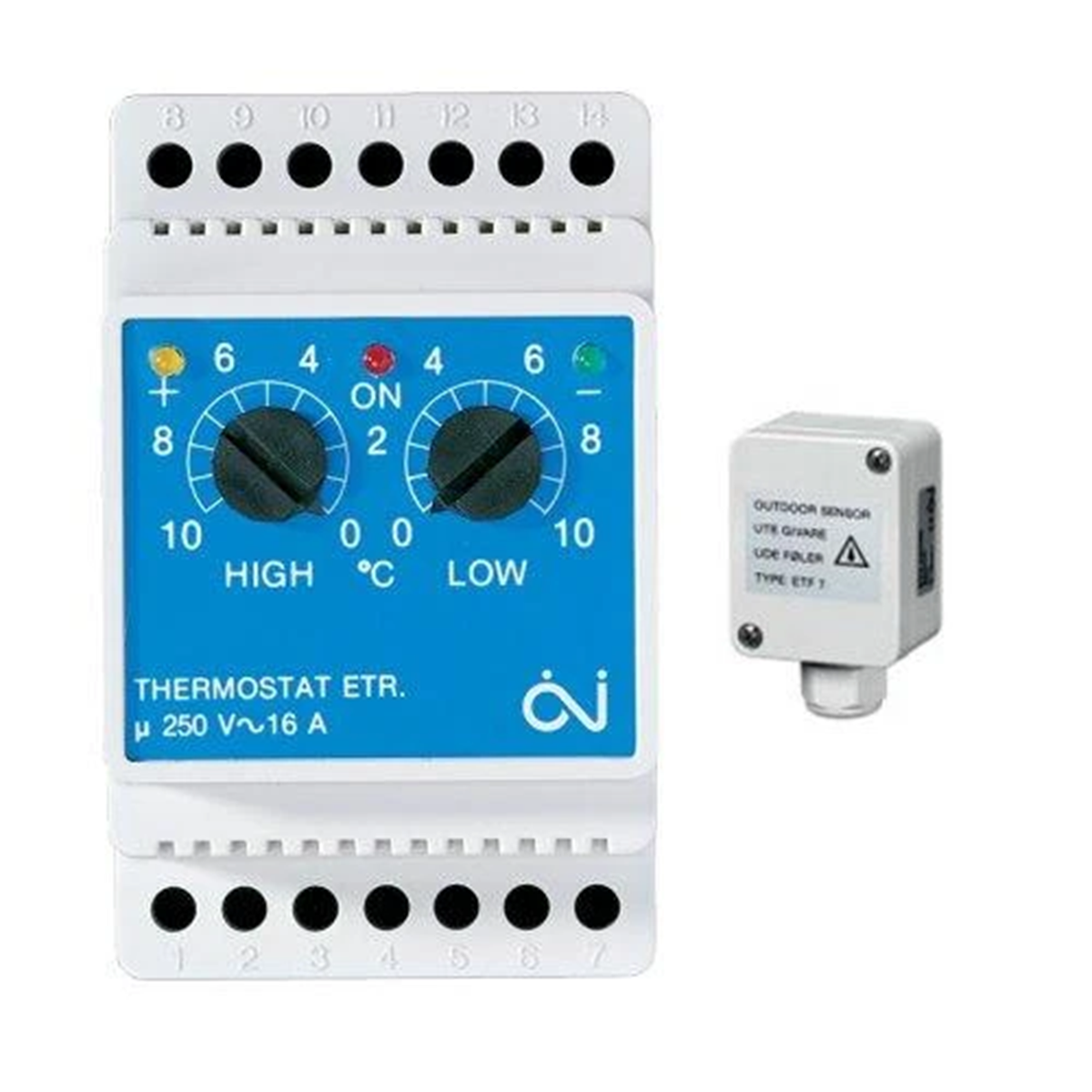

Regulator for gutter anti-icing systems complete with temperature sensor ETR/F-1447A

local index:
GGC011FENI
Catalog No:
ETR/F-1447A
EAN code:
5703502650197
Power [VA]: 3
Rated voltage [V]: 230
PE terminal cross-section: Lack
Price:
135,28 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Description/Characteristics:
The LTR thermostat is a two-state electronic regulator used to control electric anti-icing systems of roofs, gutters, roof drains, etc. The thermostat is equipped with 2 knobs for setting the upper and lower operating temperature (temperature range work). The built-in relay with a 1-pole contact with a load capacity of 16A/230V AC enables direct control of 1-phase heating circuits with a power of up to 3600W (resistive load). The modular housing of the thermostat is adapted for mounting on a DIN rail. The thermostat works with an NTC sensor (ETF .44/99 series) to measure the ambient temperature.
Advantages:
Compact modular housing for DIN rail mounting
Contact with a switching capacity of 16A / 230V< br />Two temperature ranges
LED status indication.

Working range of the ETF-744 sensor
-20°C / +70°C



Technical data

  • Power [VA]
    3
  • PE terminal cross-section
    Lack
  • Working temperature [°C]
    from -20 to +50
  • Adjustment range
    -15°C to 0°C / 0°C to +10°C
  • PKWIU
    26.51.70.0
  • Rated voltage [V]
    230
  • Level of security
    IP20
  • Dimensions (length x width x height) [mm]
    86 x 52.5 x 58mm
  • contact
    16A / 230V AC
