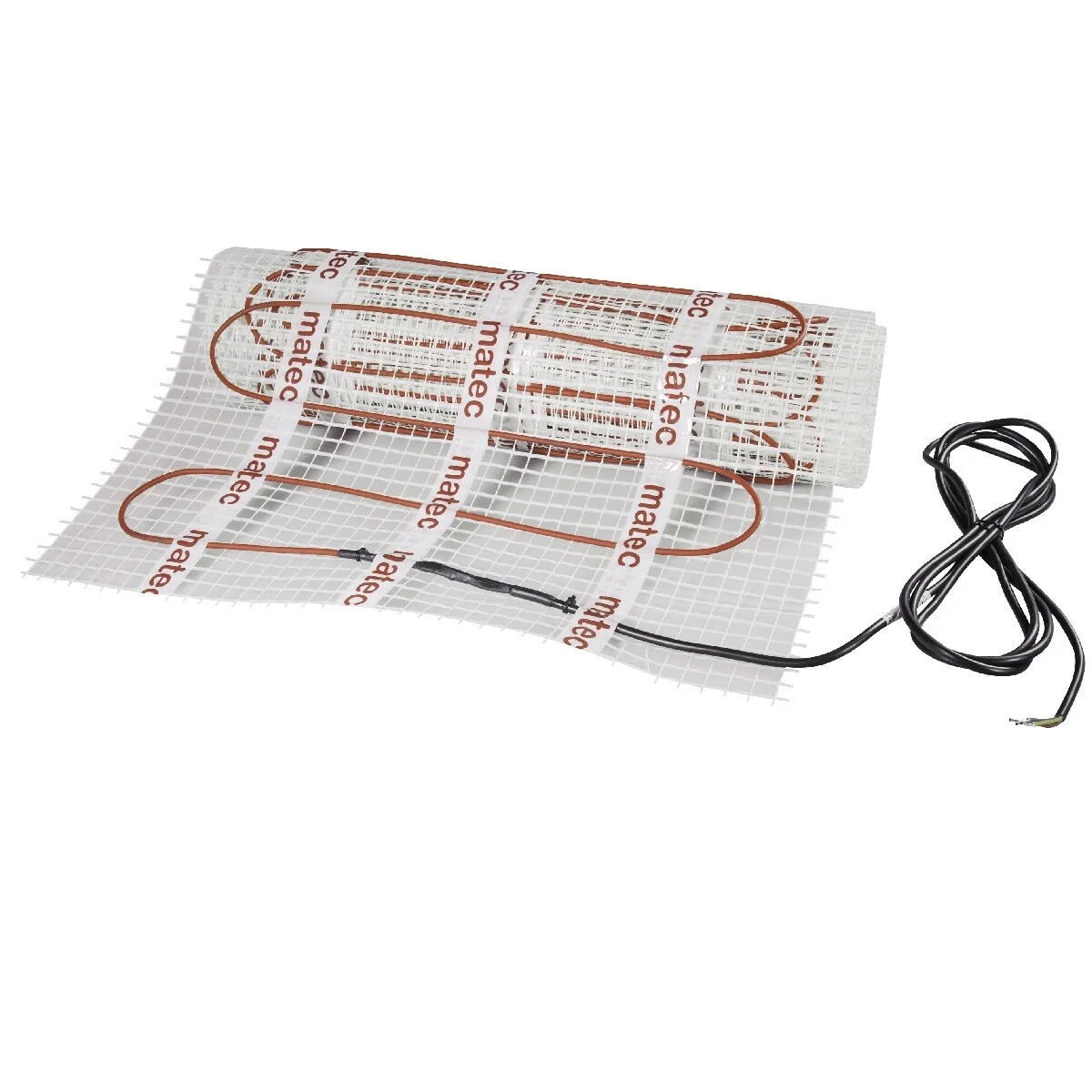

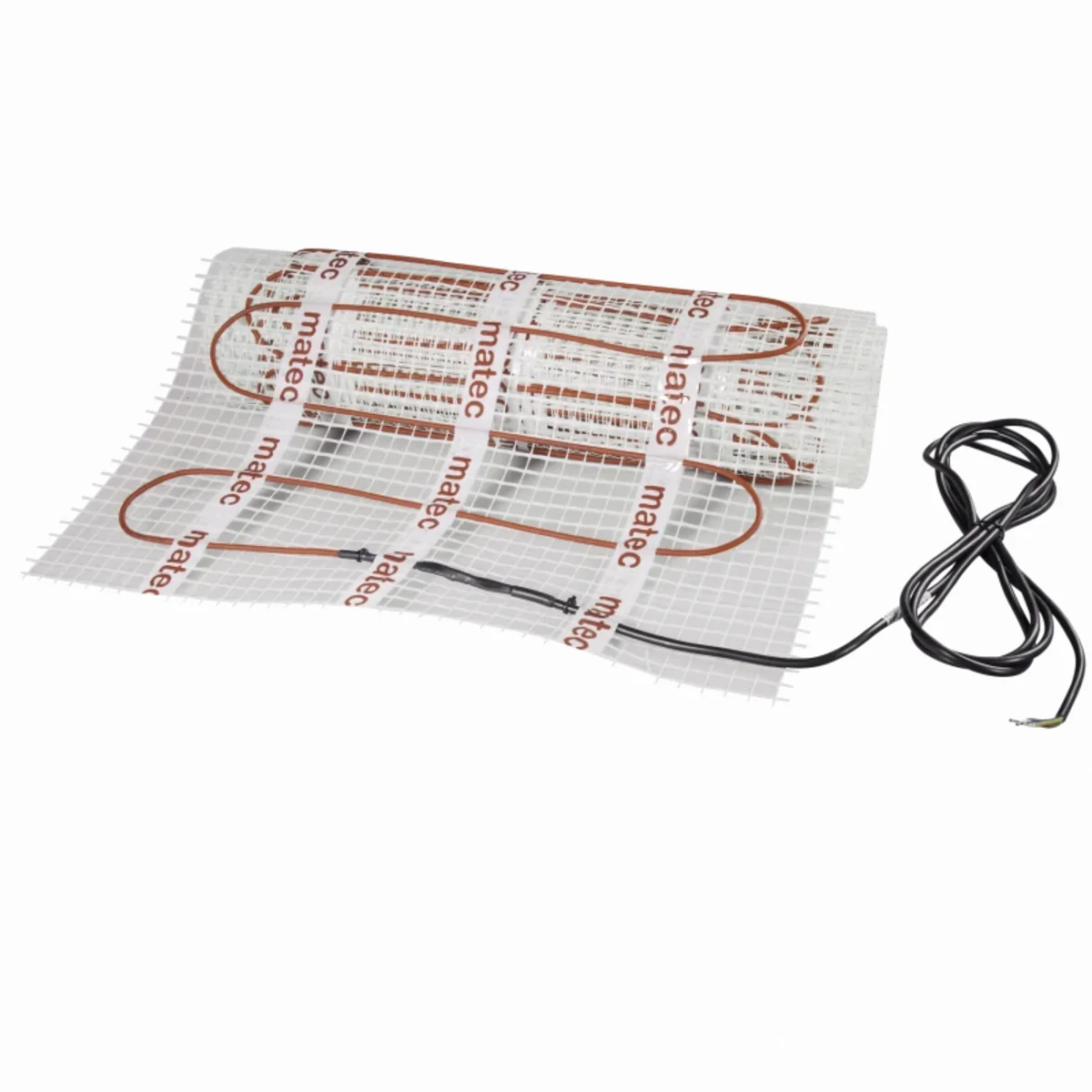

One side powered heating mat 150W/m2 TYPE: MOJ-20 MTC10000210-WUN

Product description

Heating mat for thin concrete screeds with an area of 1.5 m2. Used under surfaces made of ceramic and stone tiles, etc. One-sided power supply with H03VV-F 3G 0.75mm2 cable. Heating with a two-wire constant resistance cable. The set includes a protective conduit for the probe cable and a deepened electrical box fi 60.

Functional features of the product

• Electric thin-layer underfloor heating
• Optimum heating power 150 W/m2
• Electric box fi 60 for the temperature controller included
• Protective conduit for the probe cable included

Technical data

• Width 500 mm
• Application Thin-layer underfloor heating
• Power 150 W/m²
• Thickness 3.73 mm
• Self-adhesive No
• Surface 2 m²
• With thermostat room No
• Length 4,000 mm
• With support mesh Yes
• Heating cable fixing Glued
• Number of cold leads 1
• Cold lead length 3000 mm
• With regulator No
• Connection voltage 230 V
• Connection load 300/300 W
< li>With floor temperature sensor No
