Modular multifunction thermostat without sensor 230V 1P 2A Comfort functions EK187
local index:
GGC008HAGE
Catalog No:
EK187
EAN code:
3250612311873
Price:
155,14 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

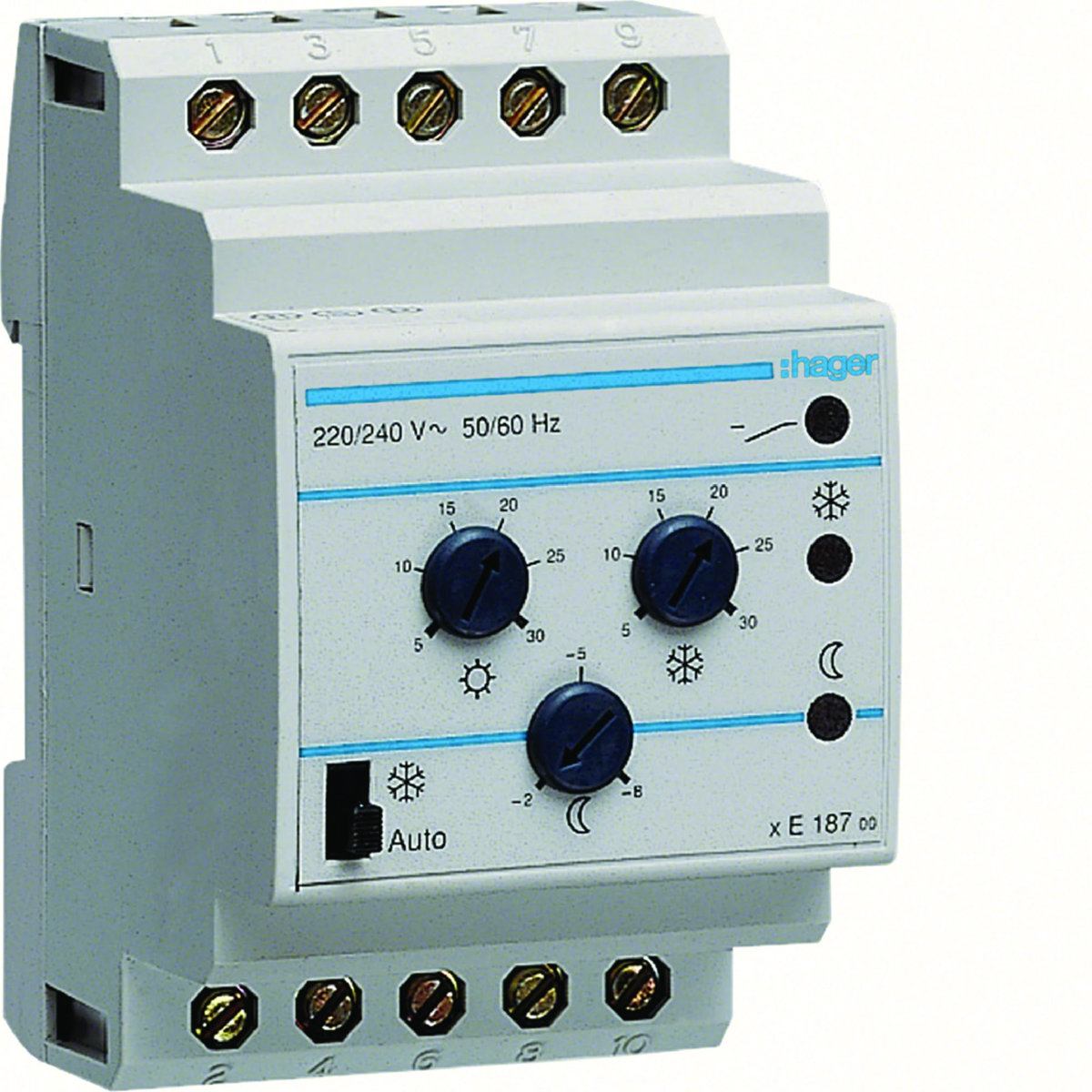

Modular multifunction thermostat without sensor 230V 1P 2A Comfort functions
Technical data
-
Rated frequency [Hz]60
-
Depth [mm]64
-
Input power [VA]1.5
-
Supply voltage [V]230
-
Switching temperature difference [K]≈ 0.2
-
power loss [W]1.5
-
Height [mm]85
-
Mechanical durability (number of cycles)200000
-
Temperature range [°C]from 5 to 30
-
Number of modules3
-
storage temperature [°C]from -20 to 70
-
Conductor cross-section (wire) [mm²]1.5 - 10
-
Length [mm]64
-
Number of contacts1
-
AC control voltage [V]230
-
Contact type1 switch
-
Level of securityIP40
-
Width [mm]52.5
-
Electrical endurance (number of cycles)100000
-
Operating temperature range [°C]from -10 to 50
-
Rated switching voltage [V]230
-
Connection typeWith screw terminals
-
Wire cross-section (cord) [mm²]1 - 6
-
PKWIU26.51.70.0
Other technical data
-
ModelAnalogue
-
Rated voltage230 ... 230 V
-
Number of channels1
-
24 h programNo
-
Shortest temperature phase1 min
-
Number of basic programs standard0
-
Input for time programNo
-
Adjustment range set-back0 ... 28 °C
-
Autonomy0 h
-
Operation mode switchYes
-
Contact typeChange-over contact
-
Nominal switching current at 230 V, not potential free2 A
-
Width in number of modular spacings3
-
Class of the temperature controlI
-
Sensor typeRemote sensor
-
Rated frequency50 ... 60 Hz
-
Text guidance in displayNo
-
Weekly programNo
-
Number of memory locations0
-
Holiday programNo
-
Adjustment range comfort5 ... 30 °C
-
Adjustment range frost protection5 ... 30 °C
-
Automatic switching summer-/winter timeNo
-
Switching preselectionNo
-
Nominal switching current at 250 V, potential free2 A
-
Degree of protection (IP)IP40
-
Assembly depth64 mm
-
Standby power consumption (solstandby)1.5 W
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 48 pcs. | 1152 pcs. |
| Weight (kg) | 0,245 | 0,246 | 12,230 | 316,520 |
| Width (m) | 0,100 | 0,080 | 0,315 | 0,800 |
| Length (m) | 0,080 | 0,057 | 0,238 | 1,102 |
| Depth (m) | 0,060 | 0,095 | 0,362 | 1,200 |
