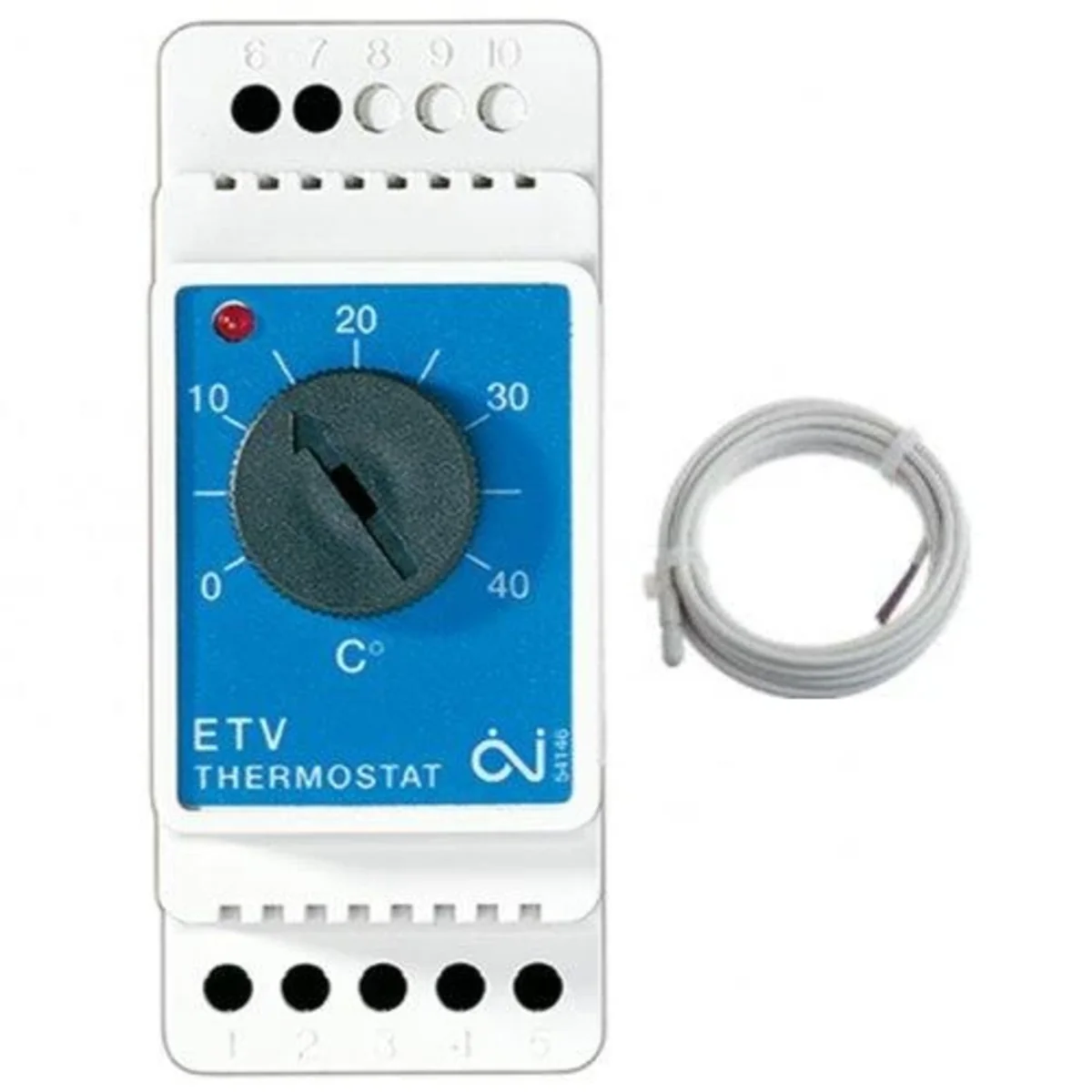

LTV-1 thermostat with cable sensor ETV-1991

local index:
GGC062FENI
Catalog No:
ETV-1991
EAN code:
5703502520964
Hysteresis: 0.4°C
Power [W]: 3
Rated voltage [V]: 230
Price:
78,78 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Description/Characteristics:
The LTV thermostat is a two-state electronic regulator used to control electric heating systems. The relay with a 1-pole contact with a load capacity of 16A/230V AC enables direct control of 1-phase heating circuits with a power of up to 3600W (resistive load). The modular housing of the thermostat is adapted for mounting on a DIN rail (2 standard modules). The thermostat cooperates with a group of NTC sensors (ETF.44/99 or ETF.22 series) enabling temperature measurement in various environmental conditions.

Advantages:
Compact modular housing for DIN rail mounting
Contact with switching capacity 16A / 230V
Temperature reduction function
LED signaling

Maximum sensor temperature [°C]+70°C (ETF .44/99) or +120°C (ETF .22) )
Minimum sensor temperature [°C]-20°C (ETF .44/99) or -40°C (ETF .22)
Temperature drop (from external clock)Constant 5°C



Technical data

  • Hysteresis
    0.4°C
  • Rated voltage [V]
    230
  • Level of security
    IP20
  • Dimensions (length x width x height) [mm]
    86 x 36 x 58mm
  • contact
    SPST 16A / 230V AC
  • Power [W]
    3
  • PE terminal cross-section
    Lack
  • Working temperature [°C]
    From 0 to +50
  • Adjustment range
    From 0°C to +40°C
  • PKWIU
    26.51.70.0
