COMFORT Heating mat 1200 W 1-sided powered 100 W/m2 LDTS 100/11,8 SET

Indice locale:
GGM017FENI
Numero di catalogo:
LDTS 100/11,8 SET
Codice EAN:
5907707070716
Length [m]: 3
Maximum temperature resistance of the heating cable [°C]: +70°C
Power [W]: 1200
Prezzo:
1107,00 zł
gross / pezzi
(inclusa IVA 23%)
369,00 zł gross/metro
fino a 2 settimane
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

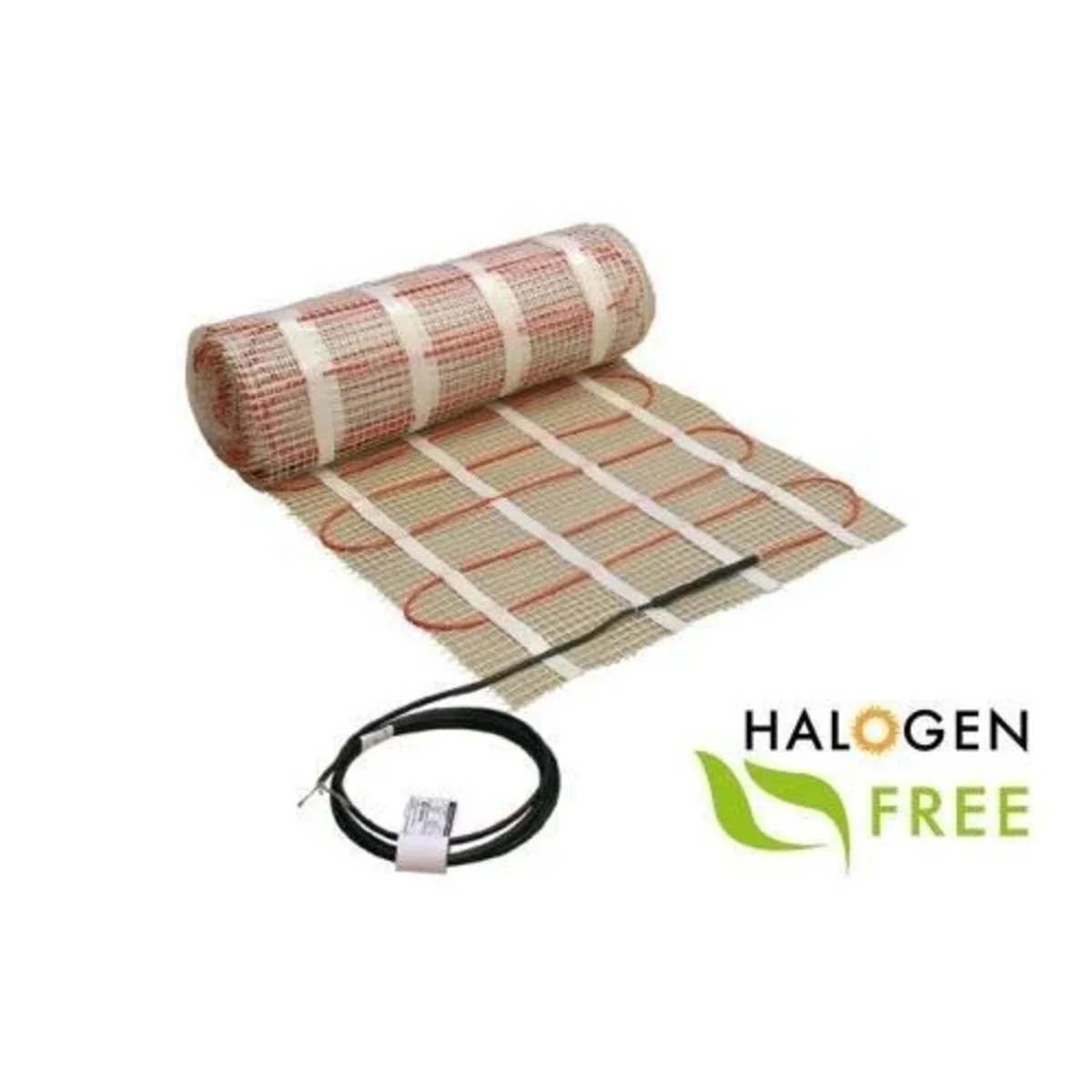

Single-sided heating mat CM-1. The base of the mat is a glass fiber mesh, to which a heating cable with the following structure is attached with tapes:
1. two heating wires, resistance
2. teflon basic insulation (AFLON)
3. protective screen made of 14 tinned copper wires
4. outer cover made of polypropylene/polyethylene LDPE 4
From the bottom, the mat's mesh is equipped with self-adhesive tapes enabling its attachment to a well-primed surface.
Advantages:
- Self-adhesive
-  Available power densities 160 W/m2 (fast floor heating) or 100 W/m2 (basic heating) and reduces the amount of electromagnetic radiation
- The heating cable of the mat is shielded along its entire length
- Teflon insulation of the heating cores.
- A wide range of the offer – for areas from 0.5 m to 17.9 m

Dati tecnici

  • Length [m]
    3
  • Power [W]
    1200
  • Area [m2]
    11.8
  • Mat width
    0.5m
  • Dimensions [m]
    0.5 x 23.7
  • Maximum temperature resistance of the heating cable [°C]
    +70°C
  • Heating power
    100W/m2
  • Level of security
    IP67
  • External diameter of the heating cable
    from 3.0mm to 4.0mm
  • PKWIU
    27.51.29.0
