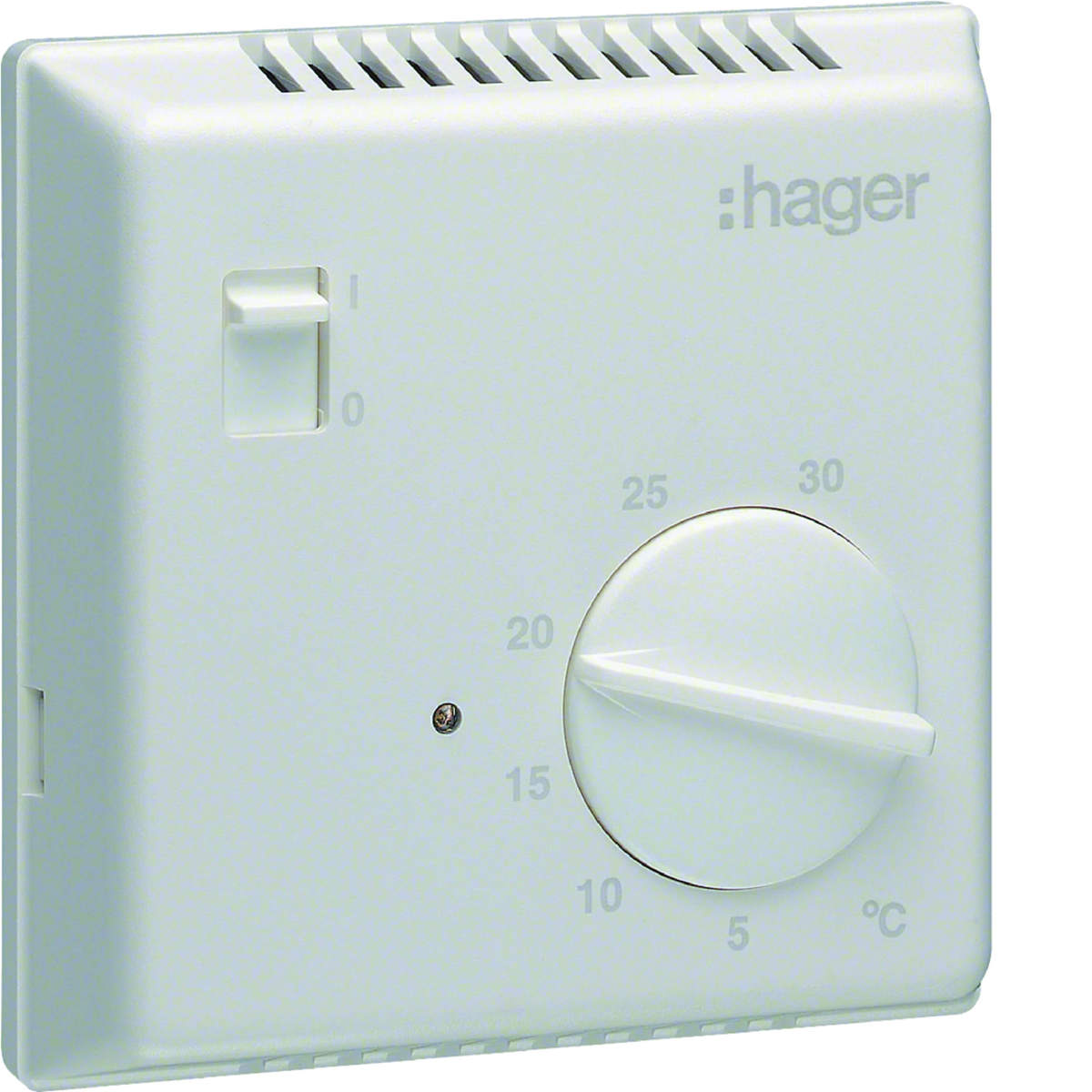

Bimetal thermostat with manual switch 230V 1P 10A EK051

local index:
GGC022HAGE
Catalog No:
EK051
EAN code:
3250612310517
Manufacturer: HAGER
Frequency [Hz]: 50/60
Number of veins: 4x2.5
Color: White
Price:
37,71 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Internal electric heating of rooms is comfort and a modern way of control, meeting the expectations of users in terms of ease of adjustment, the ability to automatically adjust the temperature level to current conditions or economical electricity consumption. Hager devices for temperature control offer many possibilities, tailored to the user's needs in terms of the type of assembly, the method of operation or the range of temperatures and additional functions.

Technical data

  • Frequency [Hz]
    50/60
  • Color
    White
  • Maximum operating temperature [°C]
    70
  • Level of security
    IP30
  • PKWIU
    26.51.70.0
  • Number of veins
    4x2.5
  • Cable color
    White
  • Temperature regulation
    5-30
  • Breaking capacity
    AC1

Other technical data

  • Model
    On/Off
  • Thermal feedback
    Series
  • Differential value
    0.5 ... 0.5 K
  • Mounting method
    Surface mounted/recessed mounted
  • Height
    82 mm
  • Depth
    30 mm
  • Type of power supply
    230 V AC
  • Control characteristic
    Other
  • Temperature readable
    No
  • Degree of protection (IP)
    IP30
  • Width
    82 mm
  • Class of the temperature control
    I

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 48 pcs. 1152 pcs.
Weight (kg) 0,114 0,115 5,885 164,240
Width (m) 0,032 0,085 0,315 0,800
Length (m) 0,082 0,055 0,235 1,050
Depth (m) 0,082 0,095 0,360 1,200
