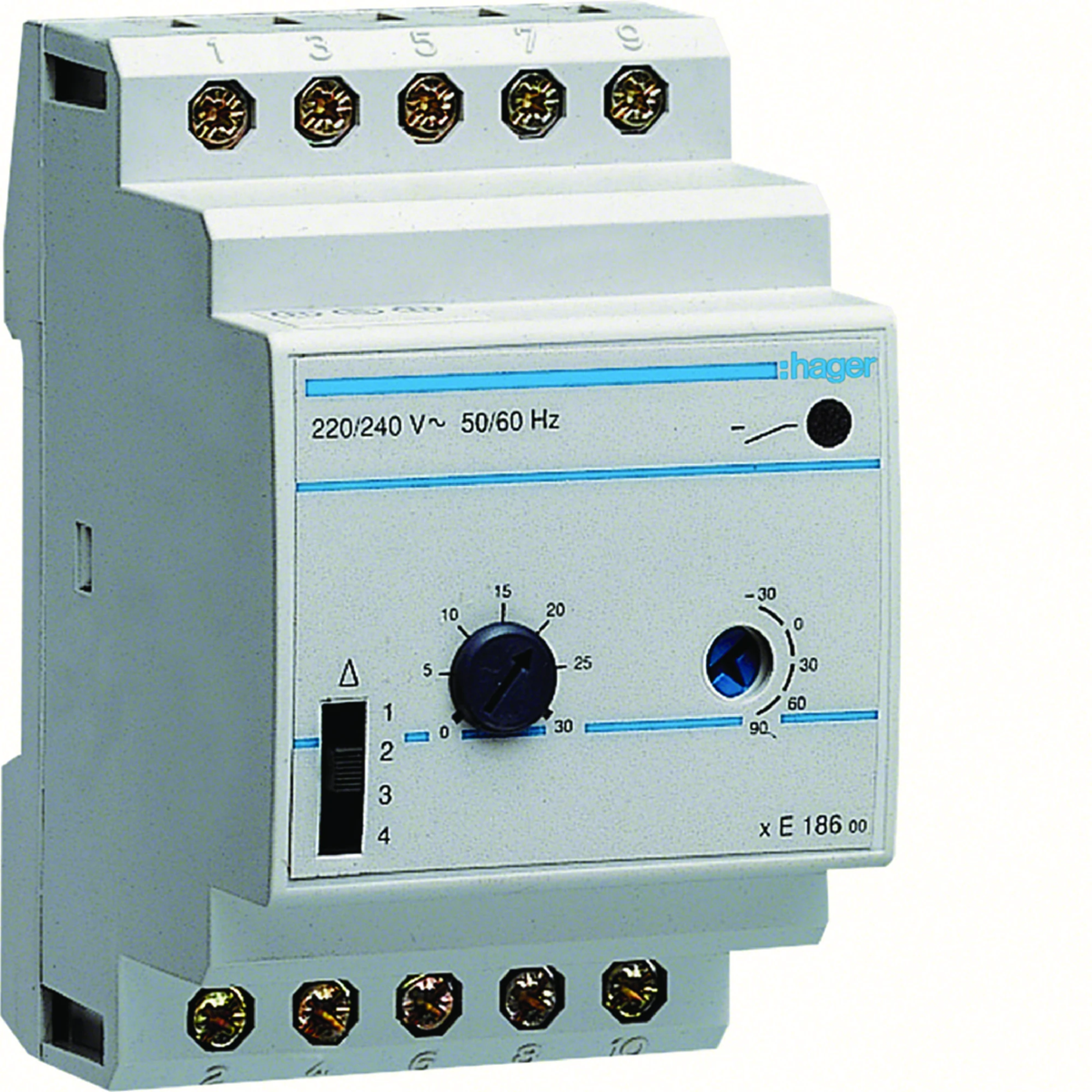

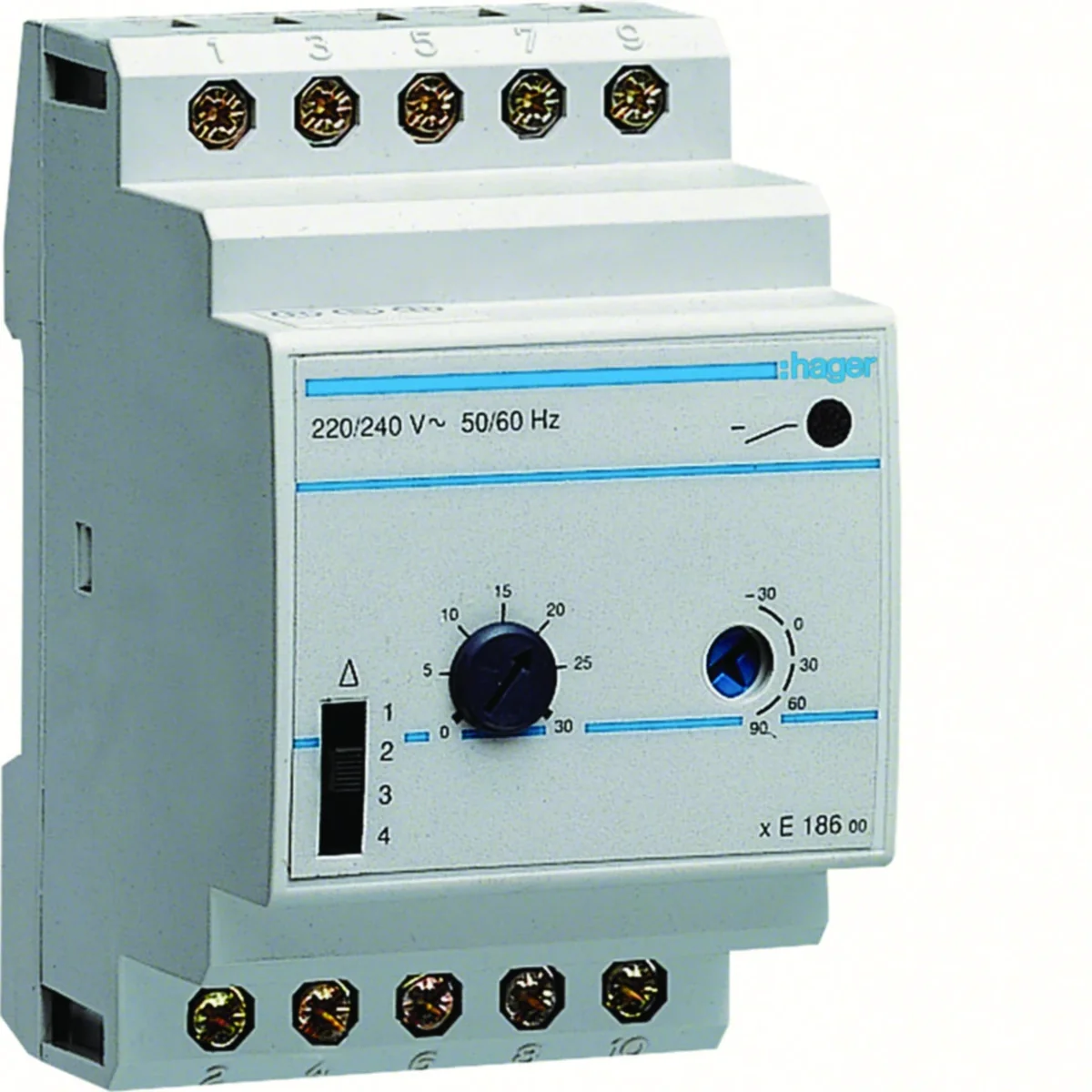

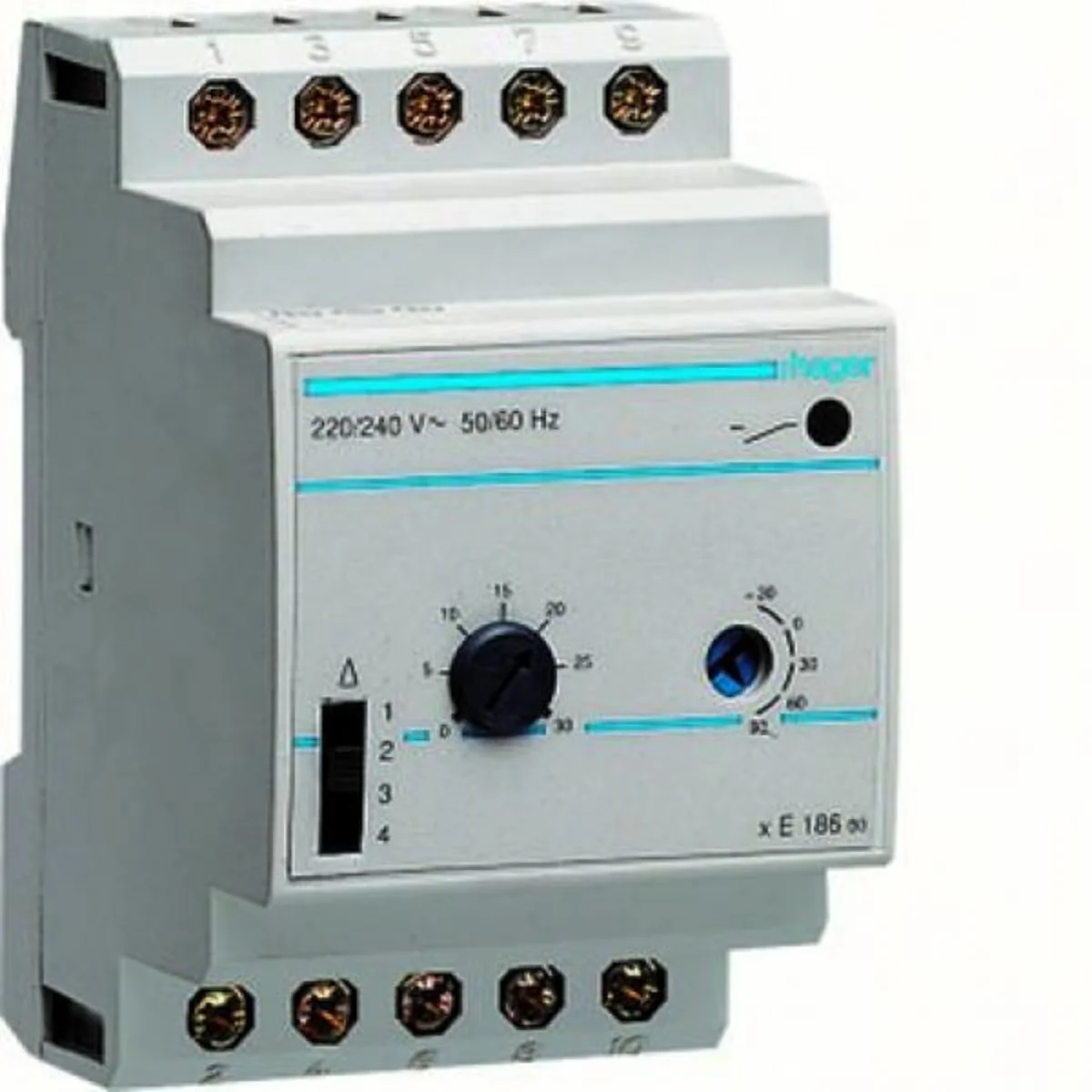

1P/2A multi range thermostat EK186
local index:
GGC010HAGE
Catalog No:
EK186
EAN code:
3250612311866
Price:
155,71 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Multifunctional thermostat (supplied without sensor) for connection with sensor EK081, EK083, EK086
4 setting ranges
-30°C to 0°C
0°C to +30°C
+30°C to +60°C
+60°C to +90°C
4 setting ranges
-30°C to 0°C
0°C to +30°C
+30°C to +60°C
+60°C to +90°C
Technical data
-
Number of modules3
-
Rated current [A]2
-
Temperature range [°C]-120
-
Number of modules3
-
Input voltage [V]250
-
Level of securityIP40
-
Breaking capacityAC1
-
PKWIU26.51.70.0
Other technical data
-
ModelAnalogue
-
Rated voltage230 ... 230 V
-
Number of channels1
-
24 h programNo
-
Shortest temperature phase1 min
-
Number of basic programs standard0
-
Input for time programNo
-
Adjustment range frost protection-30 ... 90 °C
-
Automatic switching summer-/winter timeNo
-
Switching preselectionNo
-
Nominal switching current at 250 V, potential free2 A
-
Degree of protection (IP)IP40
-
Assembly depth63 mm
-
Standby power consumption (solstandby)1.5 W
-
Sensor typeRemote sensor
-
Rated frequency50 ... 60 Hz
-
Text guidance in displayNo
-
Weekly programNo
-
Number of memory locations0
-
Holiday programNo
-
Adjustment range comfort5 ... 30 °C
-
Autonomy0 h
-
Operation mode switchYes
-
Contact typeChange-over contact
-
Nominal switching current at 230 V, not potential free2 A
-
Width in number of modular spacings3
-
Class of the temperature controlI
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
Tax identification number6460015532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta |
| Quantity | 1 pcs. | 48 pcs. | 1152 pcs. |
| Weight (kg) | 0,255 | 12,775 | 329,600 |
| Width (m) | 0,080 | 0,315 | 0,800 |
| Length (m) | 0,060 | 0,240 | 1,126 |
| Depth (m) | 0,090 | 0,365 | 1,200 |
