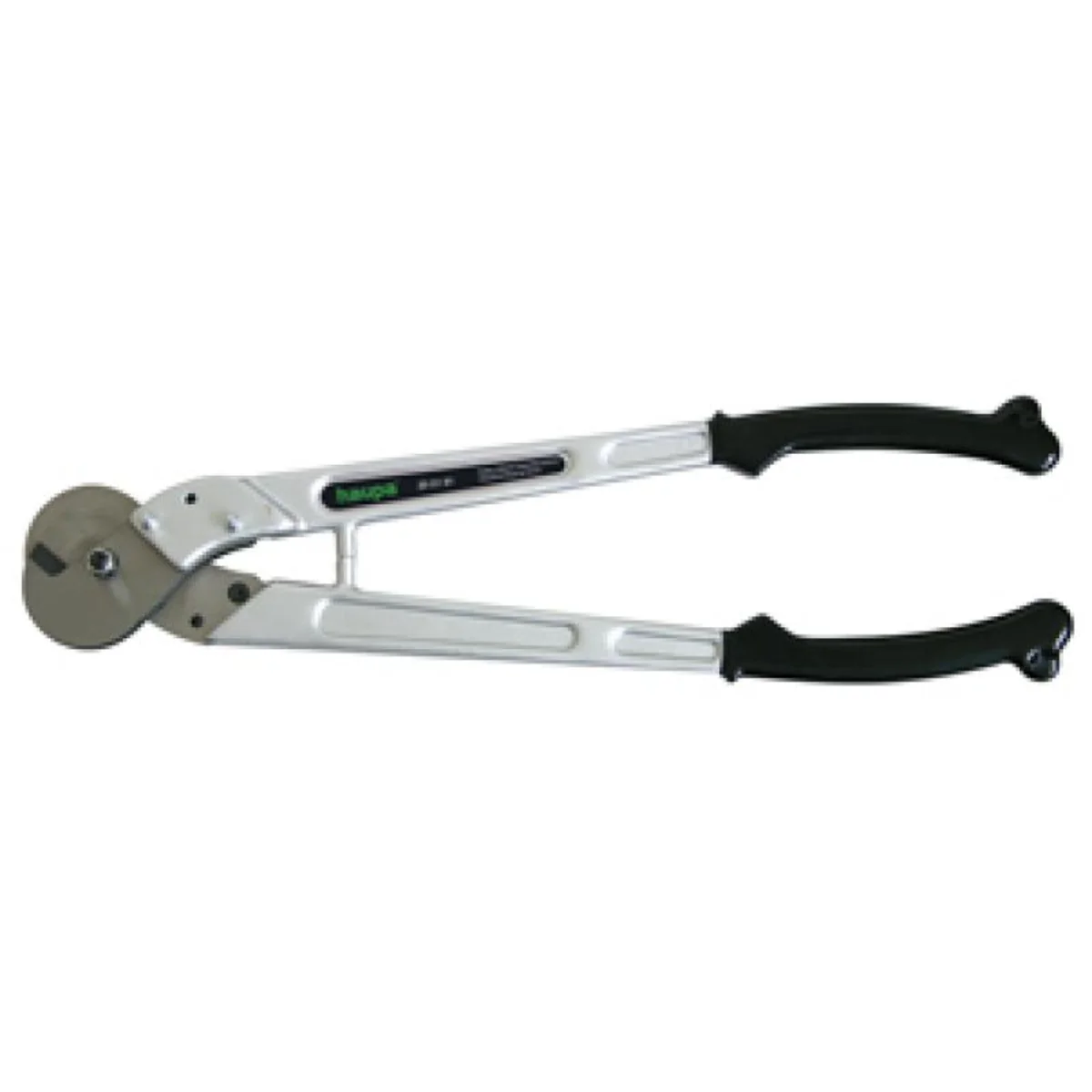

Wire rope cutter 14 mm 600 mm 200181

local index:
NNR826HAUP
Catalog No:
200181
EAN code:
4011923460693
Manufacturer: HAUPA
Tool: Shears
Price:
220,54 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Steel rope cutter:

• Cu and Al cable 150mm²
• ACSR Ø 14mm
• massive Ø 9mm
• also suitable for cables and ferrous rods
• special cutting geometry prevents splitting of the wire rope
• suitable for cutting overhead ropes with strain relief wire
• angled cutting blades allow cutting individual rope strands
• optimal transfer for high cutting performance
• replaceable knife head

Technical data

  • Tool
    Shears

Other technical data

  • Construction/operation
    Mechanic one hand
  • Max. cable cross section
    150 mm²
  • Suitable for fine strand conductors
    Yes
  • Suitable for steel wire braiding
    Yes
  • Replaceable cutting head
    No
  • With strip function
    No
  • Isolation protection 1000 V
    No
  • With impact protection
    No
  • Suitable for max. cable diameter
    14 mm
  • Suitable for stranded conductors
    Yes
  • Suitable for solid conductors
    Yes
  • Total length
    700 mm
  • Cutting jaws exchangeable
    No
  • Insulated
    No
  • Grip design
    1-component
