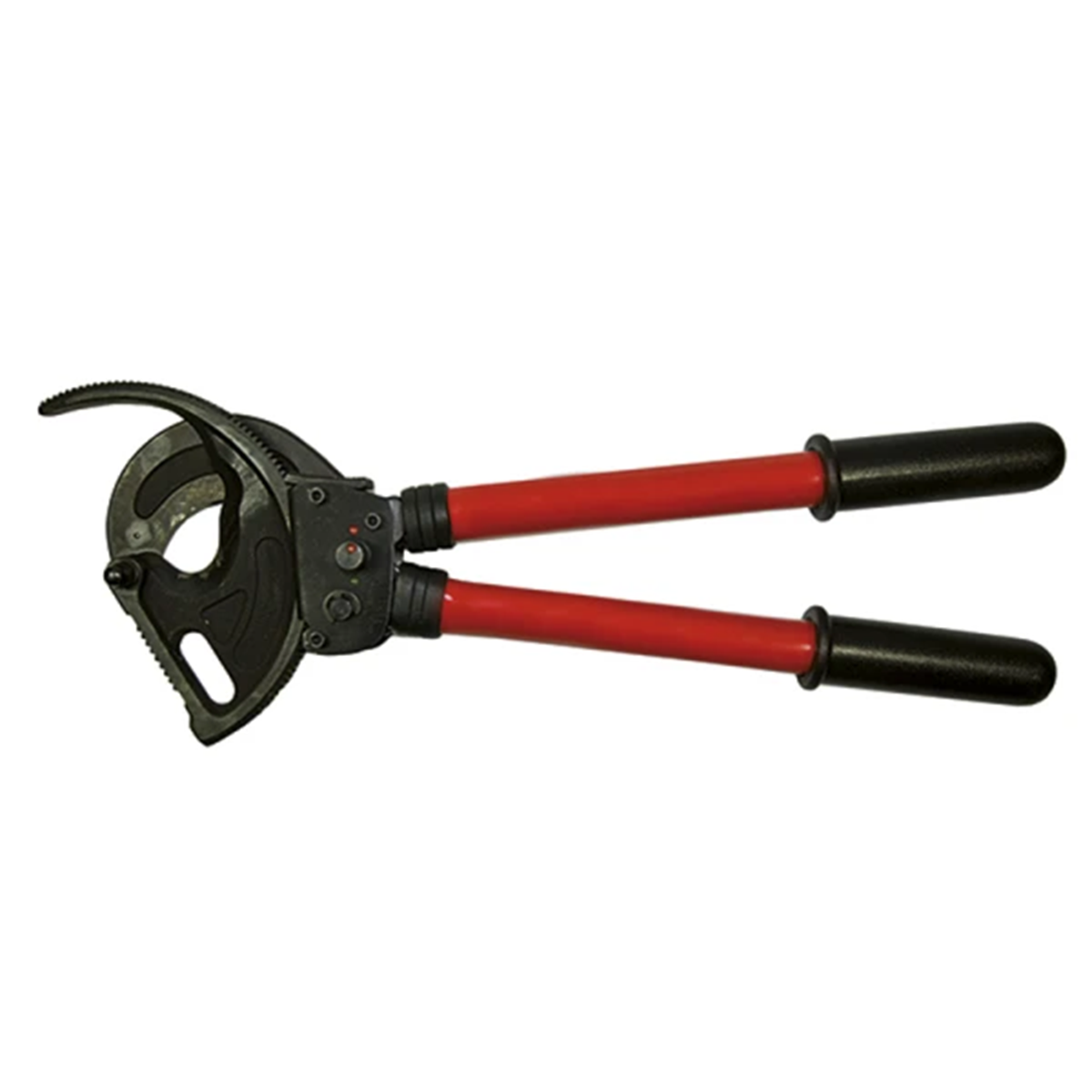

Ratchet shears 1000V 80mm 200195

local index:
NNR2N4HAUP
Catalog No:
200195
EAN code:
4011923570040
Manufacturer: HAUPA
Weight [g]: 3150
cross section [mm²]: 1000
cross-section [mm]: 80
Price:
3111,76 €
gross / pcs.
(including VAT 23%)
987,86 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Two-handed shears with double-bearing eccentric, extremely resistant to breakage of the cutting plates and toothing. They cut multi-turn and fine-wire Cu and Al cables with a diameter of 62 mm to 80 mm, they also cut cables with a thin, soft steel sheet braid and cables reinforced with steel sheet, not intended for hardened sheet.

Technical data

  • Weight [g]
    3150
  • cross-section [mm]
    80
  • cross section [mm²]
    1000

Other technical data

  • Construction/operation
    Ratchet model mechanical
  • Max. cable cross section
    1000 mm²
  • Suitable for fine strand conductors
    Yes
  • Suitable for steel wire braiding
    Yes
  • Cutting jaws exchangeable
    No
  • Insulated
    Yes
  • Grip design
    1-component
  • Suitable for max. cable diameter
    80 mm
  • Suitable for stranded conductors
    Yes
  • Suitable for solid conductors
    Yes
  • Replaceable cutting head
    No
  • With strip function
    No
  • Isolation protection 1000 V
    Yes
  • With impact protection
    No
