Flexible clamp F-3A circumference 45cm WACEGF3AOKR

Name: Flexible clamp F-3A circumference 45cm
Brand: SONEL
SKU: NNR006SONE
Price: 1020.10 PLN

local index:

NNR006SONE

Catalog No:

WACEGF3AOKR

EAN code:

5907624024618

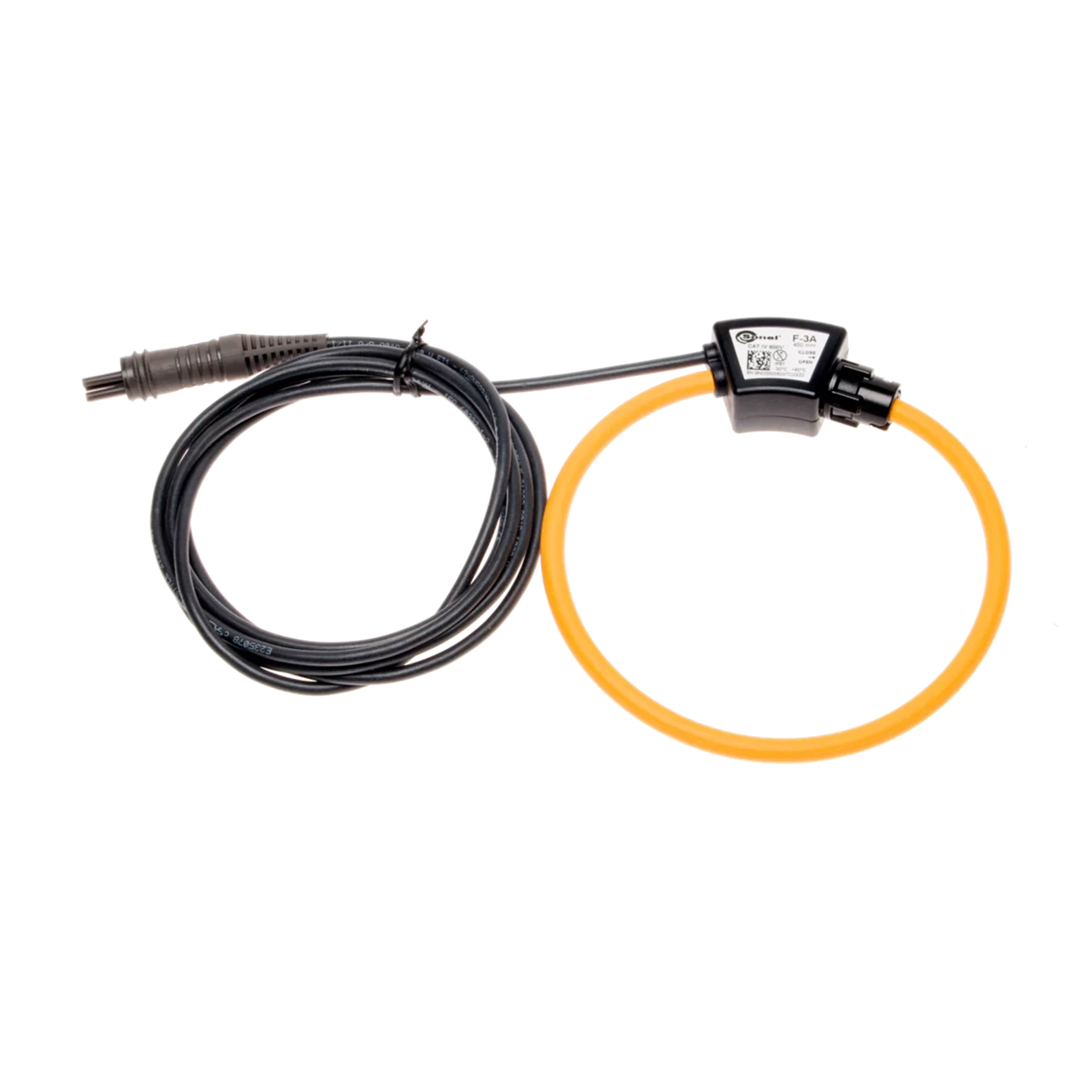

Click on the photo to enlarge

Manufacturer: SONEL

Length [m]: 2.2

Rated voltage [V]: 600

circumference [mm]: 450

See full description

Price:

1020,10 zł

gross / pcs.

(including VAT 23%)

463,68 zł gross/m.

Delivery in 3h

up to a week (working days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer's description Manufacturer details

Product description

Flexible measuring clamp F-3A. The circumference is 45cm. The rated AC current can reach 3000A. The clamp is equipped with a 2.2 m cable. Measurement category: IV 600V. For PQM, MRU-200, MPI-530 meters.

Technical data

Length [m]

2.2
circumference [mm]

450

Rated voltage [V]

600
Rated current [A]

3000

Manufacturer's description

Flexible current coil, also known as a Rogowski coil, is useful for testing objects, on which hard clamps cannot be attached. In the measurements of alternating current, flexible coils are connected directly to the meter, whereas for earth resistance testing - the operators additionally use ERP-1 adapter.

With the 5-pin termination, they are connected directly to the power quality analyzers. The rated current of this product is 3000 A and the diameter of the enclosed conductor is maximum 120 mm.
