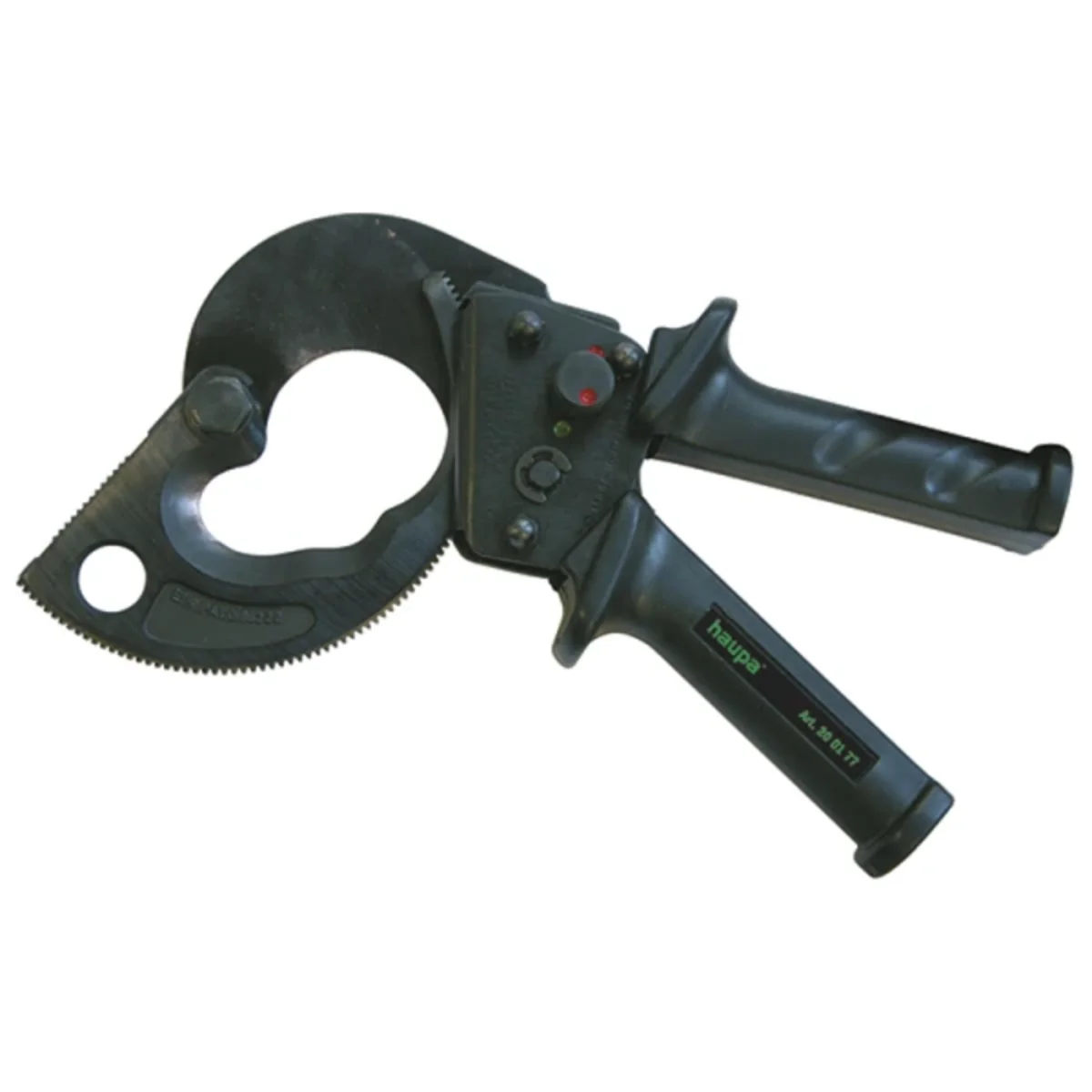

Cable shears with 45 mm ratchet gear 200177

local index:
NNR3P9HAUP
Catalog No:
200177
EAN code:
4011923460068
Manufacturer: HAUPA
Length [mm]: 260
Weight [g]: 900
Telecommunication cable cutting range: 45
Price:
672,83 €
gross / pcs.
(including VAT 23%)
747,59 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Extremely easy running ratchet cable shears for everyday
use for cutting cables up to 45 mm in diameter. A tool with exceptional durability. Can be unlocked in any position.

Technical data

  • Length [mm]
    260
  • Telecommunication cable cutting range
    45
  • Sector Cu/Al cable cutting range
    240; 45
  • Weight [g]
    900
  • Cutting range Cu wire with fine wire
    300; 45
  • Cutting range multi-core Cu/Al cable
    300; 45

Other technical data

  • Construction/operation
    Mechanic one hand
  • Max. cable cross section
    300 mm²
  • Suitable for fine strand conductors
    Yes
  • Suitable for steel wire braiding
    No
  • Replaceable cutting head
    No
  • With strip function
    No
  • Isolation protection 1000 V
    No
  • With impact protection
    No
  • Suitable for max. cable diameter
    45 mm
  • Suitable for stranded conductors
    Yes
  • Suitable for solid conductors
    Yes
  • Total length
    260 mm
  • Cutting jaws exchangeable
    No
  • Insulated
    Yes
  • Grip design
    1-component
