8.5 mm HSS twist drill bit 230170

local index:
NNT019HAUP
Catalog No:
230170
EAN code:
4011923079192
Manufacturer: HAUPA
Length [mm]: 117
Diameter [mm]: 8.5
Handle: M10
Price:
6,56 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

DIN 338/HSS twist drill type N. Blade angle 118°, helix angle 25 - 35°, tolerance Ø h 8, high-speed steel with increased cutting efficiency; for drilling alloyed and non-alloyed steel and cast steel up to approx. 900 N/mm², gray cast iron, ductile cast iron, sintered iron, nickel-plated brass, graphite, short-chipping aluminum alloys, die casting, bronze, malleable brass.

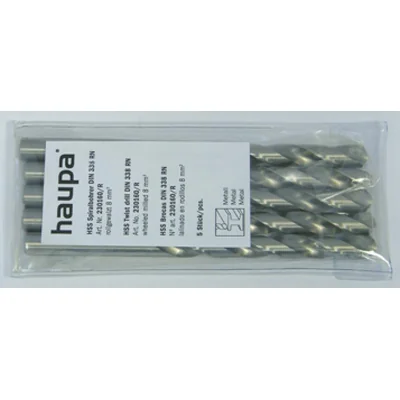

Unit packaging - blister:
0.5 - 3.0 mm; 1 pack = 3 pcs
3.2 - 6.0mm; 1 pack = 2 pcs
6.5 - 13.0 mm; 1 pack = 1 piece

Technical data

  • Length [mm]
    117
  • Handle
    M10
  • Diameter [mm]
    8.5

Other technical data

  • Cutting edge length
    75 mm
  • Holding system
    Cylindrical plug-in axle
  • Total length
    117 mm
