US3 hanger with head 700MM FT, US 3K 70 FT 6342362

Name: US3 hanger with head 700MM FT, US 3K 70 FT
Brand: OBO BETTERMANN
SKU: TAM080OBOB
Price: 33.41 PLN
Availability: BackOrder

local index:

TAM080OBOB

Catalog No:

6342362

EAN code:

4012196224777

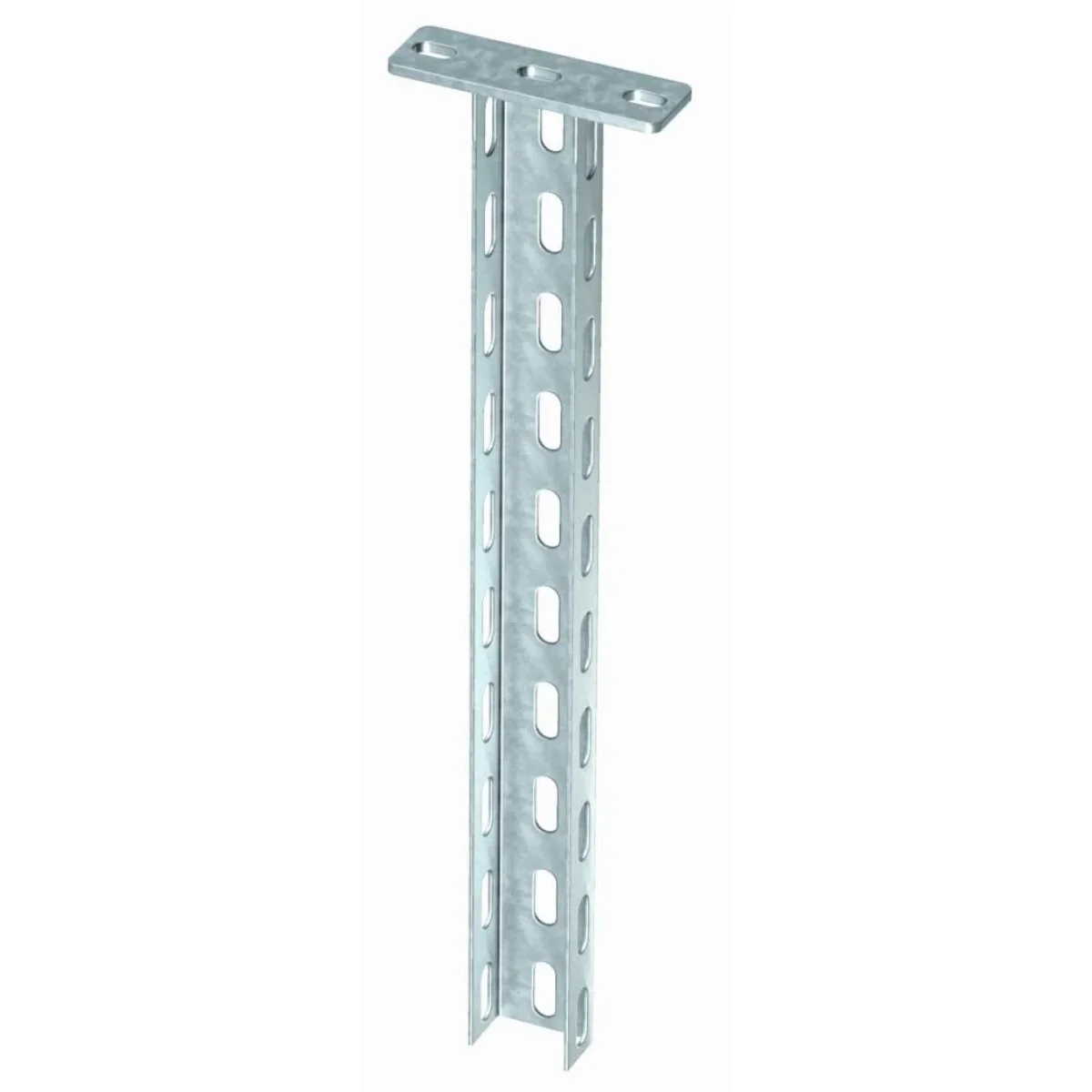

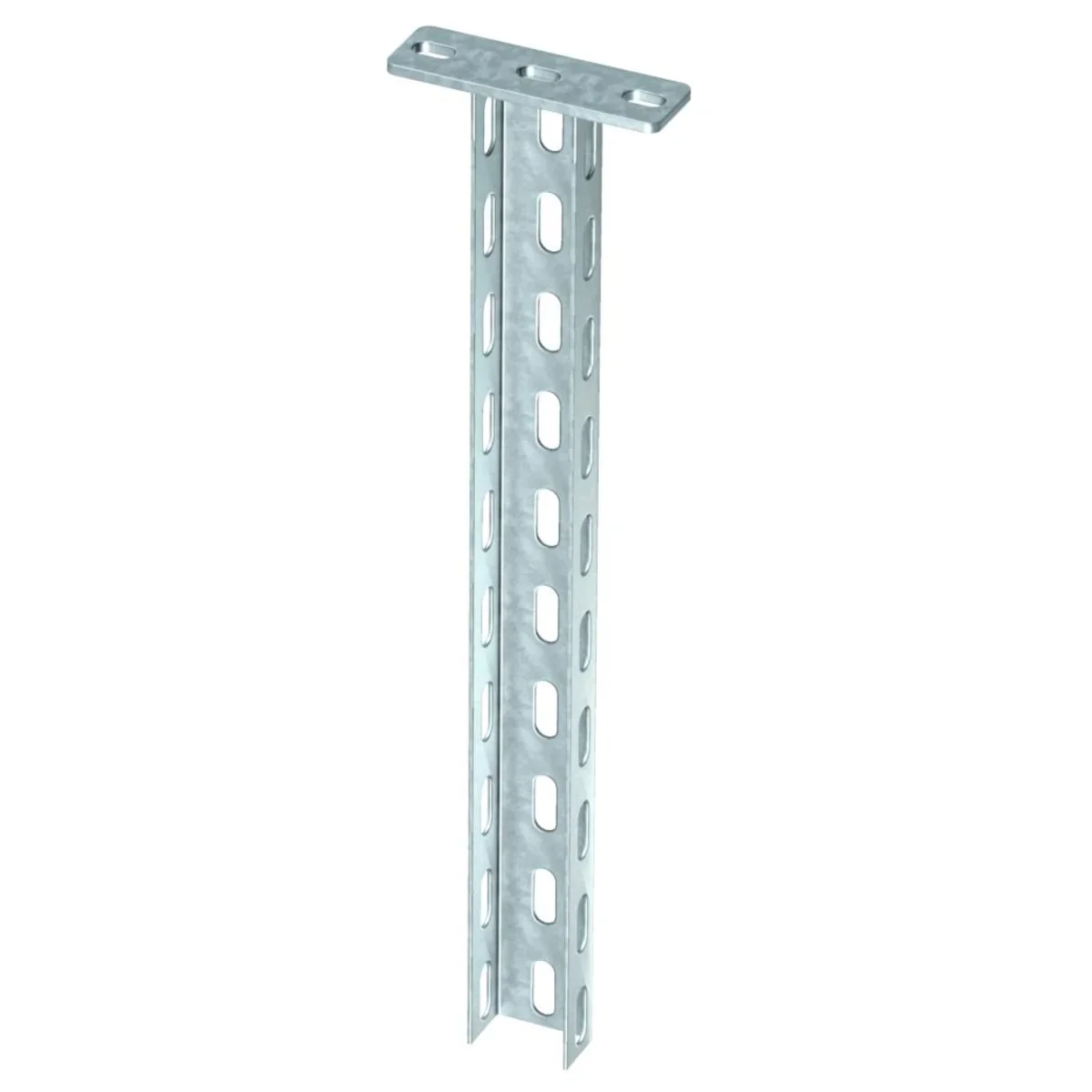

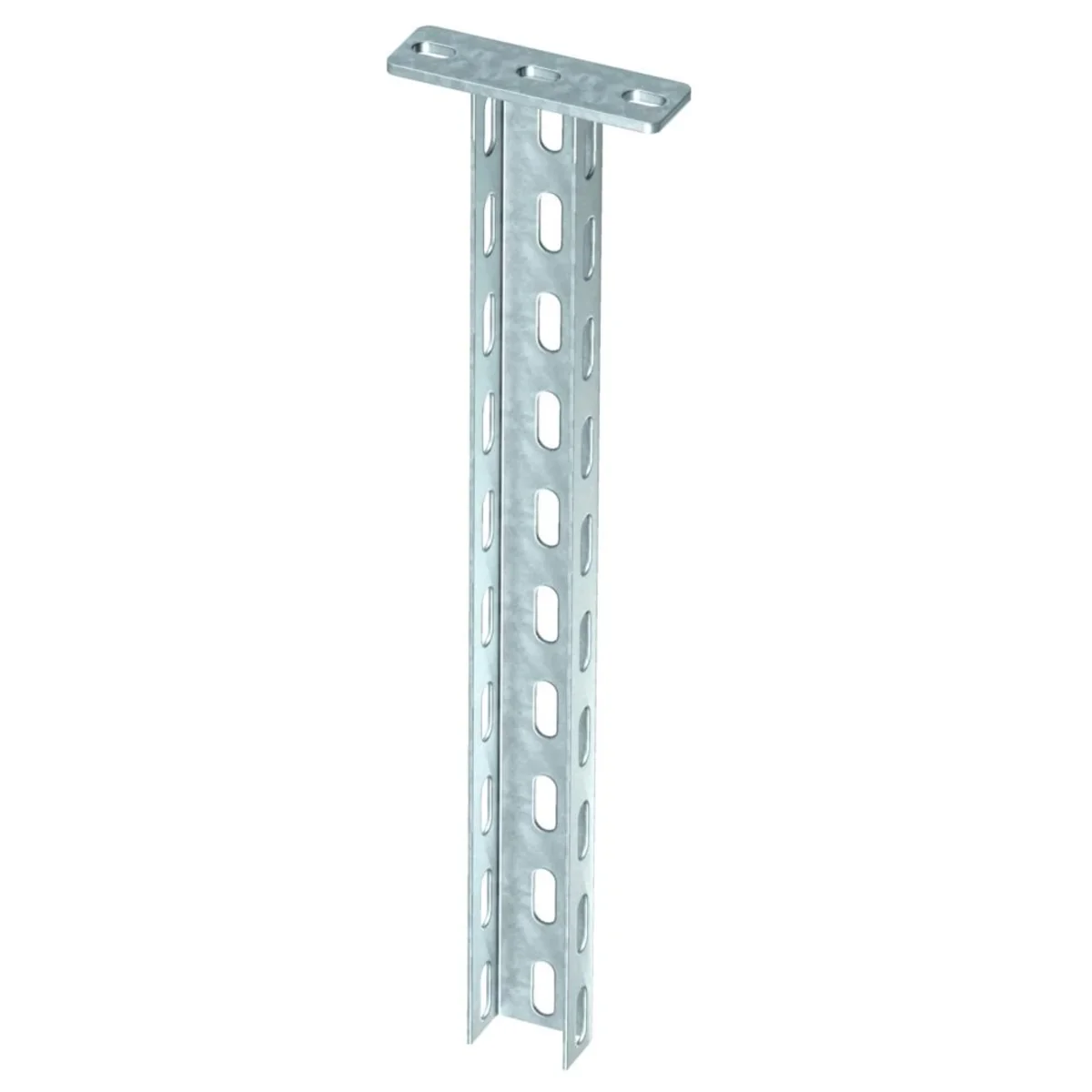

US3 hanger with head 700MM FT, US 3K 70 FT

Click on the photo to enlarge

Manufacturer: OBO BETTERMANN

Length [mm]: 700

Thickness [mm]: 2

Material: steel

See full description

Price:

33,41 zł

gross / pcs.

(including VAT 23%)

up to 2 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

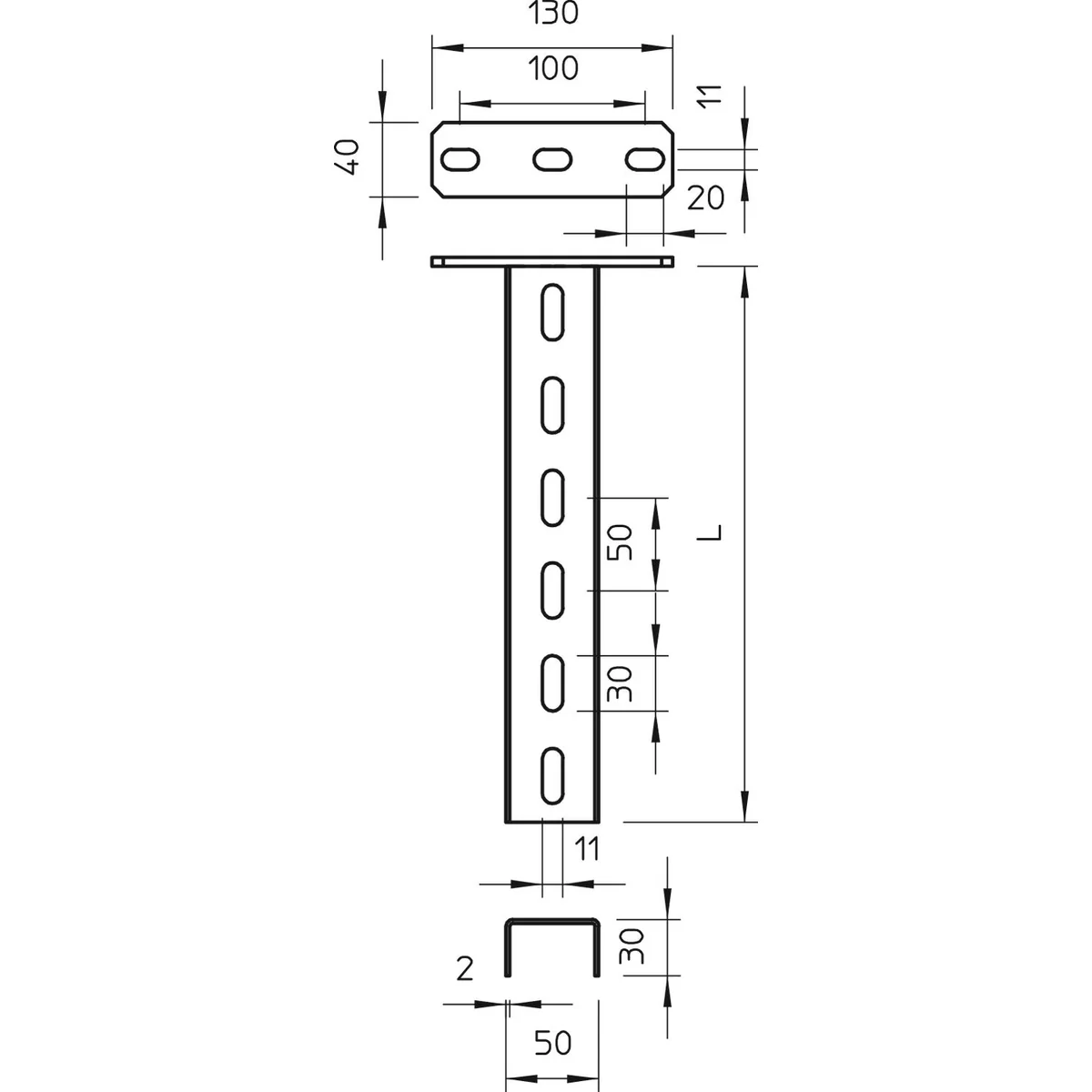

Hanger (US profile) with dimensions of 50 x 30 mm with a welded head. To be fixed on horizontal concrete ceilings and steel structures. When mounting the brackets on both sides or mounting the bracket at the end of the hanger, use a spacer type DSK 25.

Technical data

Length [mm]

700
Material

steel
Height [mm]

thirty

Thickness [mm]

2
Width [mm]

50
PKWIU

25.11.23.0

Other technical data

Length

700 mm
Profile height

30 mm
Load bearing capacity

5 kN
Material

Steel
Colour

Zinc

Profile width

50 mm
Model

U-profile
Suitable for circuit integrity

Yes
Surface protection

Hot-dip galvanized
Weight

1.2 kg

Manufacturer details

Manufacturer

OBO Bettermann Holding GmbH & Co. KG
Address

58710 Menden Hüingser Ring 52 Niemcy
E-mail

oferty@obo.pl

Bulk packaging

A kind of package	Sztuka	Paleta	Sztuka	Paleta
Quantity	1 pcs.	528 pcs.	1 pcs.	528 pcs.
Weight (kg)	1,203	675,184	1,203	675,184
Volume (m3)	0,004	0,912	0,004	0,912
Width (m)	0,130	0,800	0,130	0,800
Length (m)	0,705	1,200	0,705	1,200
Depth (m)	0,040	0,950	0,040	0,950
